Backlight unit, liquid crystal display and method of making the same

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 10365438
APP PUB NO 20180031917A1
SERIAL NO

15505156

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

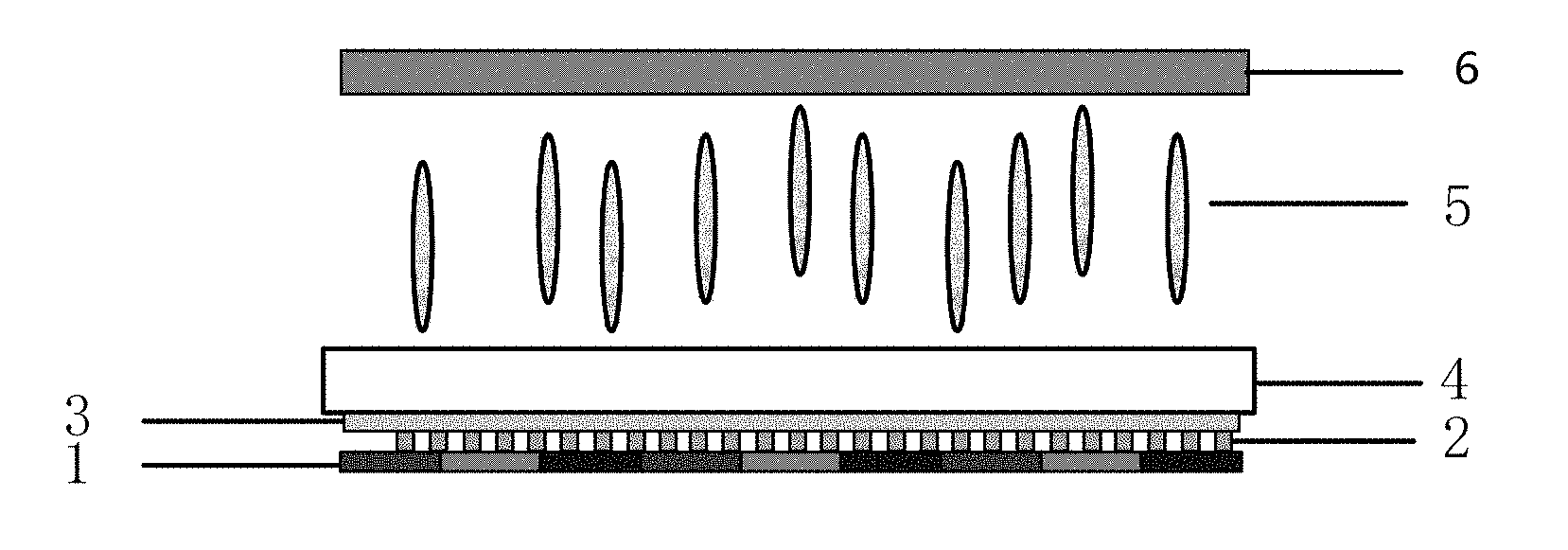

A backlight unit, a liquid crystal display and method of manufacturing the same are provided. The backlight unit includes a backlight source and a diffraction grating disposed on the backlight source. The diffraction grating is etched on the backlight source, each of monochromatic light emitting units in the backlight source corresponds to N grating patterns on the diffraction grating, where N is a natural number greater than 1.
