Lens driving device, and manufacturing method of lens driving device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 7, 2019
Grant Date -
Feb 1, 2018
app pub date -
Jul 27, 2017
filing date -
Jul 29, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

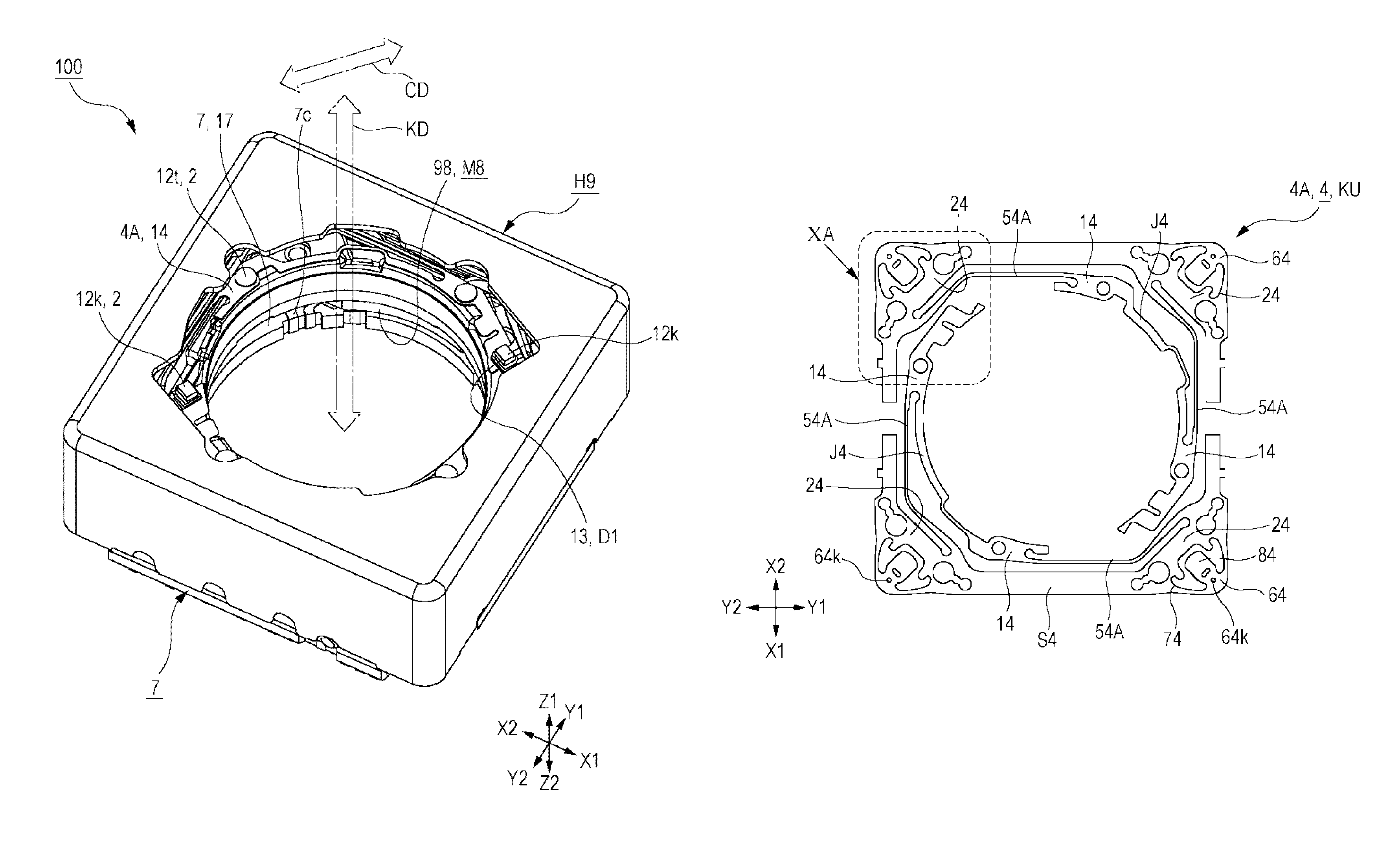

A lens driving device includes a movable unit including a lens holding member, and a suspension wire configured to support the movable unit movably in a direction intersecting an optical axis direction. The movable unit has an upper leaf spring and a fixing member. The upper leaf spring has a first portion fixed to the lens holding member, a second portion fixed to the fixing member, a wire fixing portion soldered to the suspension wire, and a linking portion provided linking between the second portion and the wire fixing portion. The linking portion has two extending portions extending from two separate positions on the second portion toward the wire fixing portion side. A plate-shaped protruding portion protruding inwards from the wire fixing portion is provided between the two extending portions.
