OPTICAL LENS ASSEMBLY AND ELECTRONIC DEVICE INCLUDING THE SAME
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jul 20, 2017
filing date -
Jul 29, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

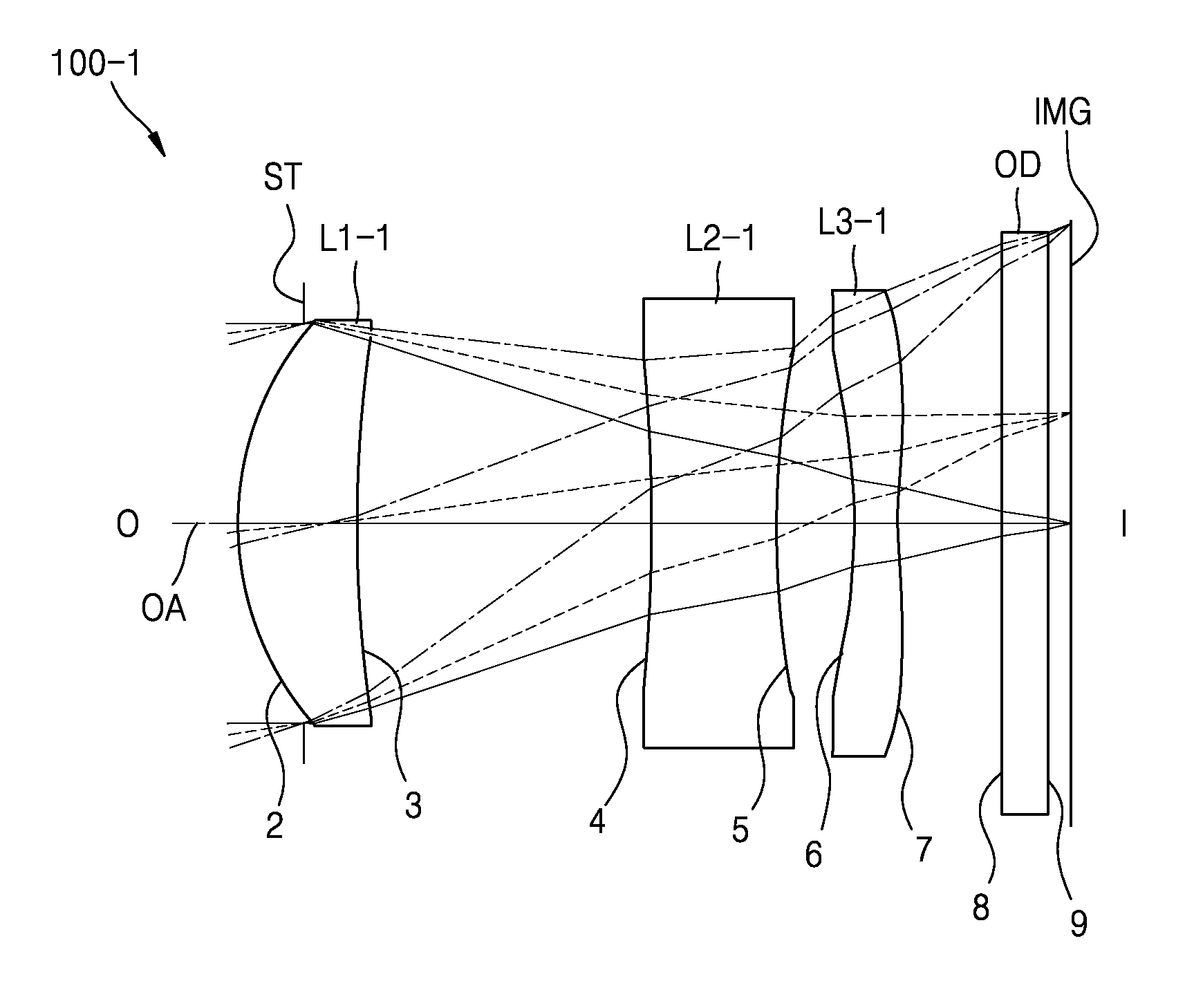

Provided are an optical lens assembly and an electronic device. The optical lens assembly includes a first lens having a positive refractive power, a second lens having a positive or negative refractive power, and a third lens having a negative refractive power. The first lens, the second lens, and the third lens are sequentially arranged from an object side to an image side of an optical axis, the object side facing an object for image capture and the image side facing an image plane of an image sensor. The optical lens assembly and the electronic device may be configured to perform, for example, iris recognition for user authentication.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| KR | B1 | KR102732412 | Jul 29, 2016 |
International Classification(s)
- 2017 Application Filing Year
- G02B Class
- 11360 Applications Filed
- 8685 Patents Issued To-Date
- 76.46 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G02B Class
- 28.28 % this patent is cited more than
- 7 Age
