RadCom system and method for vehicle using fast chirp signal
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Feb 22, 2017
filing date -
Jul 29, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

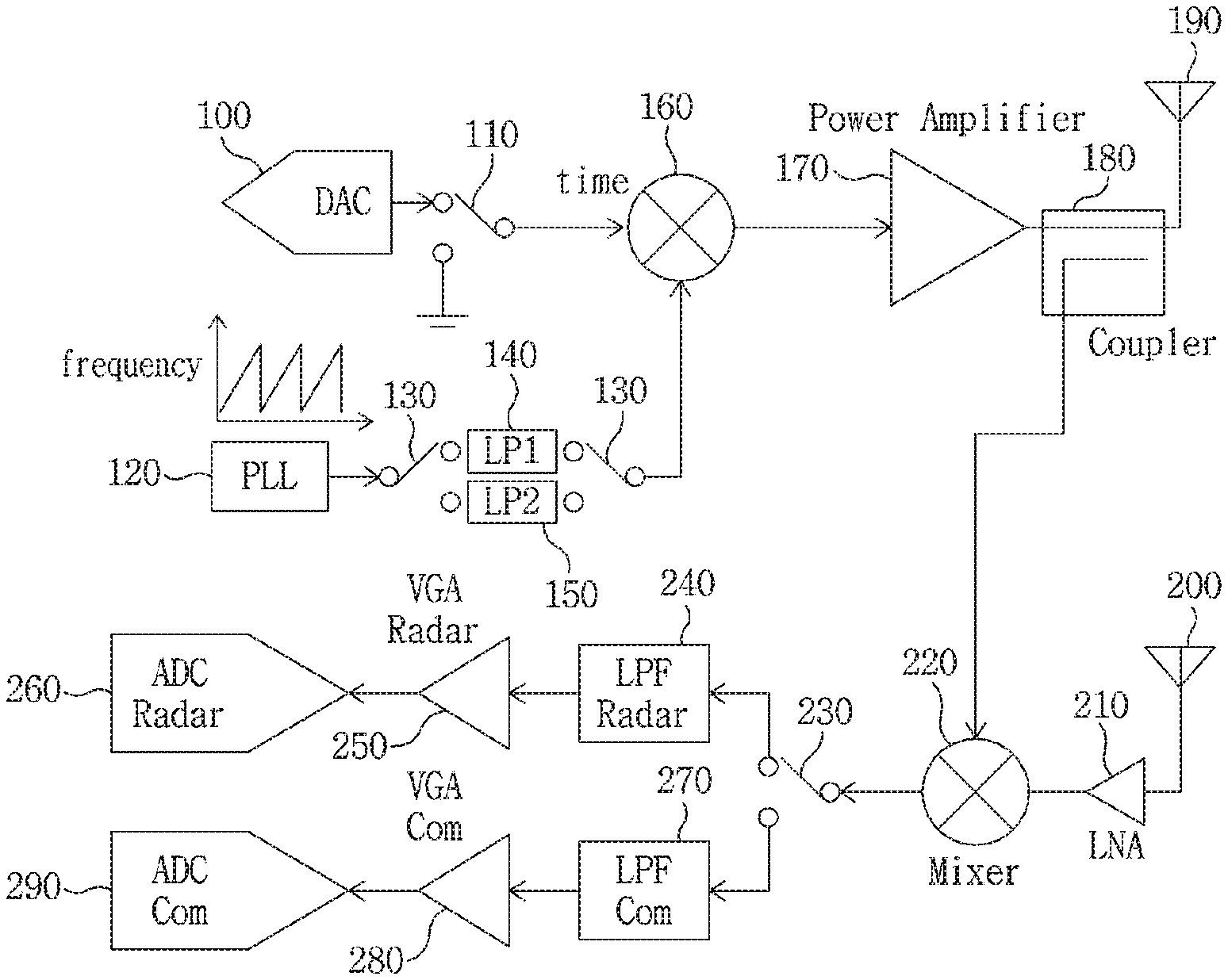

A radar and communication (RadCom) system and a method for vehicles using a fast chirp signal are provided. A radar system includes a phase locked loop (PLL) configured to generate a radar signal, a signal generator configured to generate a communication signal and a mixer configured to mix the radar signal and the communication signal. The system also includes a transmitter configured to transmit an output signal from the mixer, a first switch configured to switch not to transmit the communication signal to the mixer in a radar mode, and a second switch configured to switch to connect a first filter to the PLL when the radar mode ends. Accordingly, RadCom transmission and reception using the fast chirp signal is possible.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- H04B Class
- 10342 Applications Filed
- 8280 Patents Issued To-Date
- 80.07 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- H04B Class
- 37.75 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 7, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 7, 2031 |
