Time to current converter
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 30, 2019
Grant Date -
Feb 1, 2018
app pub date -
Jul 29, 2016
filing date -
Jul 29, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

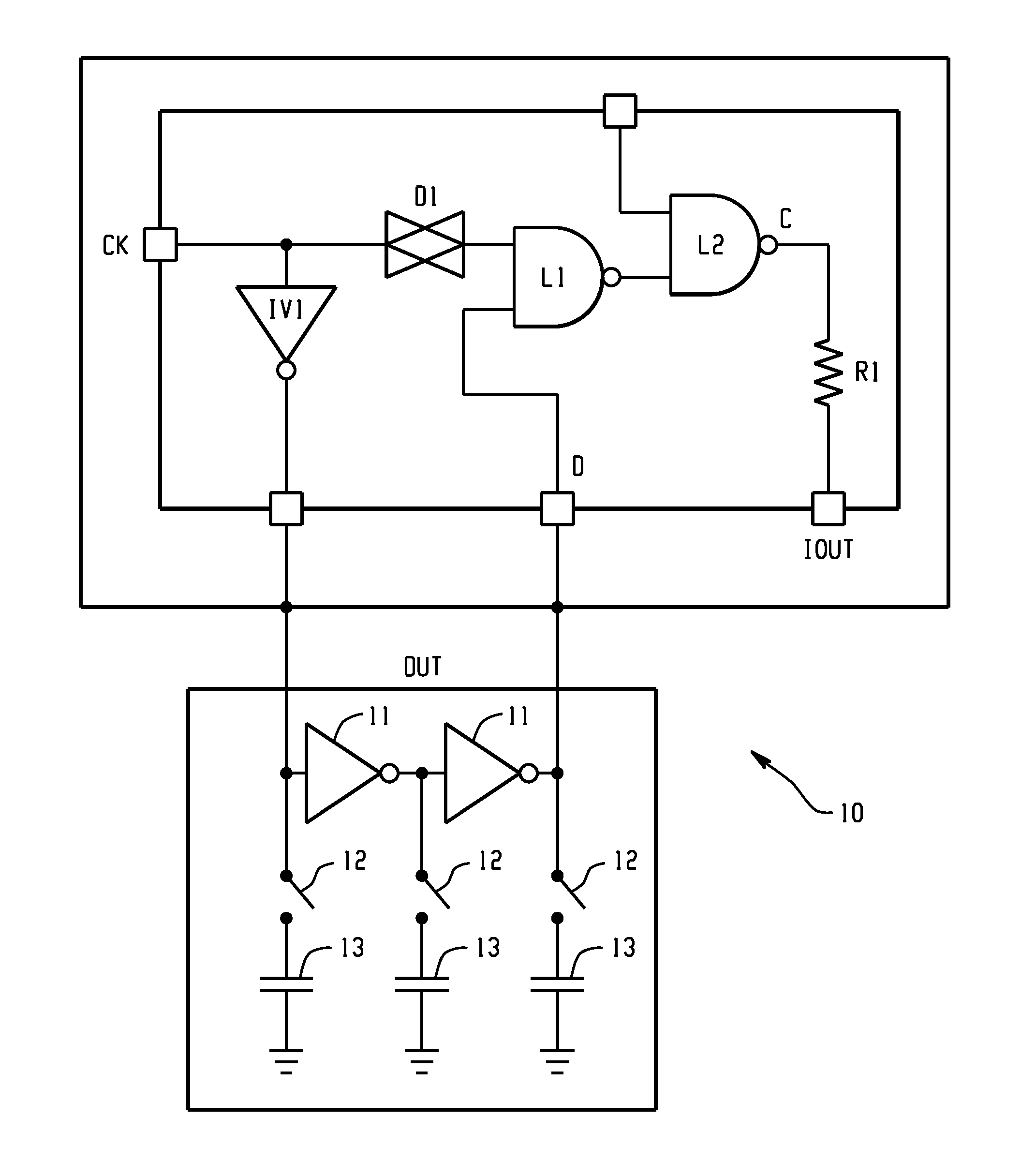

A device comprising a device under test and a time to current converter configured to be coupled to the device under test. The device under test comprises: (i) at least one delay element for creating a delay; (ii) at least one capacitor for providing capacitance loading to the at least one delay element; and (iii) at least one switch to control the capacitance loading provided by the at least one capacitor. The time to current converter comprises (i) a first input for receiving a first clock signal; (ii) a second input for receiving an inverted and delayed version of the first clock signal from the device under test; and (iii) an impedance module for measuring an output current. During a testing mode, the at least one switch is in a closed position so the at least one capacitor can provide a capacitance loading to the at least one delay element to amplify the delay associated with the device under test.
