Vibration exciter
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 26, 2019
Grant Date -
Feb 1, 2018
app pub date -
Jul 19, 2017
filing date -
Jul 27, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

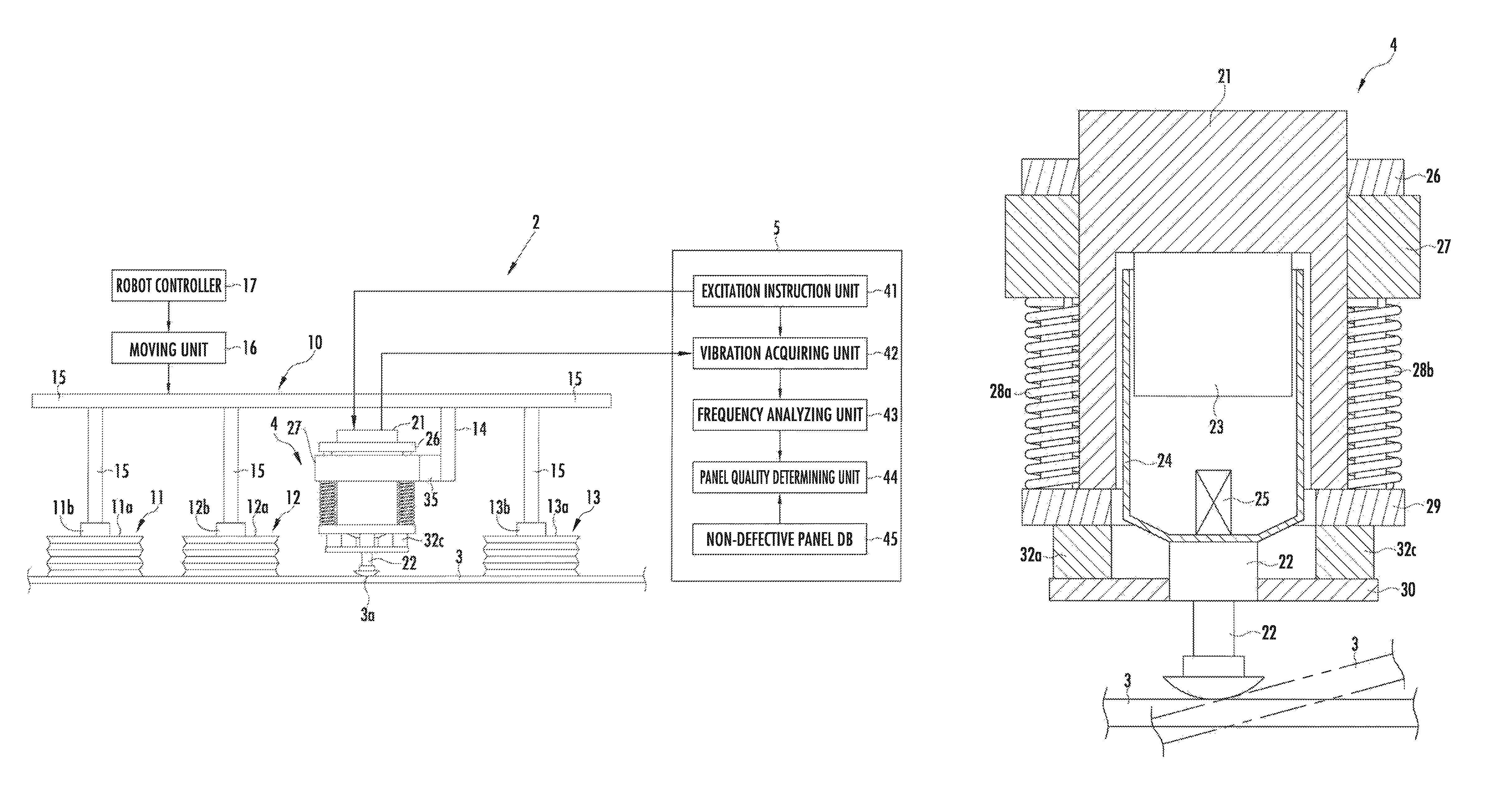

A vibration-sensor-integrated vibration exciter 4 has a chassis 21, an excitation unit 22, a magnet 23, a yoke 24, a vibration sensor 25, a fixed plate 26, a moving plate 27, coil springs 28a to 28d, a retaining plate 29, and a crisscross plate 30. Shafts 31a to 31d are fixed to the fixed plate 26. The excitation unit 22 is fixed to the crisscross plate 30. Four vibration-proof rubber members 32a to 32d are installed to the crisscross plate 30 at 90-degree pitches with same radius centering on the excitation axis of the fixed excitation unit 22. The crisscross plate 30 is installed to the retaining plate 29 through the vibration-proof rubber members 32a to 32d. A vibration applied to the chassis 21 is absorbed by the vibration-proof rubber members 32a to 32d, to prevent the yoke 24 from being dislocated in lateral direction due to the vibration.
