Insulating material with renewable resource component
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 22, 2018
Issued Date -
N/A
app pub date -
Sep 12, 2017
filing date -
Dec 9, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

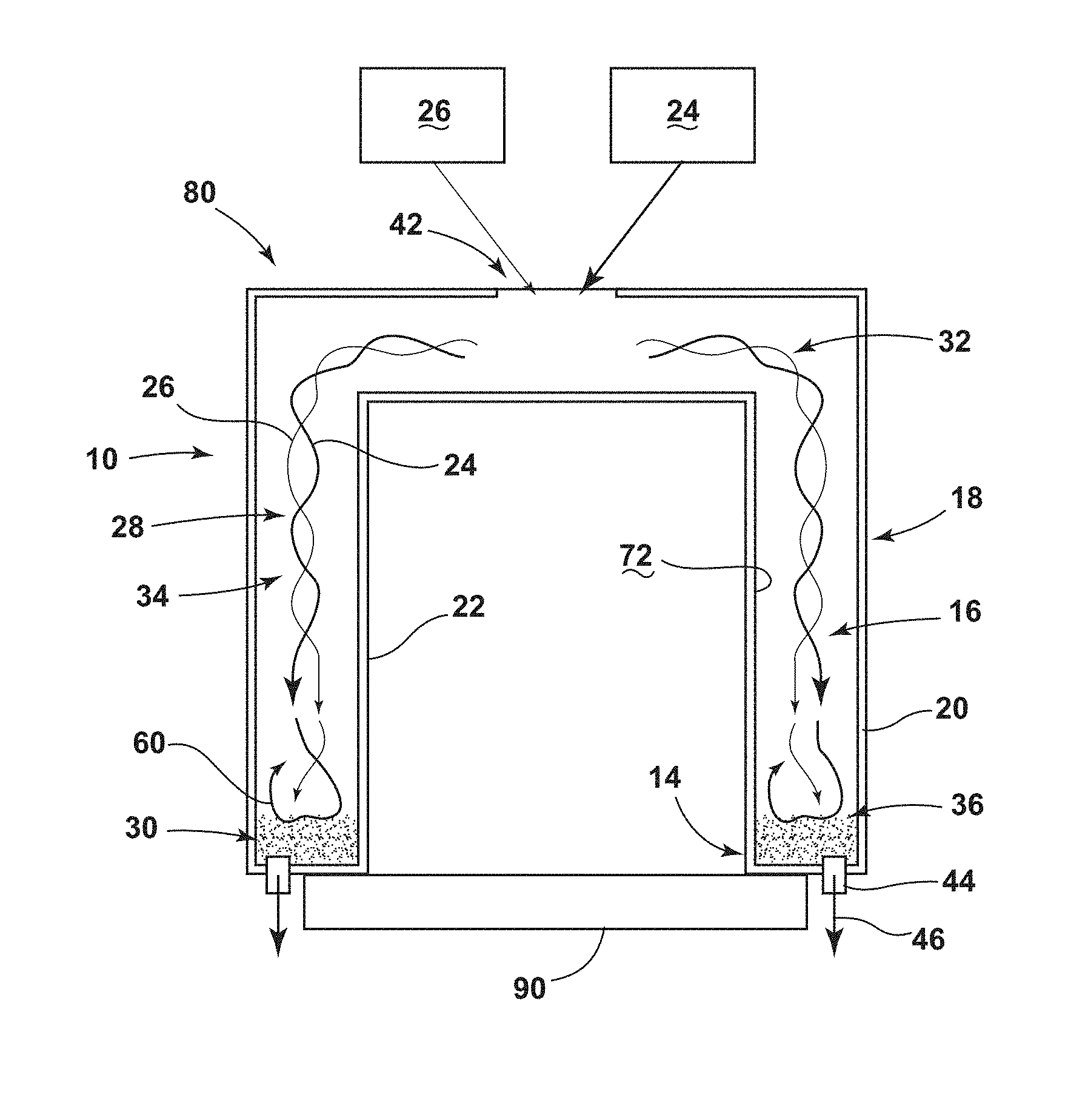

An insulated cabinet structure includes an inner liner having a plurality of walls defining a refrigerator compartment, and an external wrapper having a plurality of walls defining a refrigerator compartment receiving area. An insulation gap is formed between the walls of the inner liner and the walls of the external wrapper. A first insulation material is positioned on a wall of the external wrapper and extends outwardly into the insulation gap to partially fill the insulation gap. The first insulation material includes a renewable resource component having a particle size in a range from about 10 microns to about 25 microns. A second insulation material is disposed in the insulation gap, such that the first insulation material and the second insulation material together substantially fill the insulation gap.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| US | B2 | US9791205 | Dec 09, 2015 |
| WO | A1 | WO2017100003 | Nov 23, 2016 |
| EP | A1 | EP3387348 | Nov 23, 2016 |
International Classification(s)
- 2017 Application Filing Year
- A47B Class
- 1313 Applications Filed
- 968 Patents Issued To-Date
- 73.73 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- A47B Class
- 33.73 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 22, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 22, 2029 |
