Systems and methods for temperature and humidity control
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 9, 2021
Grant Date -
Feb 1, 2018
app pub date -
Jan 26, 2017
filing date -
Jul 27, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

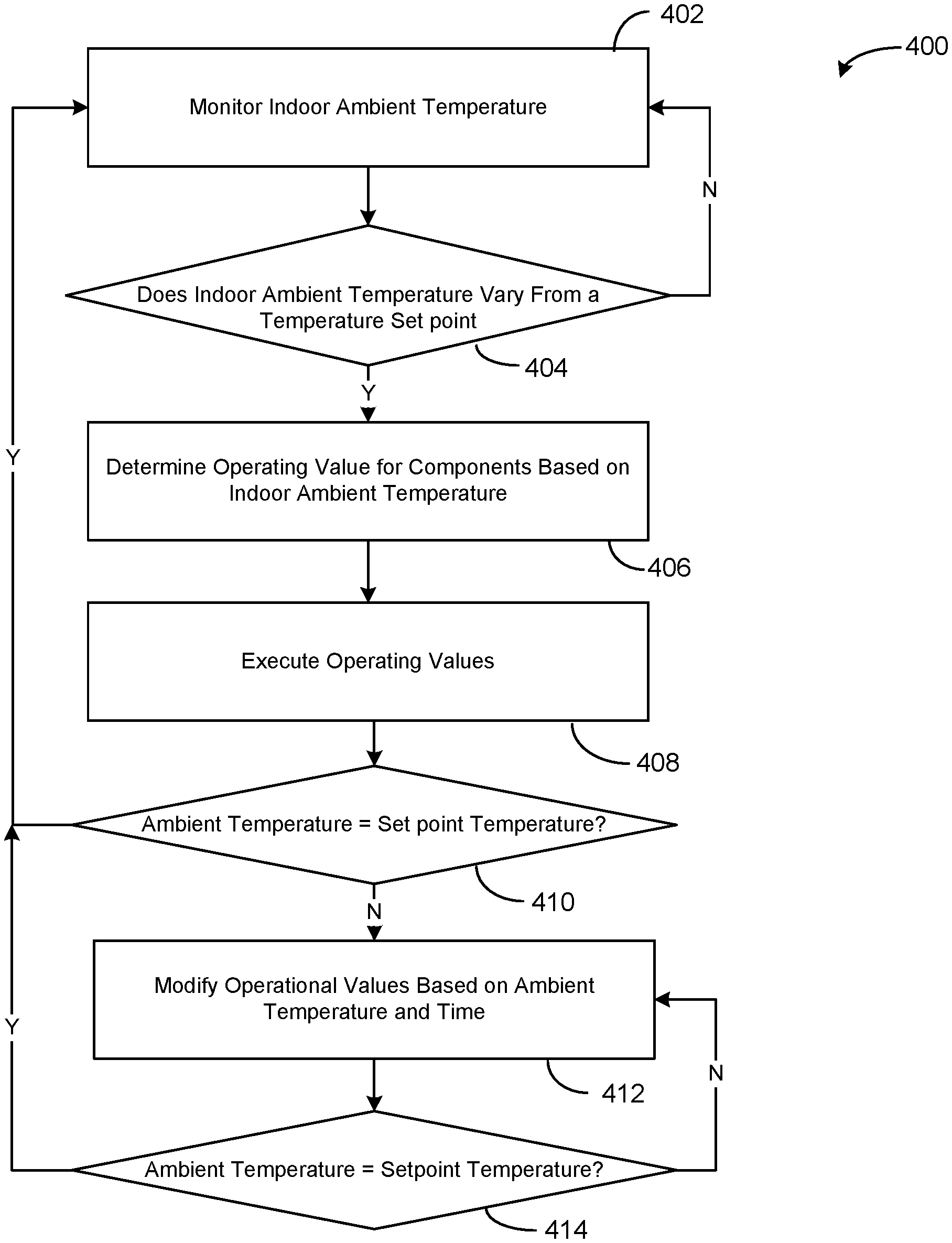

A residential HVAC system includes, a compressor, and an outdoor unit controller in communication with the compressor. The outdoor unit controller is configured to receive an indoor ambient temperature and a temperature set point. The outdoor unit controller is further configured to determine an outdoor ambient temperature, and to determine an operating value for the compressor based on a percentage of a delta between a minimum operating value of the compressor and a maximum operating value of the compressor, plus the minimum operating value. The minimum operating value and the maximum operating value are based on the determined outdoor ambient temperature. The percentage of the delta is based on a predefined temperature differential multiplier and one or more time dependent multipliers. The outdoor unit controller is further configured to modify the current operating value of the compressor with the determined operating value.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- F24F Class
- 1562 Applications Filed
- 1118 Patents Issued To-Date
- 71.58 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- F24F Class
- 68.18 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 9, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 9, 2032 |
