Bearing assembly, in particular for a turbomachine, and turbomachine having such a bearing assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 25, 2019
Grant Date -
Feb 1, 2018
app pub date -
Jul 27, 2017
filing date -
Jul 29, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

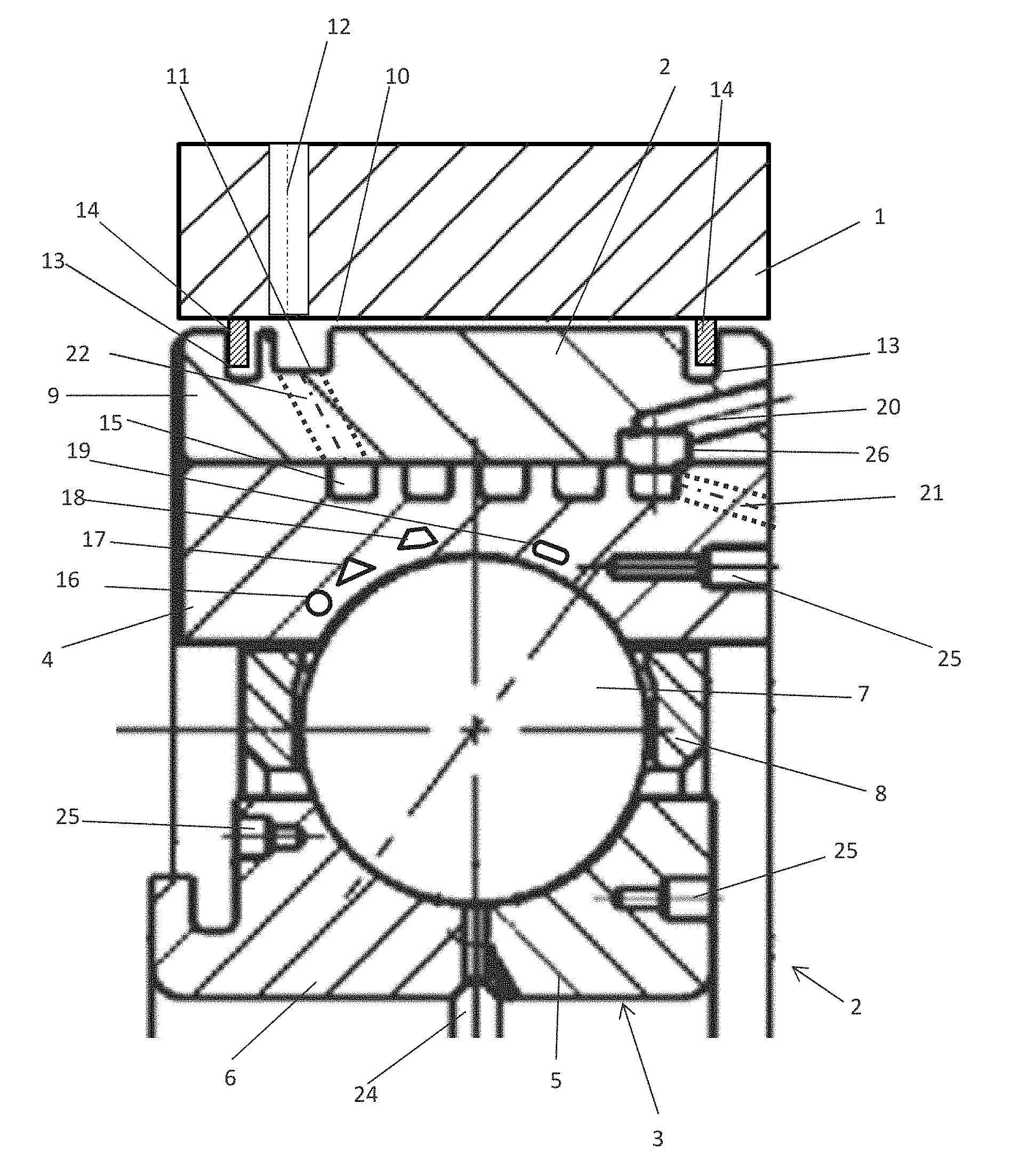

A bearing assembly (2) is provided, in particular for a turbomachine, including: an inner bearing race (3); an outer bearing race (4) having at least one cooling channel (15) formed within it or in its outer surface; rolling elements (7) made of ceramic and disposed between the inner bearing race (3) and the outer bearing race (4); and a surrounding bearing ring (9) connected to the outer bearing race (4) and configured to form a squeeze film (10) of oil between its outer surface and an opposite inner surface of a housing (1) in which the bearing assembly can be mounted.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2017 Application Filing Year
- F16C Class
- 1545 Applications Filed
- 1132 Patents Issued To-Date
- 73.27 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16C Class
- 0 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 25, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 25, 2030 |
