Dual line hydraulic trailer brake control circuit and method of control thereof
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 1, 2019
Grant Date -
Feb 1, 2018
app pub date -
Jul 28, 2016
filing date -
Jul 28, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|

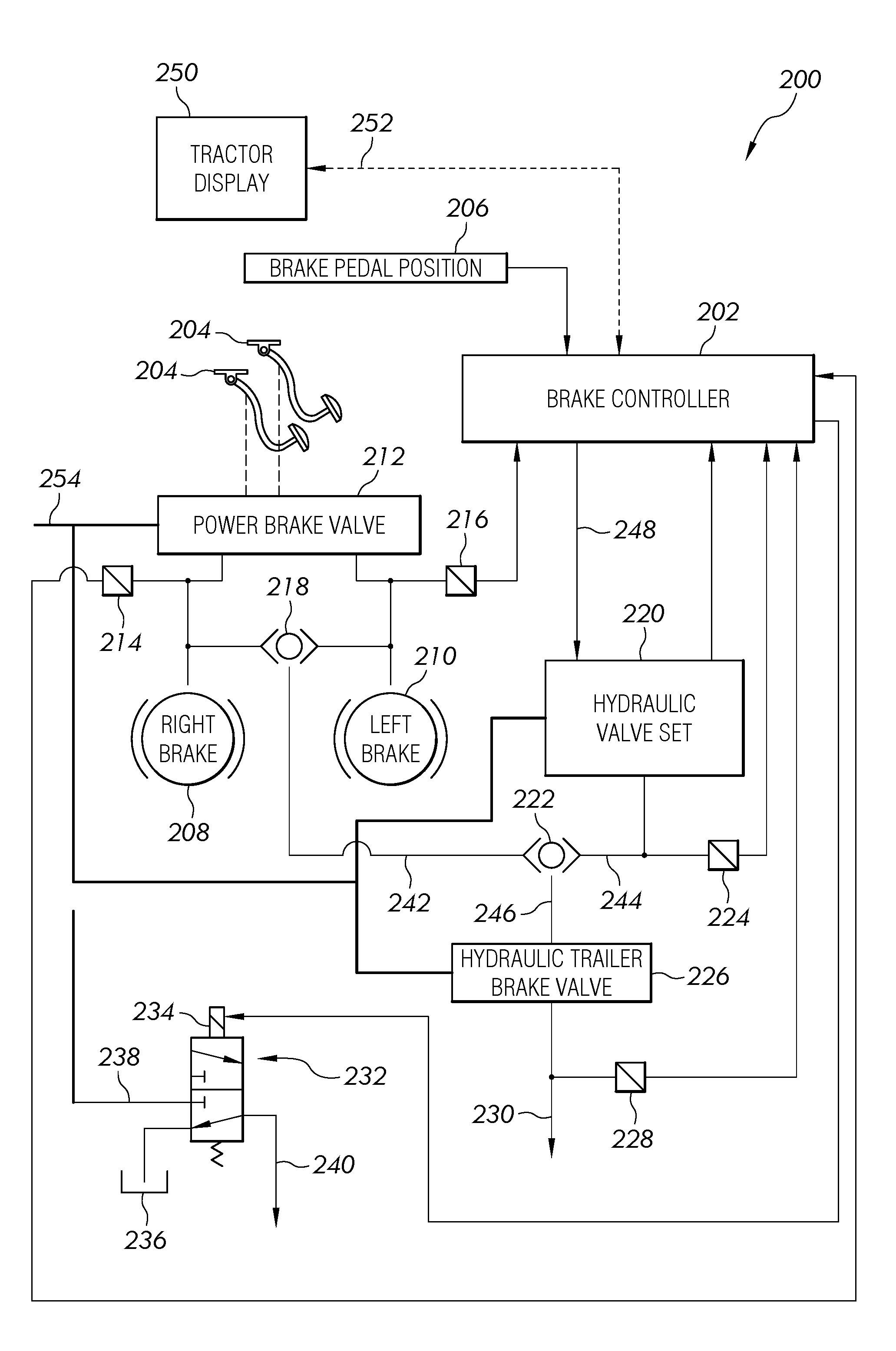

Abstract
A method of detecting a leak in a hydraulic trailer brake circuit of a trailer includes providing a controller, a base valve, a first sensor, a second sensor, a control valve having a solenoid, a reduction valve, a hydraulic fluid supply, a first brake output, and a second brake output. The method also includes supplying a first pressure to an inlet of the base valve and outputting a second pressure from an outlet of the base valve to the first brake output. The first pressure is detected by the first sensor and the second pressure is detected by the second sensor, and the detected first and second pressures are communicated to the controller. The difference between the first and second pressures are compared to a threshold, and a leak is detected in the hydraulic trailer brake circuit if the difference satisfies the threshold.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2016 Application Filing Year
- B60T Class
- 1075 Applications Filed
- 884 Patents Issued To-Date
- 82.24 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60T Class
- 0 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 1, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 1, 2030 |
