VEHICLE OPENING AND CLOSING BODY OPERATING DEVICE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jun 13, 2017
filing date -
Jul 28, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

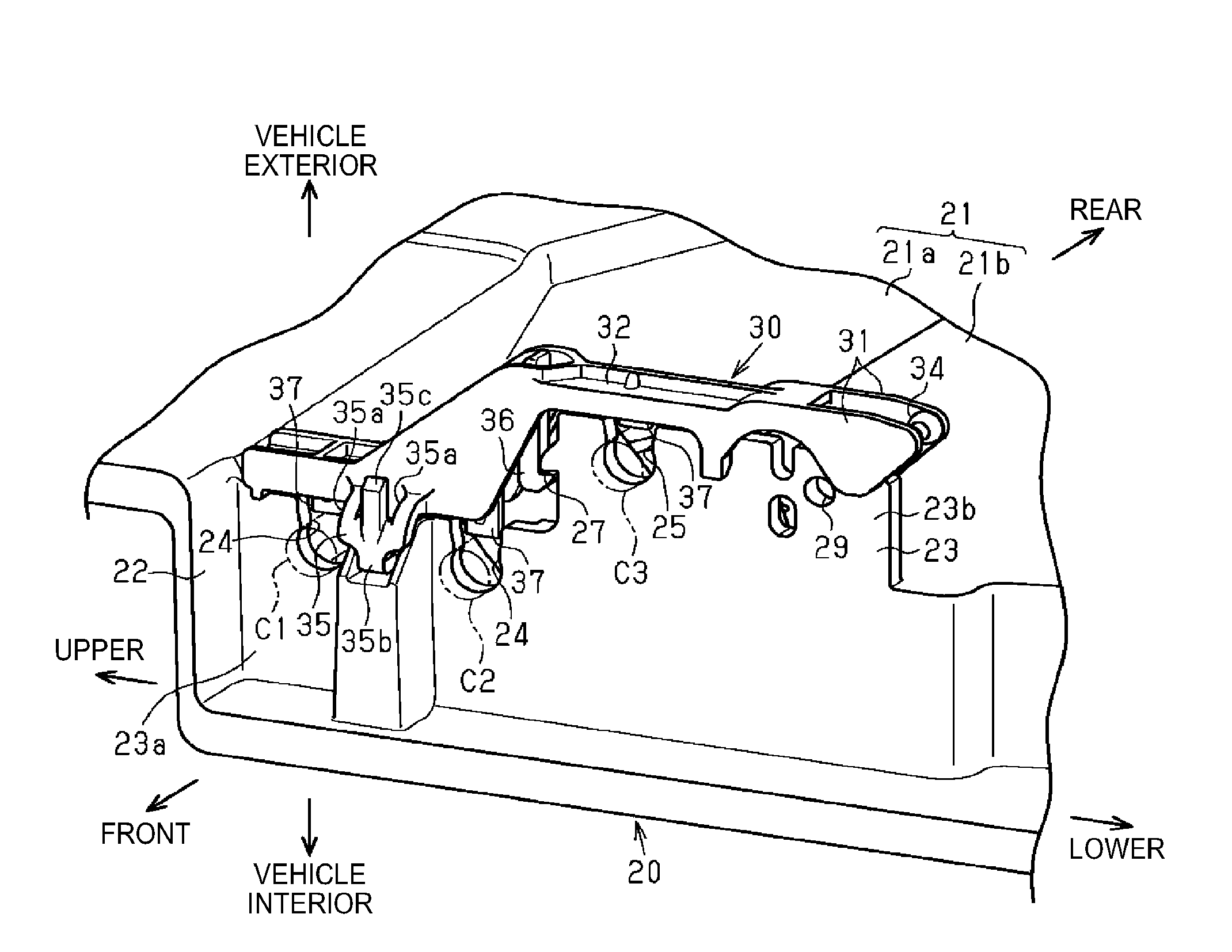

A vehicle opening and closing body operating device includes: a support member having a vertical wall portion, holding grooves into which cables are inserted and which are formed in the vertical wall portion to be opened in a standing direction of the vertical wall portion and to be in parallel in one direction, each of the holding grooves communicating in a plate thickness direction of the vertical wall portion, and a support side locking portion which is provided between the adjacent holding grooves; and a cover having a shaft portion supported on the vertical wall portion to be pivotable about an axis extending in the plate thickness direction, an arm portion extending from the shaft portion along the vertical wall portion to cover openings of the holding grooves, and a cover side locking portion provided on the arm portion and hooked with the support side locking portion.
