PEX expanding tool
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 22, 2018
Issued Date -
N/A
app pub date -
Jul 13, 2017
filing date -
Jul 27, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

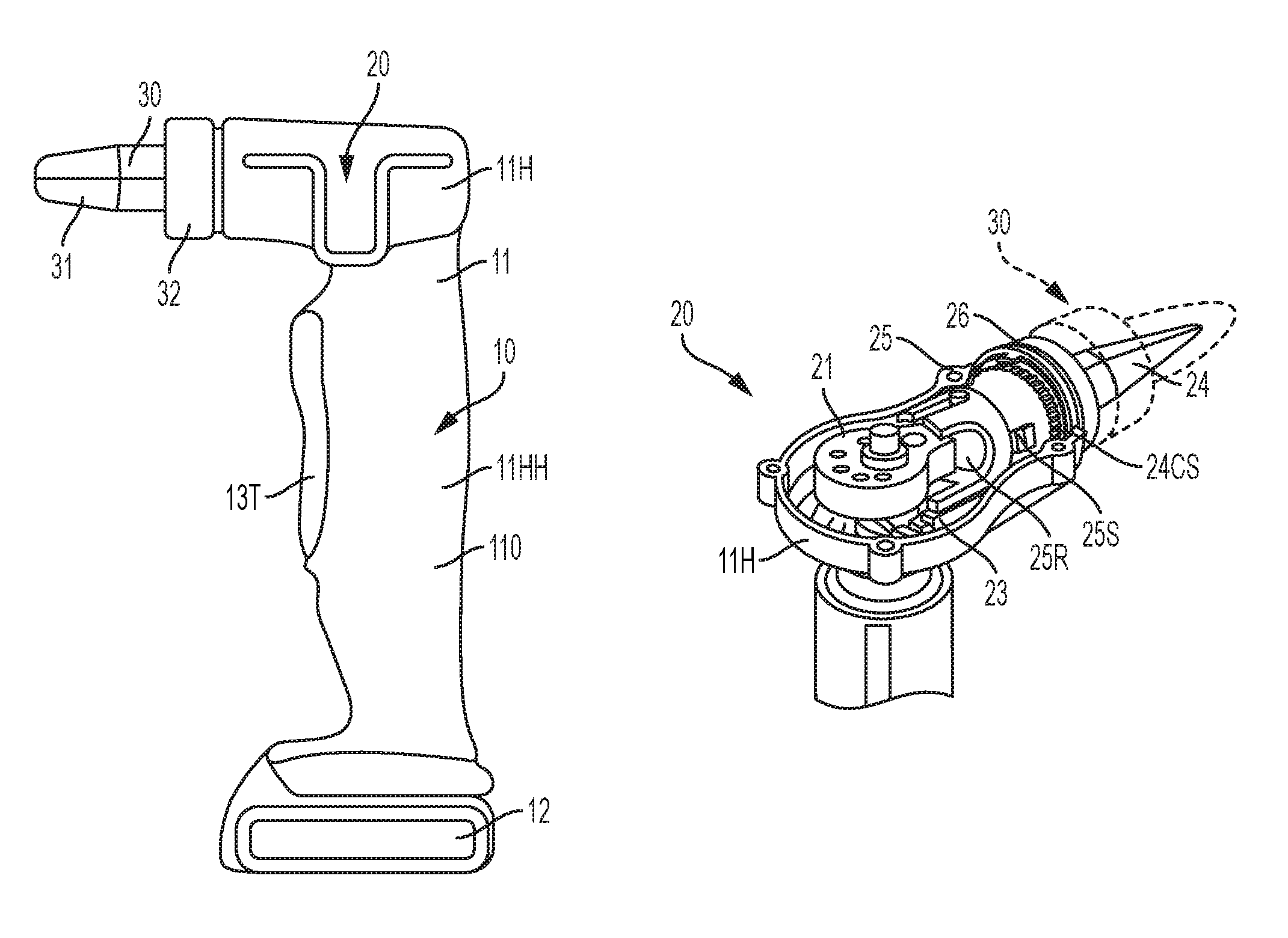

A tool operable to expand an end of a pipe, such as PEX pipe, has a jaw assembly with jaws movable between a closed position and an expanded position and rotatable about a longitudinal axis. A motor drives an output spindle driven by the motor, which in turn drives a radial cam. A wedge is movable by the radial cam in a reciprocating motion along the axis, causing the wedge to move between a first position where the jaws are in the closed position and a second position where the jaws are in the expanded position. A rotating ring is mounted on the wedge and connected to the jaws. The rotating ring is driven by the output spindle for rotating the jaws about the axis.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| EP | B1 | EP3275626 | Jul 19, 2017 |
International Classification(s)
- 2017 Application Filing Year
- B29C Class
- 6708 Applications Filed
- 4570 Patents Issued To-Date
- 68.13 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B29C Class
- 44.15 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 22, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 22, 2029 |
