DEVICE FOR IRRADIATING A CYLINDRICAL SUBSTRATE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Dec 11, 2015
filing date -
Feb 3, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

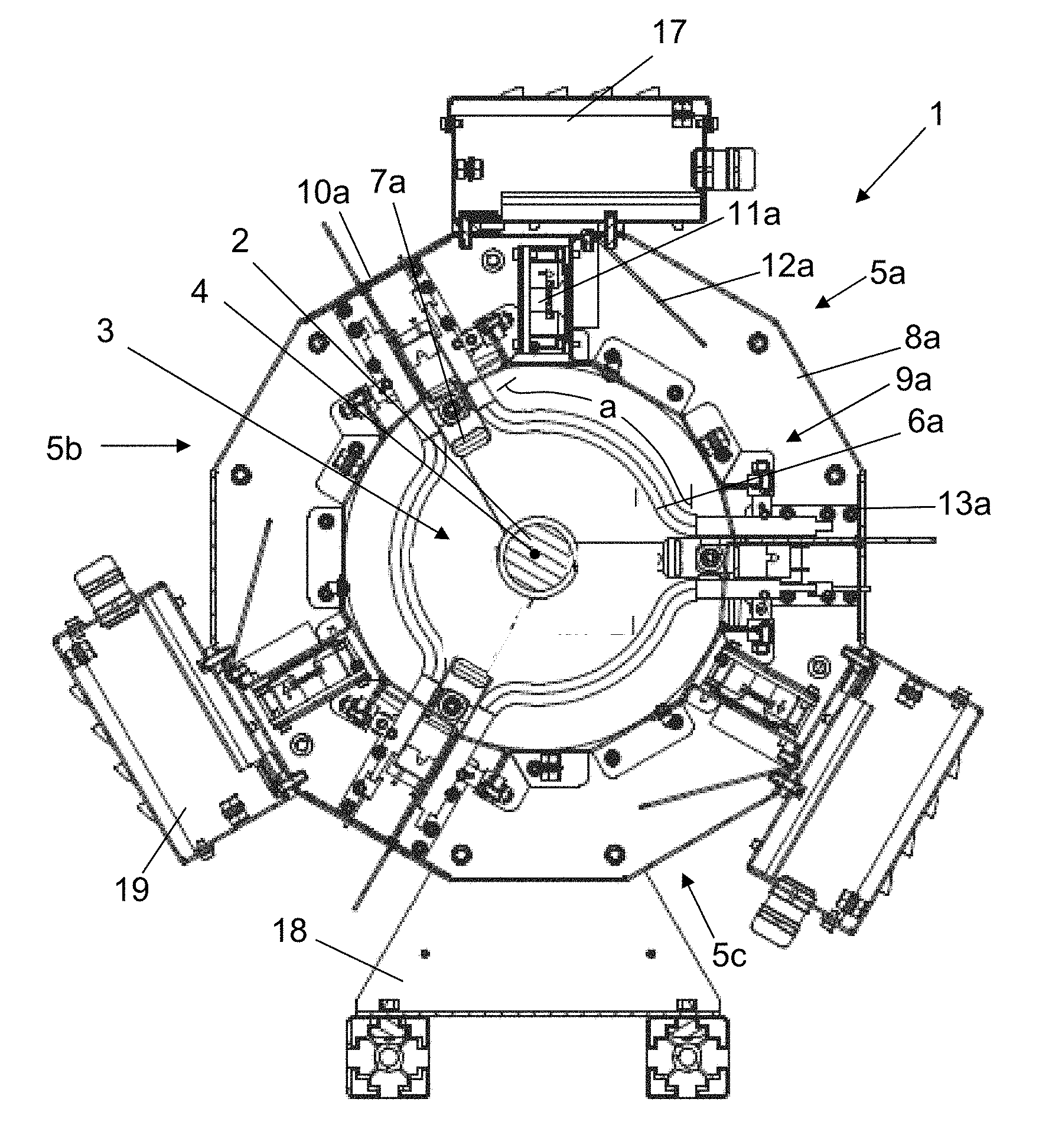

Known devices for irradiating a cylindrical substrate have a cylindrical irradiation chamber having a center axis, and a radiator unit around the irradiation chamber. Starting from these known devices, to provide a device that can be easily and quickly retrofitted and also enables a uniform irradiation of the substrate, it is proposed according to the invention that the radiator unit be formed from multiple segments connected to each other, wherein each of the segments has an optical main radiator having an illuminated radiator tube section that is curved outwardly with respect to the center axis, and wherein the radiator tube sections are arranged in a common radiator plane perpendicular to the center axis.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| DE | B3 | DE102015101511 | Feb 03, 2015 |
| KR | A | KR20170110666 | Dec 11, 2015 |
| WO | A1 | WO2016124279 | Dec 11, 2015 |
| CN | A | CN107206641 | Dec 11, 2015 |
| EP | A1 | EP3253546 | Dec 11, 2015 |
| JP | A | JP2018504299 | Dec 11, 2015 |
International Classification(s)
- 2015 Application Filing Year
- B29C Class
- 5693 Applications Filed
- 4194 Patents Issued To-Date
- 73.67 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B29C Class
- 44.15 % this patent is cited more than
- 7 Age
