WAIST PAD BUMPER SYSTEM FOR SELF-CONTAINED BREATHING APPARATUS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Feb 13, 2015
filing date -
Feb 13, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

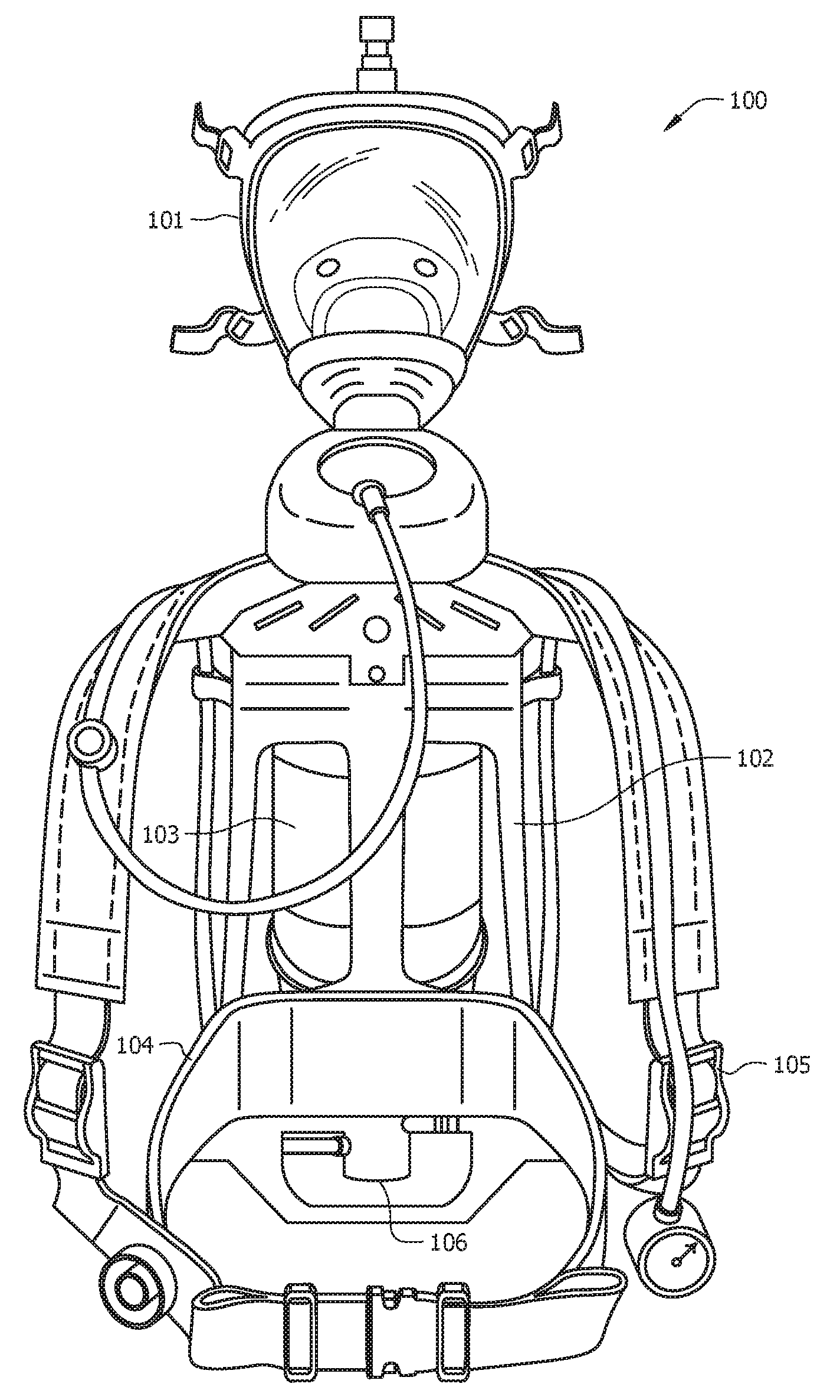

Embodiments relate generally to a self-contained breathing apparatus (SCBA comprising a waist pad bumper system. The waist pad bumper system may comprise a soft rubber gasket located between the waist pad and the backplate of the SCBA, operable to compress to cushion the movement of the backplate with respect to the waist pad; a hard rubber gasket located between the waist pad and the backplate operable to compress to cushion the movement of the backplate with respect to the waist pad; one or more magnets located on the waist pad; and one or more magnets located on the backplate operable to interact with the one or more magnets located on the waist pad, wherein the magnets of the waist pad have the same polarization as the magnets of the backplate and therefore repel each other.
First Claim
Other Claims data not available
