Electromedical implant comprising an electrical feedthrough
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 14, 2020
Grant Date -
Feb 1, 2018
app pub date -
Jul 21, 2017
filing date -
Aug 1, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

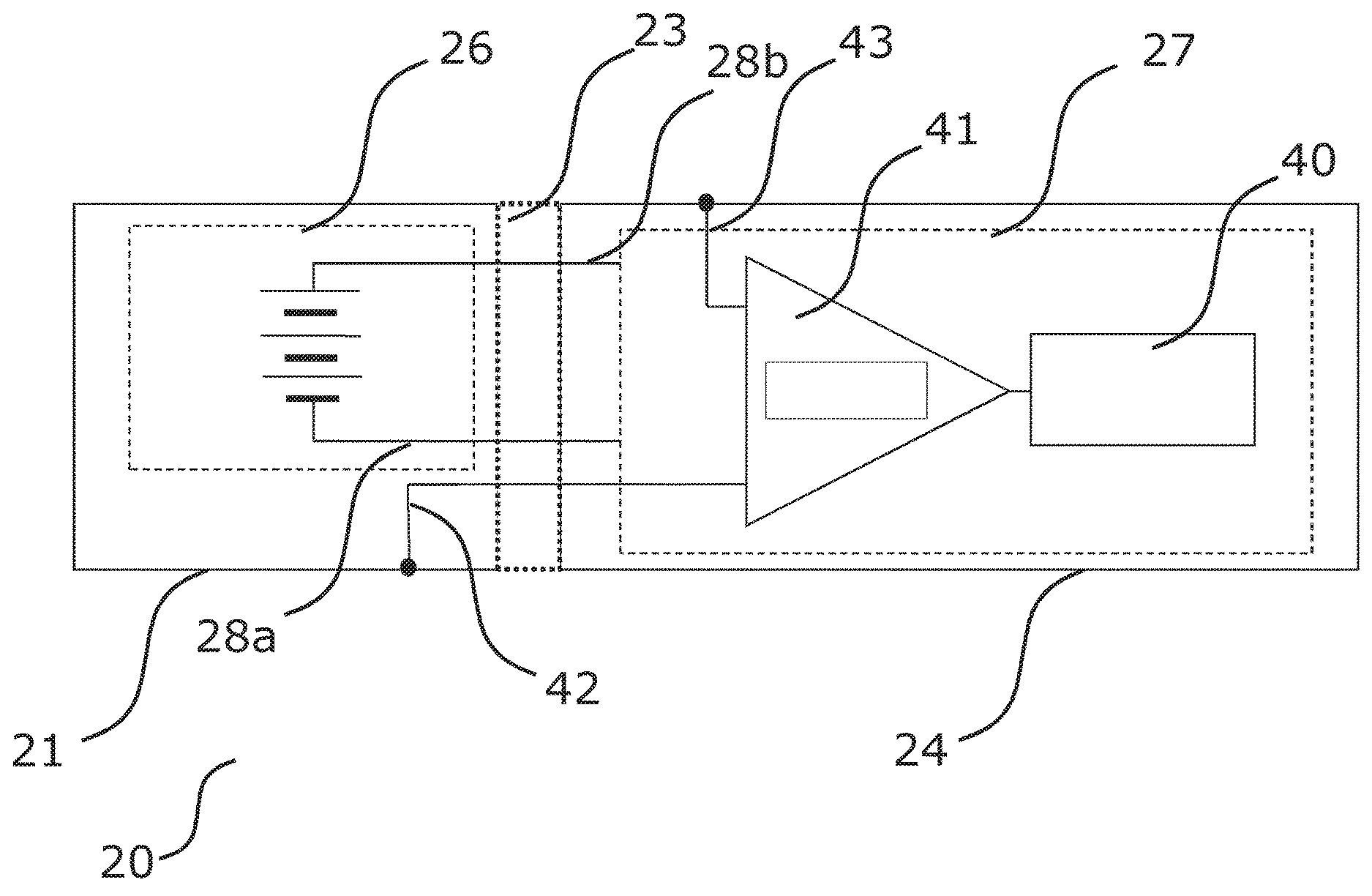

An electromedical implant, having a housing with three housing segments A, B and C. Segment A is joined to segment B, and segment B is joined to segment C, so that segment B is disposed between segments A and C. Segment A and segment C are at least partially made of electrically conducting material. Furthermore, an electronics module is disposed within housing segment A and has an electric circuit arrangement for picking up and further processing electrical signals, and at least one first and one second electrical conductor for measuring electrical potentials and/or for delivering electric pulses. Each conductor has a conductor start and a conductor end, and each conductor start is connected to the electric circuit arrangement. An electrical feedthrough is at least partially made of electrically insulating material, and segment B is formed by portions of the feedthrough.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- A61B Class
- 19464 Applications Filed
- 13928 Patents Issued To-Date
- 71.56 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- A61B Class
- 39.73 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 14, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 14, 2031 |
