Self-deploying tree system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 29, 2020
Grant Date -
Feb 1, 2018
app pub date -
Jul 27, 2017
filing date -
Jul 28, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

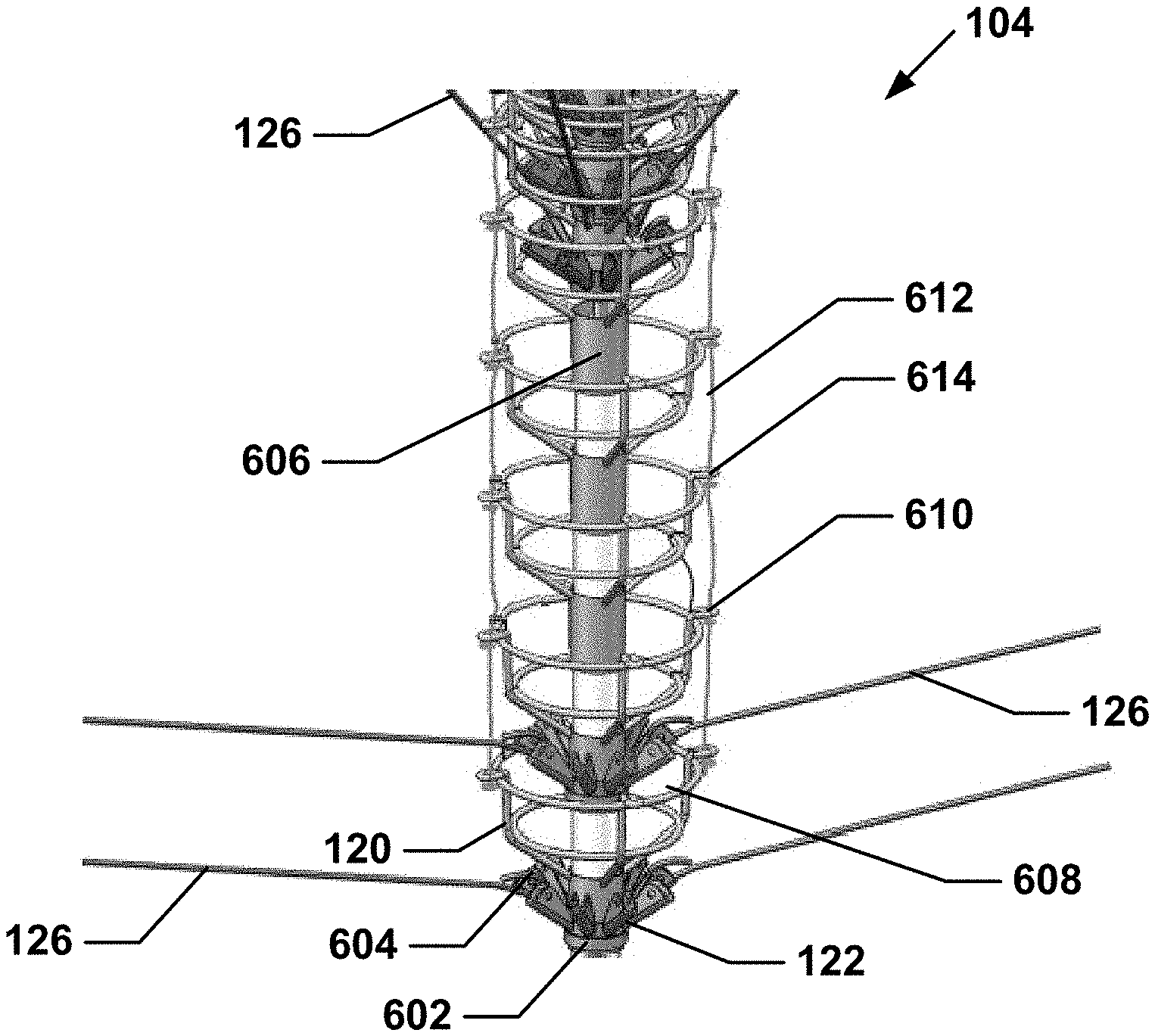

Apparatuses and methods for a self-deploying tree are disclosed. In an exemplary embodiment, a self-deploying tree system comprises a top tree assembly, a main tree assembly, and a base. The lower end of the top tree assembly may be coupled to the upper end of the main tree assembly, and the lower end of the main tree assembly may be coupled to the base, providing a vertical orientation of the self-deploying tree system. The self-deploying tree system further comprises a deployment mechanism which may be activated to automatically convert the tree from a collapsed configuration to a deployed configuration or from a deployed configuration to a collapsed configuration. The collapsed configuration comprises a reduced height and a reduced circumference to allow for ease of handling and storage. The deployed configuration provides for the tree to be extended to a desired height and for deployment of the limbs as desired for display.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- A47G Class
- 1174 Applications Filed
- 694 Patents Issued To-Date
- 59.12 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- A47G Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 29, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 29, 2032 |
