Sole structure for an article of footwear having a nonlinear bending stiffness
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 19, 2020
Grant Date -
Feb 1, 2018
app pub date -
Jul 26, 2017
filing date -
Jul 28, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

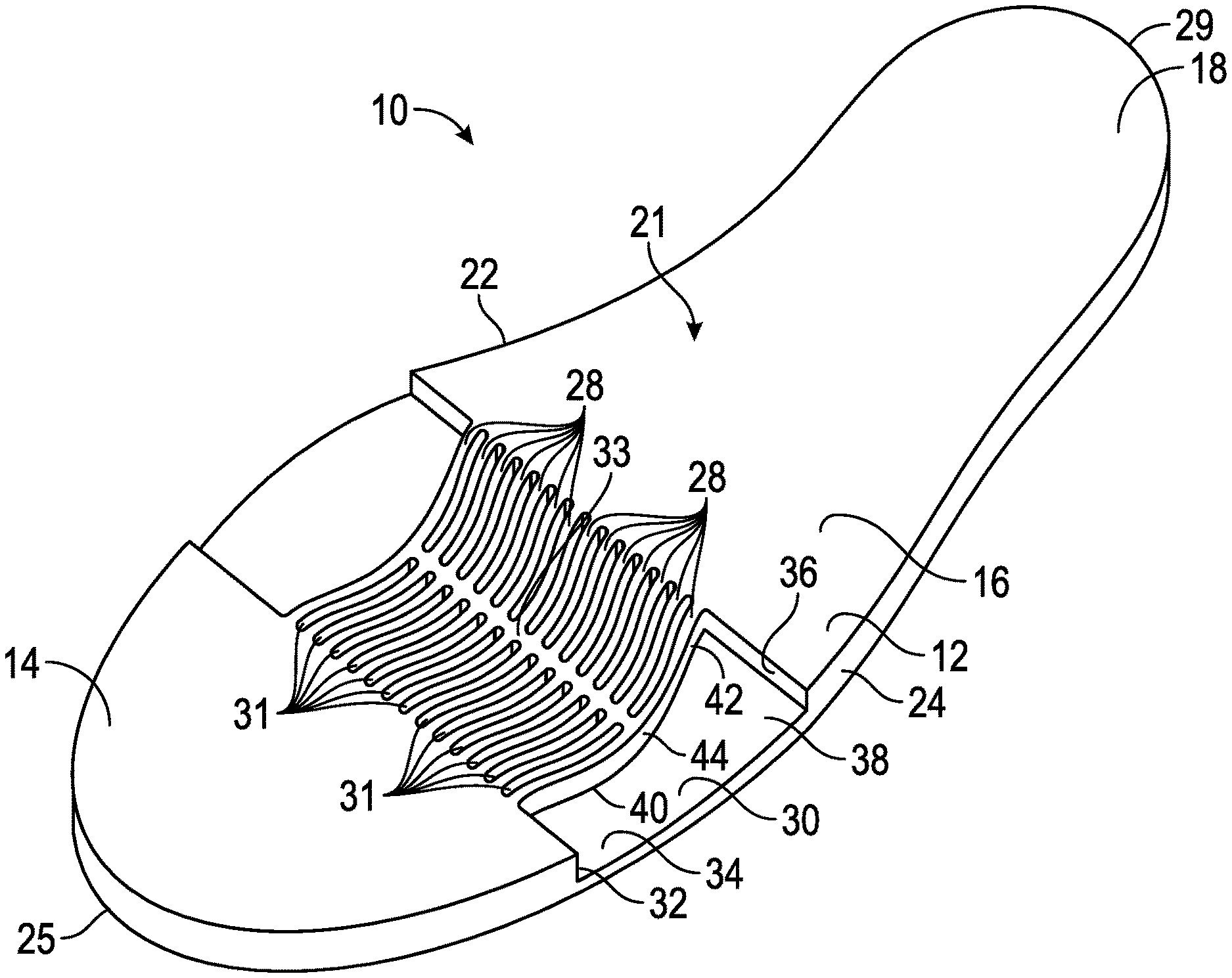

A sole structure for an article of footwear comprises a first sole plate with a foot-receiving surface, a ground-facing surface opposite the foot-receiving surface, and an opening in the ground facing surface extending at least partway through the first sole plate and from a lateral side to a medial side of the first sole plate in a forefoot region. The first sole plate has a first wall at a forward extent of the opening, a second wall at a rear extent of the opening, and at least one tensile member disposed in the opening. The tensile member has a forward end fixed to the first wall, a rear end fixed to the second wall. A midportion of the at least one tensile member is transversely offset from both the forward end and the rear end by a first offset distance when the sole structure is in an unflexed, relaxed state.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- A43B Class
- 954 Applications Filed
- 620 Patents Issued To-Date
- 64.99 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 7 Citation Count
- A43B Class
- 46.59 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 19, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 19, 2031 |
