PIN-DIVERGING DEVICE FOR RELEASING STRESSES AND CAPACITOR DETECTION SYSTEM
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Nov 23, 2016
filing date -
Jul 20, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

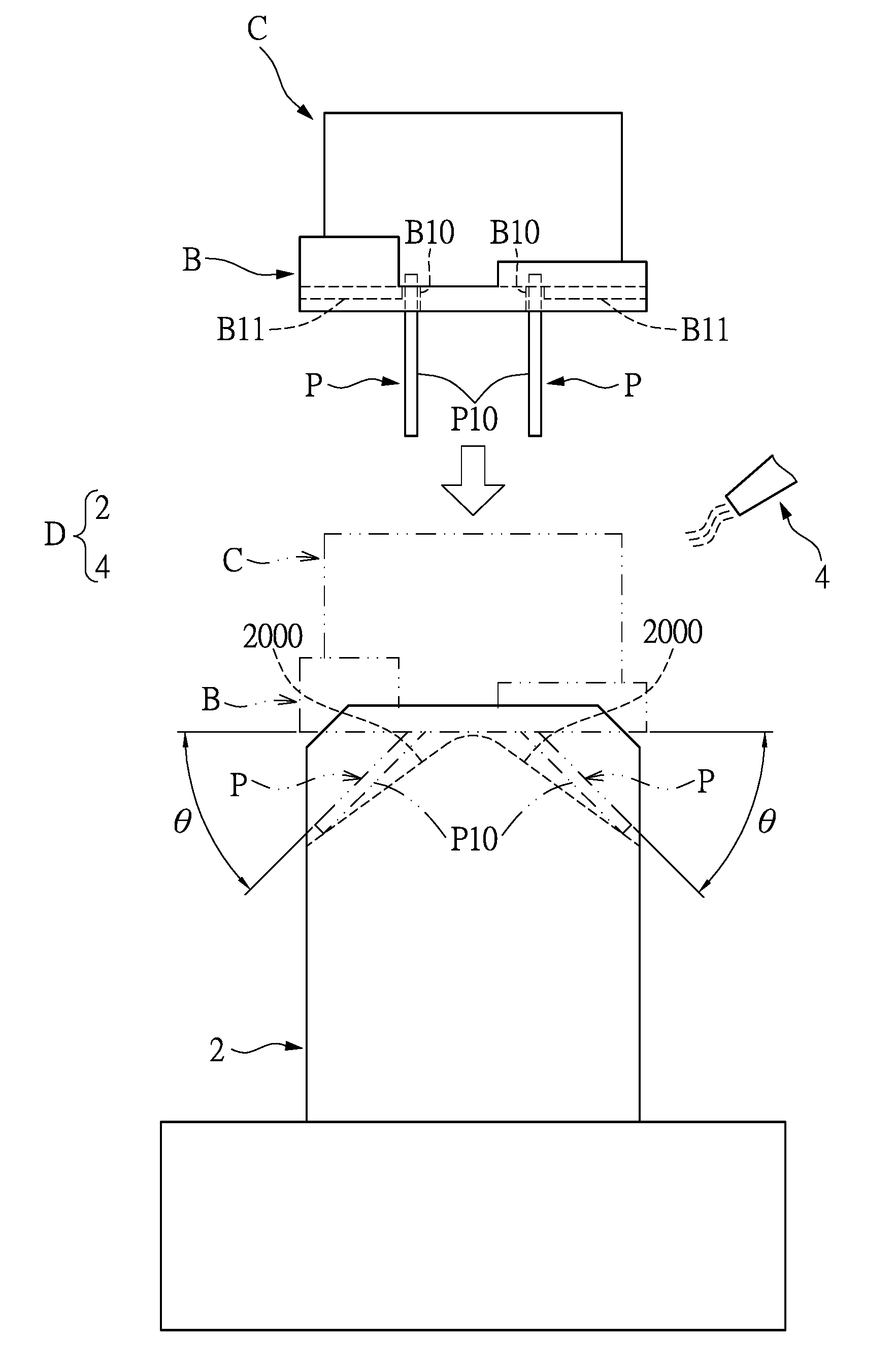

A pin-diverging device for releasing stresses and a capacitor detection system are disclosed. The pin-diverging device includes a pin-diverging module and a heat-generating module adjacent to the pin-diverging module. A capacitor includes two conductive pins respectively passing through two through holes of a seat board, and the two conductive pins of the capacitor are slidably mated with the pin-diverging module so as to diverge the two conductive pins of the capacitor. The seat board is held by the two diverged conductive pins so as to prevent the seat board from being separated from the capacitor. The heat-generating module provides a predetermined heat source to the capacitor so as to release stresses in the capacitor.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| TW | B | TWI619133 | Jul 20, 2016 |
