Lighting device

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 9992852
APP PUB NO 20180027637A1
SERIAL NO

15550937

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

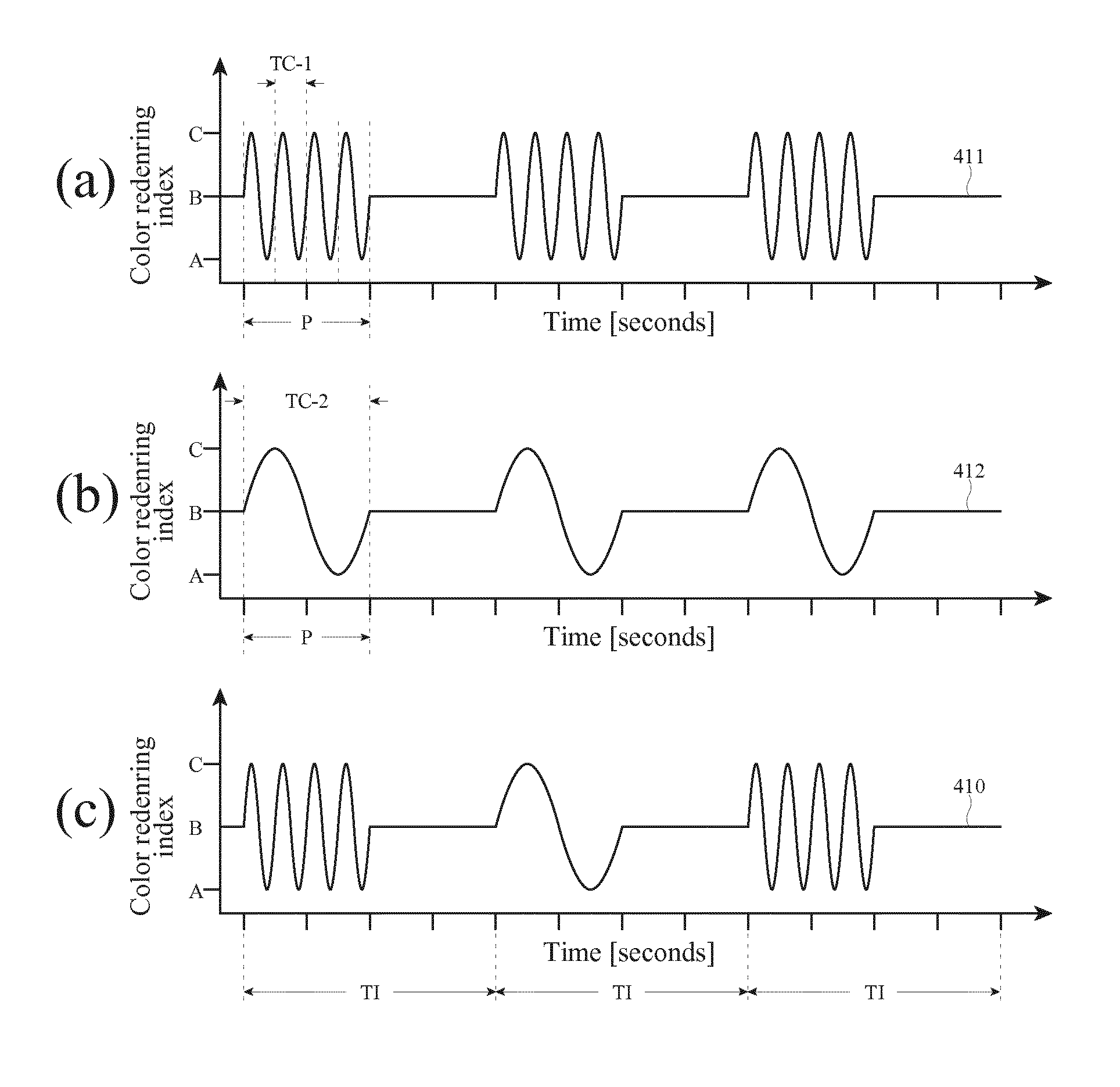

The present invention relates to a lighting device for illuminating a target object with the objective to draw a person's attention to this target object. It alternatingly provides a relatively fast dynamic light output component and a relatively slow dynamic light output component, the former being predominantly for triggering a person's attention towards a target object, while the latter is mainly for enhancing the visual appearance of the target object, thereby keeping someone's attention for that object. For this purpose, the lighting device is arranged to provide a primary light output alternatingly comprising a first light output component and a second light output component. The lighting device comprises a switching controller for switching between the first light output component and the second light output component after a time interval. The primary light output has a perceived light intensity that remains constant over time within a margin of 10%. Each of the first and second light output components is characterized by a light output characteristic. The light output characteristic for the first light output component varies over time according to a first waveform, and the light output characteristic for the second light output component varies over time according to a second waveform. Each of the first and second waveforms is characterized by a time constant. The time constant has a first value for the first waveform and a second value for the second waveform, the first value being lower than the second value. The time interval for switching between the first and second light output components is between 0.1 seconds and 30 seconds.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
SIGNIFY HOLDING B VEINDHOVEN

International Classification(s)

loading....
  • 2016 Application Filing Year
  • H05B Class
  • 3665 Applications Filed
  • 2767 Patents Issued To-Date
  • 75.50 % Issued To-Date
Click to zoom InYear of Issuance% of Matters IssuedCumulative IssuancesYearly Issuances2016201720182019202020212022202320240255075100

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Kurt, Ralph Eindhoven, NL 124 1304
Sekulovski, Dragan Eindhoven, NL 38 344
Wagemans, Wiebe Eindhoven, NL 11 73

Cited Art Landscape

Load Citation

Patent Citation Ranking

  • 2 Citation Count
  • H05B Class
  • 31.12 % this patent is cited more than
  • 7 Age
Citation count rangeNumber of patents cited in rangeNumber of patents cited in various citation count ranges5291020103211551212101 - 1011 - 2021 - 3031 - 4041 - 5051 - 6061 - 7081 - 9091 - 100100 +050100150200250300350400450500550600650700750800850900950100010501100

Forward Cite Landscape

Load Citation

Maintenance Fees

Fee Large entity fee small entity fee micro entity fee due date
7.5 Year Payment $3600.00 $1800.00 $900.00 Dec 5, 2025
11.5 Year Payment $7400.00 $3700.00 $1850.00 Dec 5, 2029
