Heating unit
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 18, 2020
Grant Date -
Jan 25, 2018
app pub date -
Jan 30, 2015
filing date -
Jan 30, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

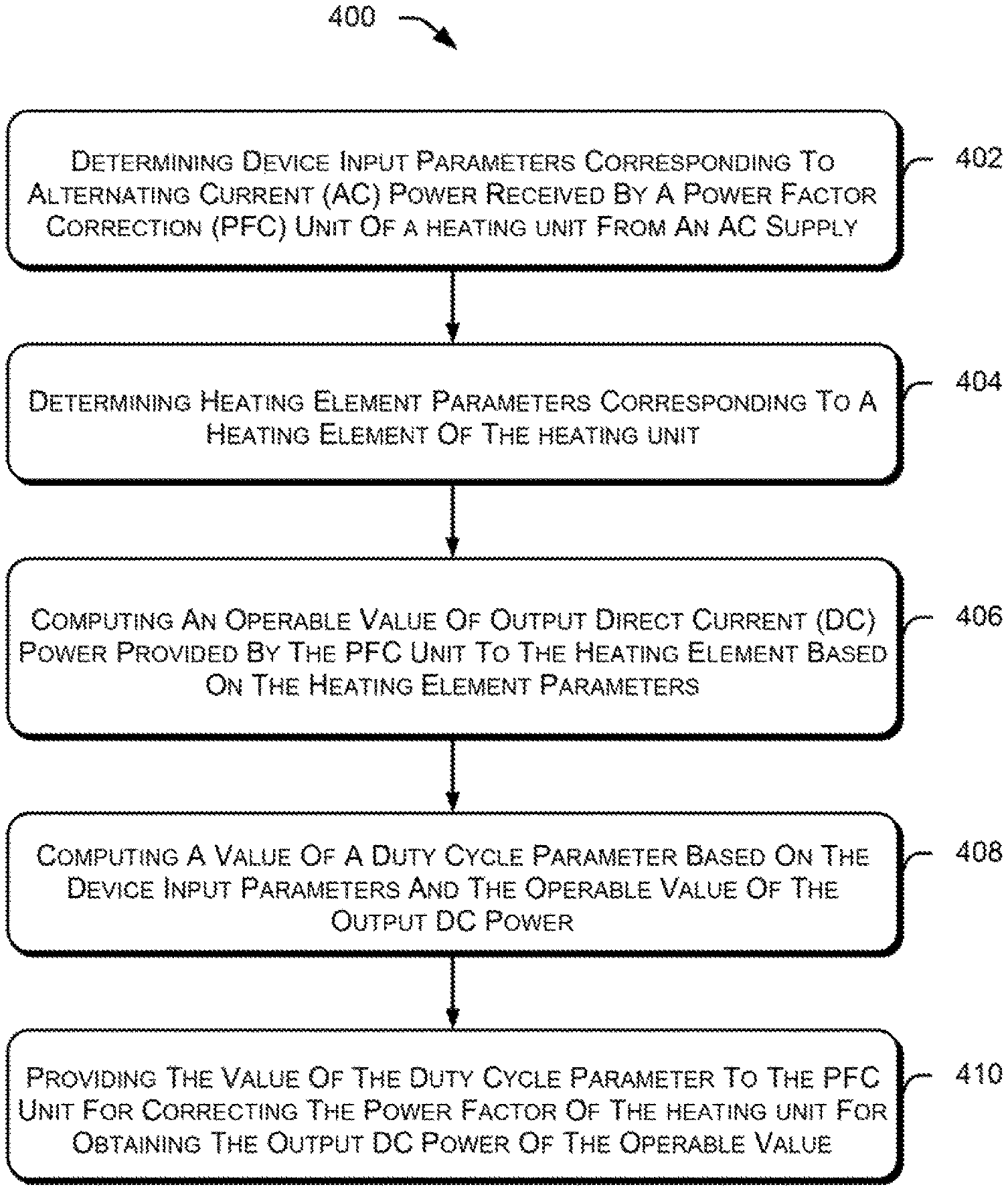

The present subject matter describes a heating unit. The heating unit comprises a heating element and a controlling unit coupled to the heating element to determine a desired value of a direct current (DC) voltage based on heating element parameters. The desired value is a value of DC voltage desired for operation of the heating element. The controlling unit computes a value of a duty cycle parameter based on device input parameters and the desired value of the DC voltage. The heating unit further comprises a power factor correction (PFC) unit coupled to the controlling unit and the heating element to convert an input alternating current (AC) voltage, received by the PFC unit from an AC supply, to a direct current (DC) voltage of the desired value based on the duty cycle parameter. The PFC unit provides the DC voltage to the heating element.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- H02M Class
- 2758 Applications Filed
- 2286 Patents Issued To-Date
- 82.89 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H02M Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 18, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 18, 2032 |
