Apparatus for orthogonal 16-QPSK modulated transmission
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 18, 2018
Grant Date -
Jan 25, 2018
app pub date -
Jul 21, 2016
filing date -
Jul 21, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

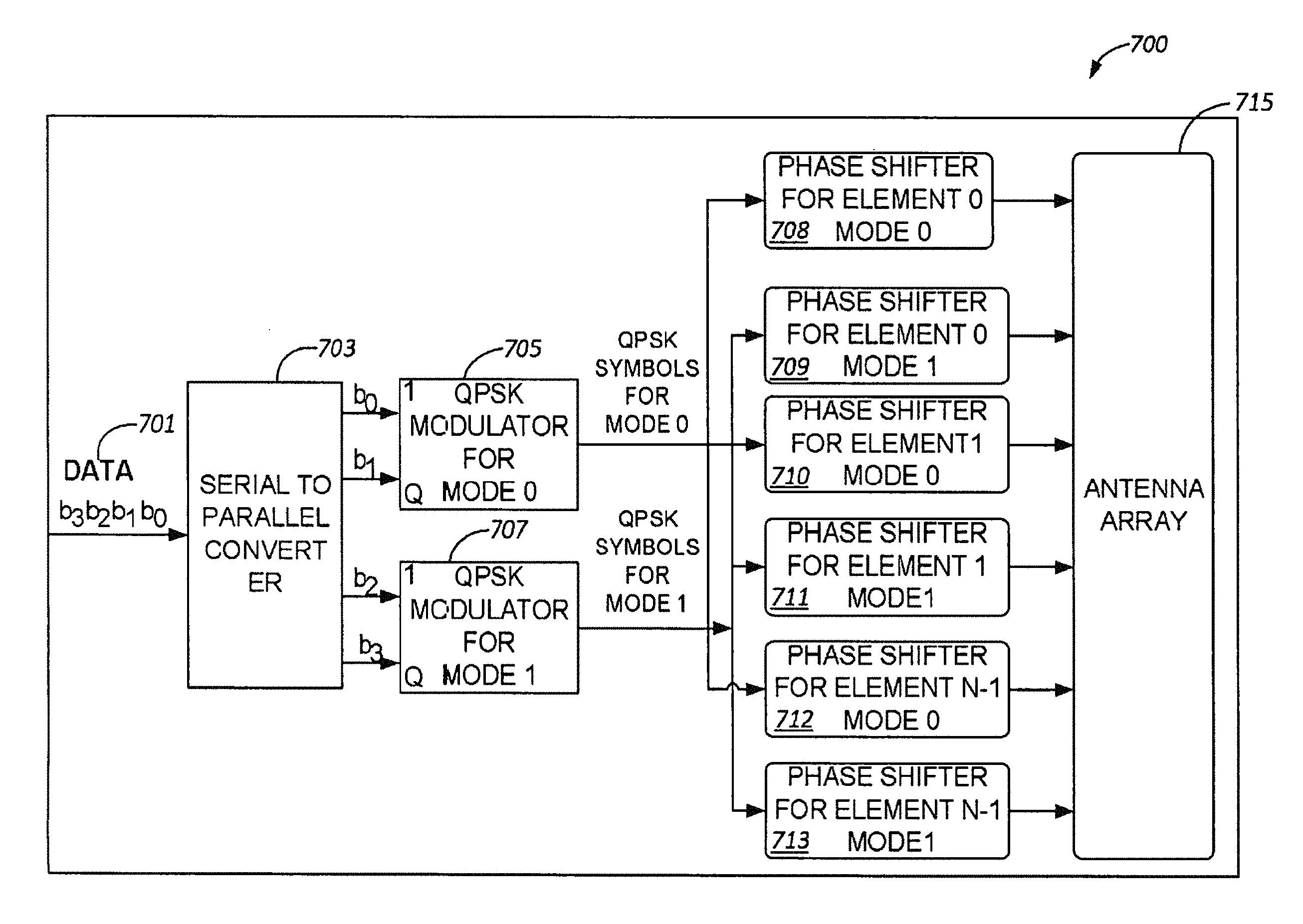

An apparatus, method and article of manufacture comprise a transceiver coupled to a phased array of antenna elements that are configured into pluralities of antenna elements to generate N modes of orthogonal radio waves where N is equal to or greater than 2. The coupling is via a plurality of 16-quadrature phase shift key (16-QPSK) modulators, each which is coupled to a respective one of the pluralities of antenna elements to modulate data onto a respective one of the N modes of orthogonal radio waves, to cause each of the N modes to operate as an independent data channel. For the case of N=2 modes, two 16-QPSK modulators generate independent 16-QPSK constellations, one for the first of the two modes and one for the second of the two modes, such that two 16-QPSK constellations are independent of each other, are orthogonal, and are on the same frequency.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2016 Application Filing Year
- H04L Class
- 37326 Applications Filed
- 27972 Patents Issued To-Date
- 74.94 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04L Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 18, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 18, 2030 |
