Methods and arrangements for channel estimation

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 10097380
APP PUB NO 20180026815A1
SERIAL NO

15722432

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

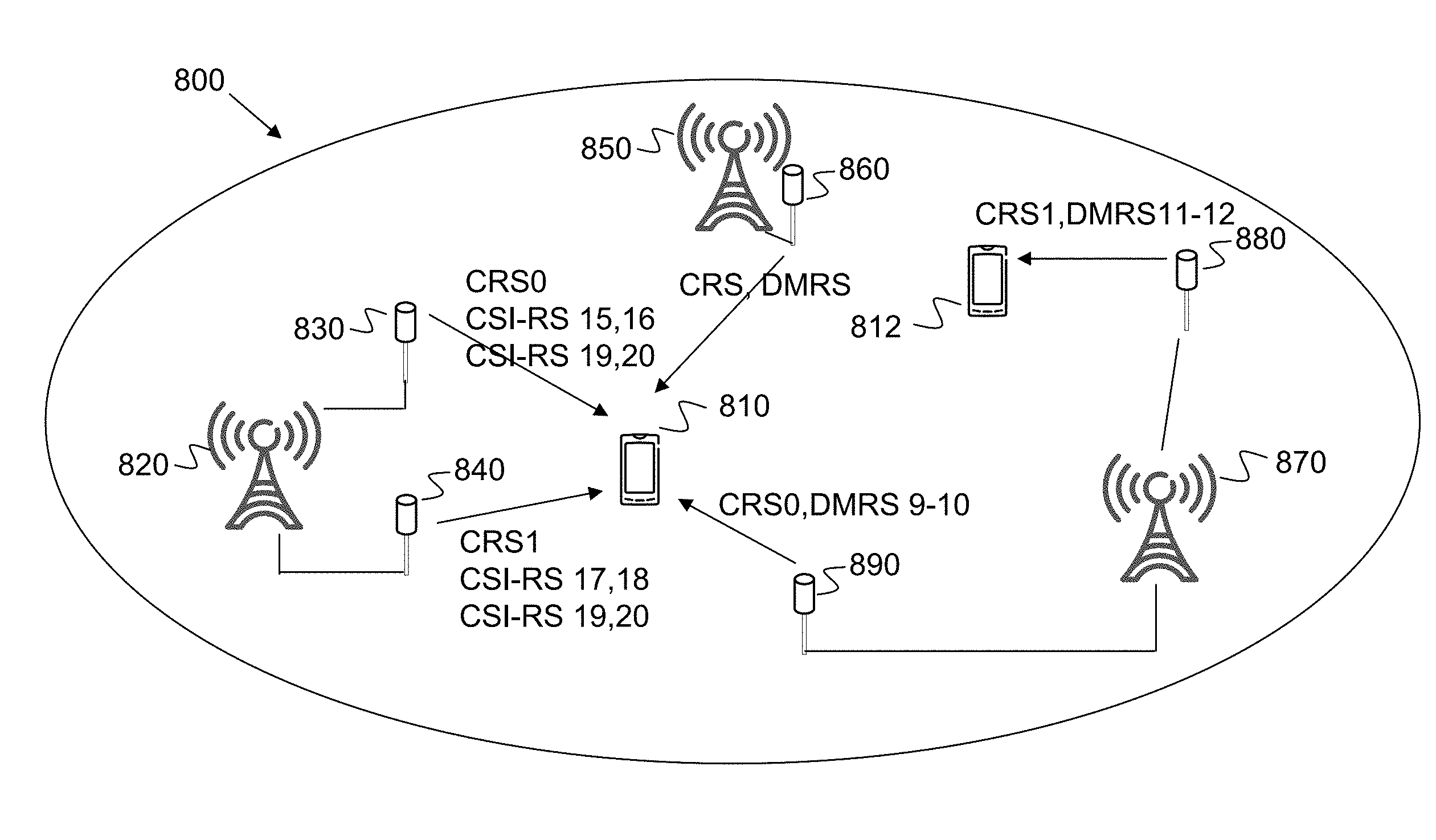

Some embodiments provide a method for channel estimation in a wireless device. According to the method, the wireless device obtains (1010) an indication that a set of antenna ports, or antenna port types, share at least one channel property. The wireless device then estimates (1020) one or more of the shared channel properties based at least on a first reference signal received from a first antenna port included in the set, or having a type corresponding to one of the types in the set. Furthermore, the wireless device performs (1030) channel estimation based on a second reference signal received from a second antenna port included in the set, or having a type corresponding to one of the types in the set, wherein the channel estimation is performed using at least the estimated channel properties.

Loading the Abstract Image... loading....

First Claim

See full text

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
TELEFONAKTIEBOLAGET LM ERICSSON (PUBL)164 83 STOCKHOLM

International Classification(s)

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Jongren, George Stockholm, SE 49 912
Sorrentino, Stefano Solna, SE 257 2843

Cited Art Landscape

Load Citation

Patent Citation Ranking

Forward Cite Landscape

Load Citation

Maintenance Fees

Fee Large entity fee small entity fee micro entity fee due date
7.5 Year Payment $3600.00 $1800.00 $900.00 Apr 9, 2026
11.5 Year Payment $7400.00 $3700.00 $1850.00 Apr 9, 2030
Fee Large entity fee small entity fee micro entity fee
Surcharge - 7.5 year - Late payment within 6 months $160.00 $80.00 $40.00
Surcharge - 11.5 year - Late payment within 6 months $160.00 $80.00 $40.00
Surcharge after expiration - Late payment is unavoidable $700.00 $350.00 $175.00
Surcharge after expiration - Late payment is unintentional $1,640.00 $820.00 $410.00
