Electronic device and system for synchronizing playback time of sound source
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 13, 2020
Grant Date -
Jan 25, 2018
app pub date -
Jul 6, 2017
filing date -
Jul 19, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

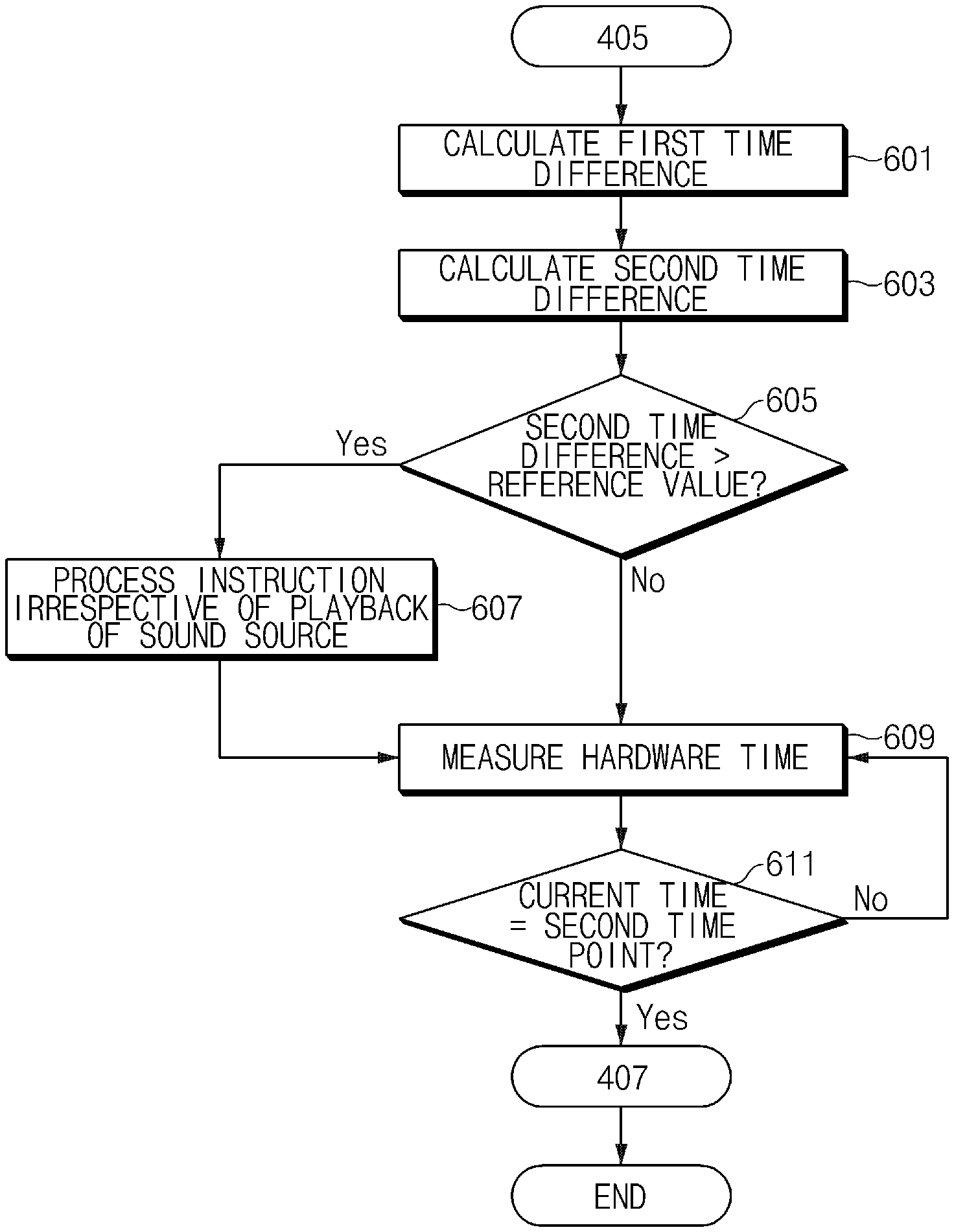

An electronic device is provided. The electronic device includes a hardware timer, a memory, a communication circuit, and a processor. The processor is configured to measure a first time point of the hardware timer in response to a playback event received via the communication circuit from a master paired with the electronic device, calculate a second time point by adding a predefined first time interval to the first time point, and execute an instruction to play back a sound source at the second time point. A first resolution of the hardware timer is set to be higher than a second resolution of an operating system (OS).
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04L Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 13, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 13, 2032 |
