ARRAY SUBSTRATE, PREPARATION METHOD THEREOF AND DISPLAY DEVICE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jul 24, 2017
filing date -
Jul 25, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

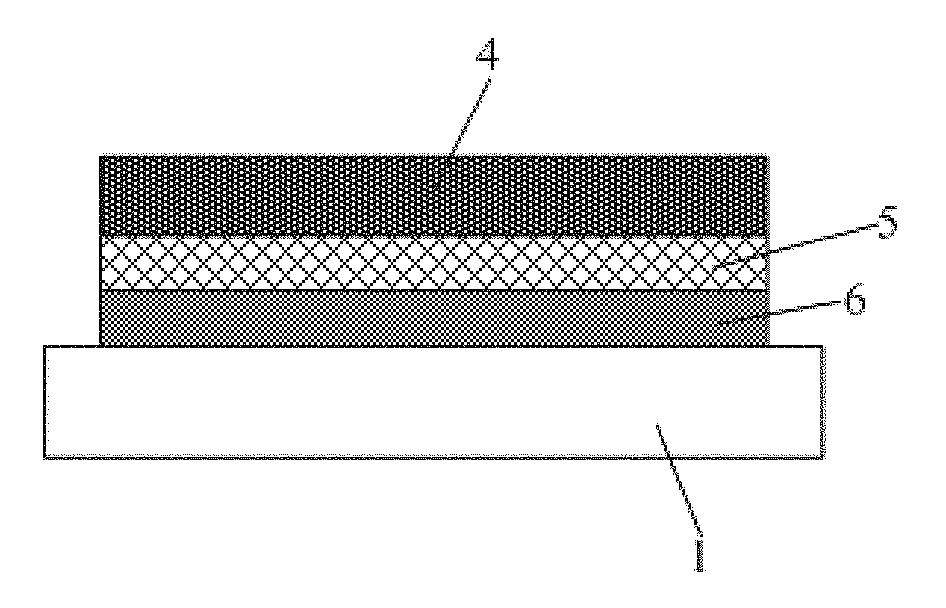

The present invention provides an array substrate comprising a substrate, a metal conductive film layer, and an anti-reflective film layer located between the substrate and the metal conductive film layer, and a method for manufacturing the same, as well as a display device. The method comprises step S1: forming an anti-reflective film layer on a substrate by adjusting the reaction power and/or reactive gas flow during the formation of film by the chemical vapor deposition process; and step S2: forming a metal conductive film layer on the substrate finished in step S1. Through the preparation method of the array substrate, the anti-reflective film layer can have a sand-like granulation structure, such that light reflected from the metal conductive film layer can be blocked, thereby weakening or avoiding the light reflected from the surface of the metal conductive film layer, further improving the display effect of the array substrate.
