Semiconductor device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 15, 2018
Issued Date -
N/A
app pub date -
May 16, 2016
filing date -
Jun 18, 2015
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

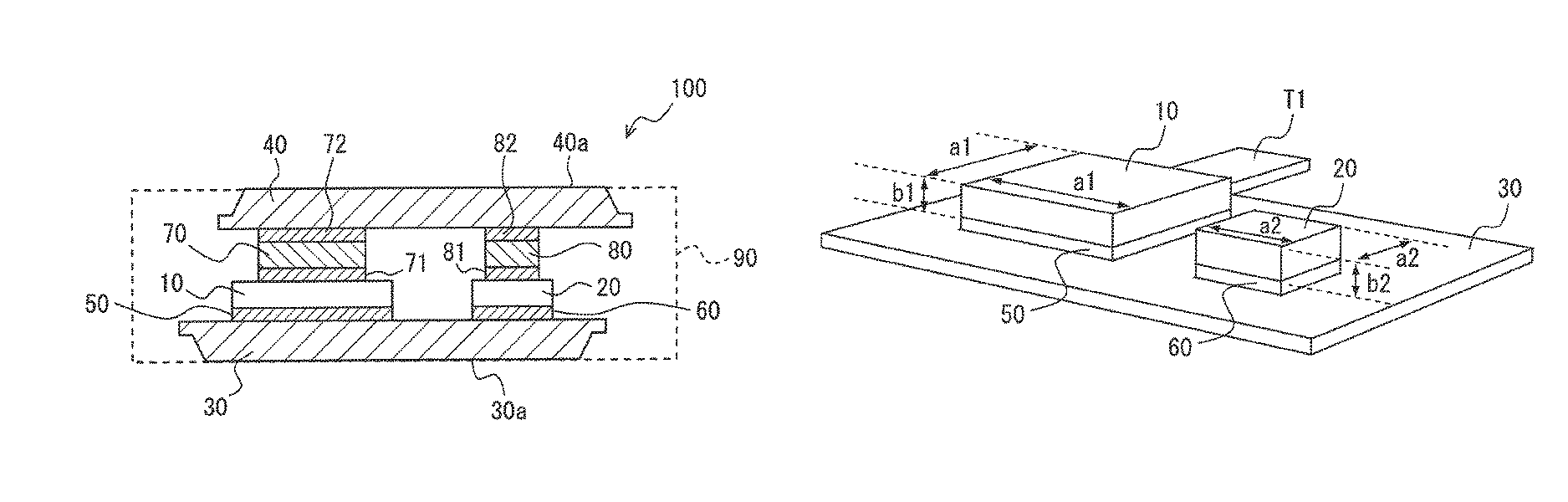

A semiconductor device includes: a first element formed of a first constituent as a main constituent; a second element formed of a second constituent as a main constituent; a heat sink on which the first element and the second element are disposed; a first connection layer electrically connecting the first element to the heat sink; a second connection layer electrically connecting the second element to the heat sink; and a mold resin covering and protecting the first element, the second element and the heat sink. Sizes of the first element and the second element are set so that an equivalent plastic strain increment of the first connection layer is greater than the second connection layer. Accordingly, in the semiconductor device including semiconductor elements formed of different constituents, the elements are thermally protected without providing a temperature detector to the semiconductor element formed of one of the constituents.
