METHOD OF FABRICATING SEMICONDUCTOR DEVICE, VACUUM PROCESSING APPARATUS AND SUBSTRATE PROCESSING APPARATUS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jul 19, 2017
filing date -
Jul 21, 2016
priority date (Note) -
Published
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

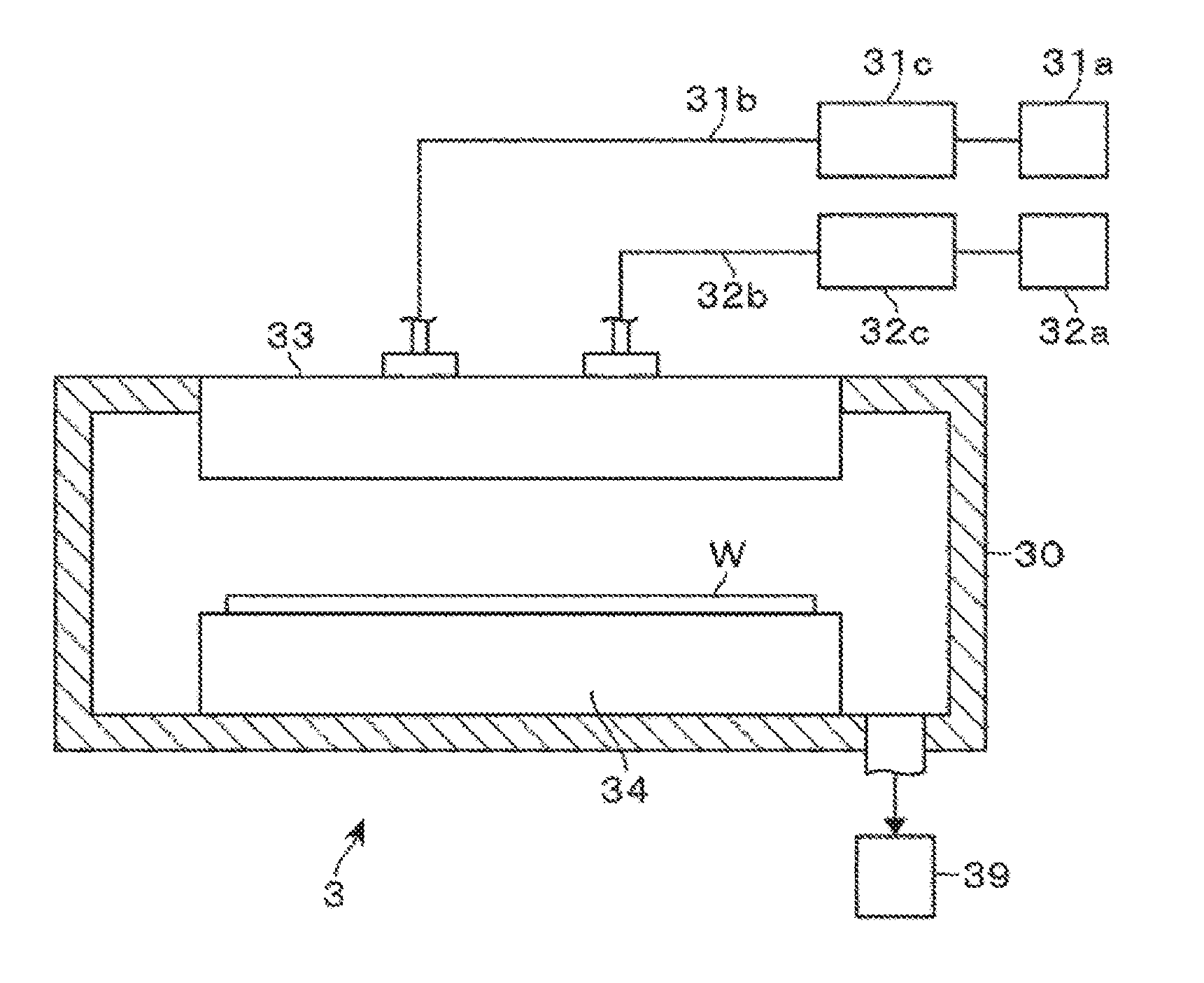

There is provided a method of fabricating a semiconductor device by performing a process on a substrate, which includes: forming a masking film made of a polymer having a urea bond by supplying polymerizing raw materials to a surface of the substrate on which an etching target film formed; forming an etching pattern on the masking film; subsequently, etching the etching target film with a processing gas using the etching pattern; and subsequently, removing the masking film by heating the substrate to depolymerize the polymer.
