Laminated coil component and matching circuit
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 14, 2018
Grant Date -
Jan 25, 2018
app pub date -
Oct 2, 2017
filing date -
Mar 29, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

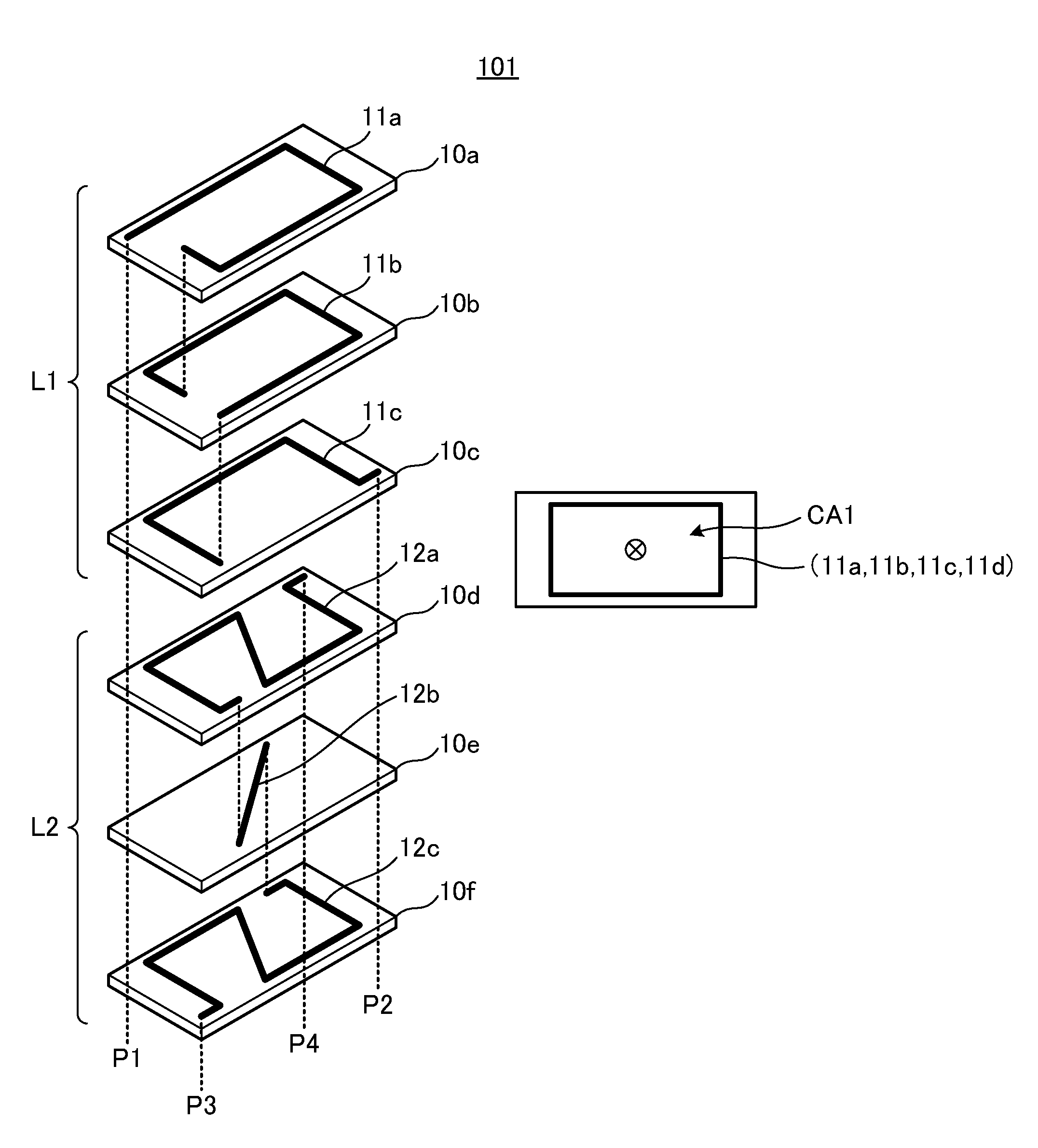

In a laminated coil component, first coil conductor patterns define a coil opening that generates a magnetic flux in a first direction, second coil conductor patterns define a first coil opening that generates a magnetic flux in the first direction, and a second coil opening that generates a magnetic flux in a second direction. A difference in area between the first coil opening and the second coil opening determines a degree of coupling of the coil defined by the first coil conductor pattern and the coil defined by the second coil conductor pattern. This provides a close proximal arrangement of a plurality of coils proximally while significantly reducing or preventing unnecessary coupling between the coils.
