Insulated electric cable
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 16, 2019
Grant Date -
Jan 25, 2018
app pub date -
Sep 25, 2017
filing date -
May 1, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

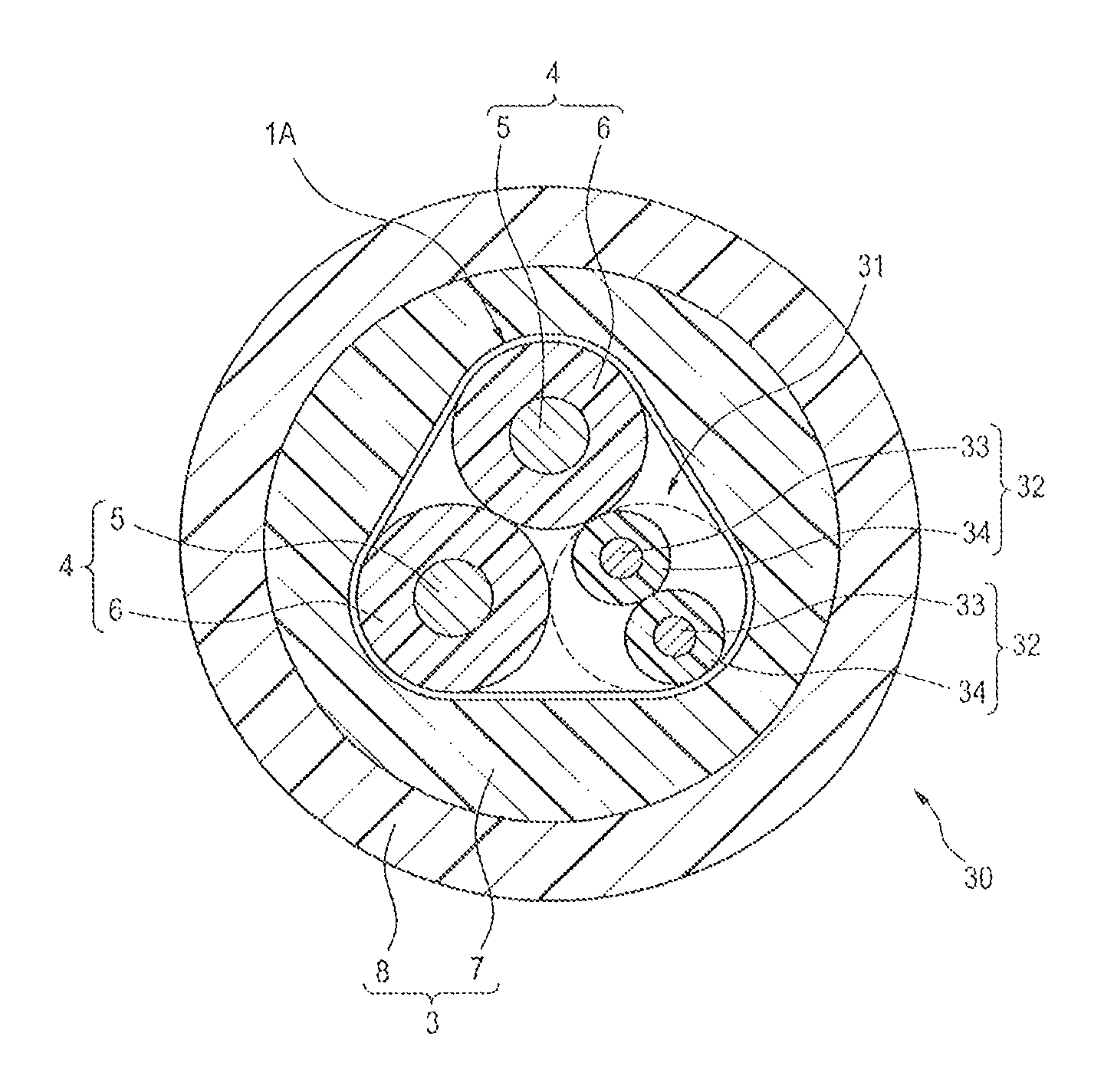

An insulated electric cable 10 has a core member 1 formed by stranding a plurality of core wires 4, each of the core wires 4 including a conductor 5 and an insulating layer 6 covering the conductor 5, an inner sheath 7 covering the core member 1, an outer sheath 8 covering the inner sheath 7, and a paper tape 2 disposed between the core member 1 and the inner sheath 7 in a state that it is wrapped around the core member 1, in which the outer sheath 8 is formed by a flame-retardant polyurethane resin, and a cross-sectional area of each of conductors 5 is within 0.18-3.0 mm2.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2017 Application Filing Year
- H01B Class
- 1443 Applications Filed
- 1031 Patents Issued To-Date
- 71.45 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H01B Class
- 39.71 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 16, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 16, 2030 |
