Wireless device supporting Wi-Fi direct service
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 22, 2018
Issued Date -
N/A
app pub date -
Sep 21, 2017
filing date -
Feb 26, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

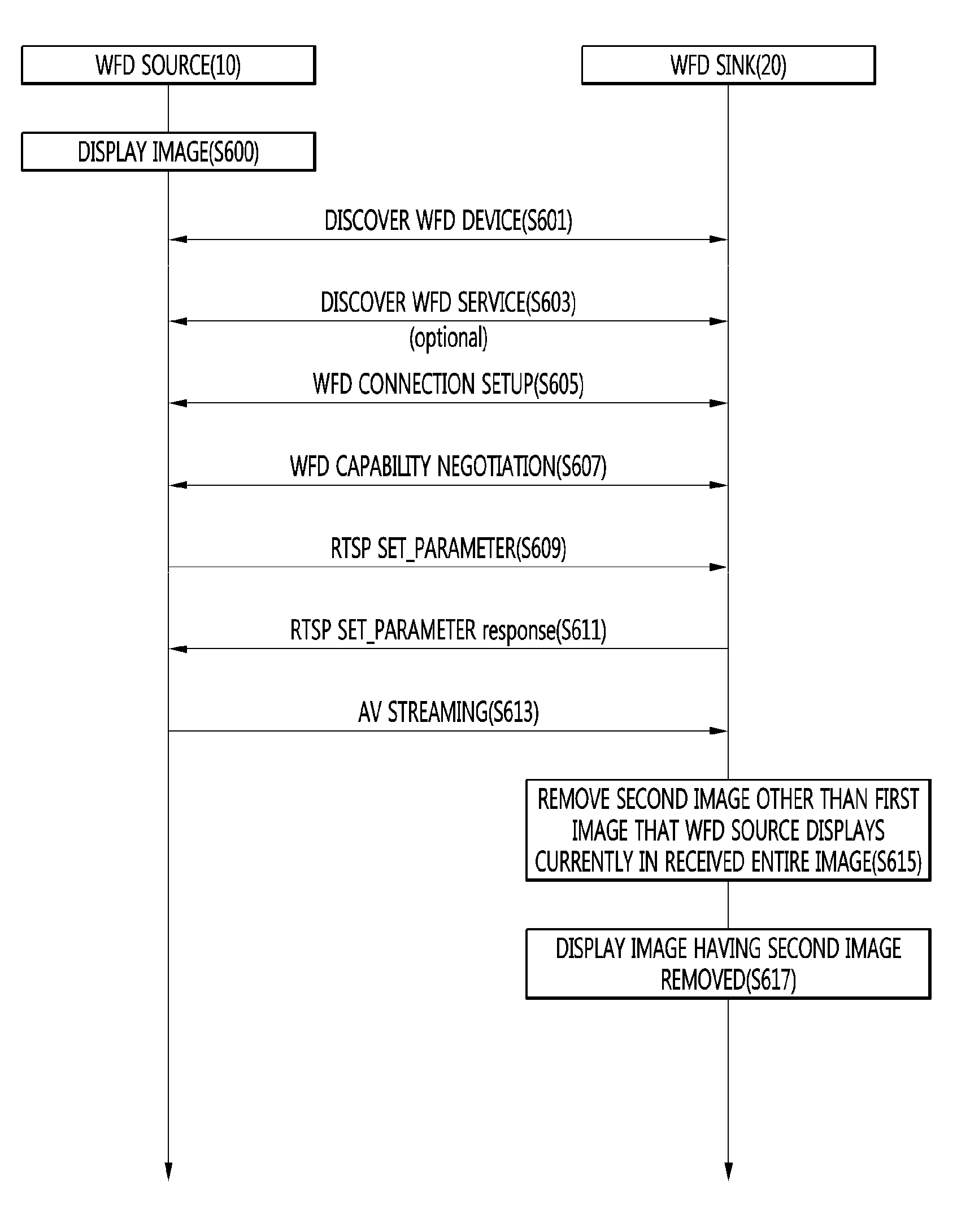

A wireless device supporting Wi-Fi Direct service includes: a display; a communication unit; and a controller configured to cause: transmitting resolution information including a plurality of resolutions that are supported by the wireless device to a second wireless device; receiving an entire image including a first image and a second image from the second wireless device if a resolution of the first image is not one of the plurality of resolutions; displaying the first image by removing the second image from the received entire image when the entire image is received; and receiving the first image from the second wireless device without the second image if the resolution of the first image is included in the resolution information, the second image being an image that is added to the first image such that a resolution of the received entire image corresponds to one of the plurality of resolutions.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- H04N Class
- 19055 Applications Filed
- 14406 Patents Issued To-Date
- 75.61 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H04N Class
- 27.70 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 22, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 22, 2029 |
