Timing controller, timing control method and display panel
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 25, 2020
Grant Date -
Jan 25, 2018
app pub date -
Apr 15, 2016
filing date -
Jun 25, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

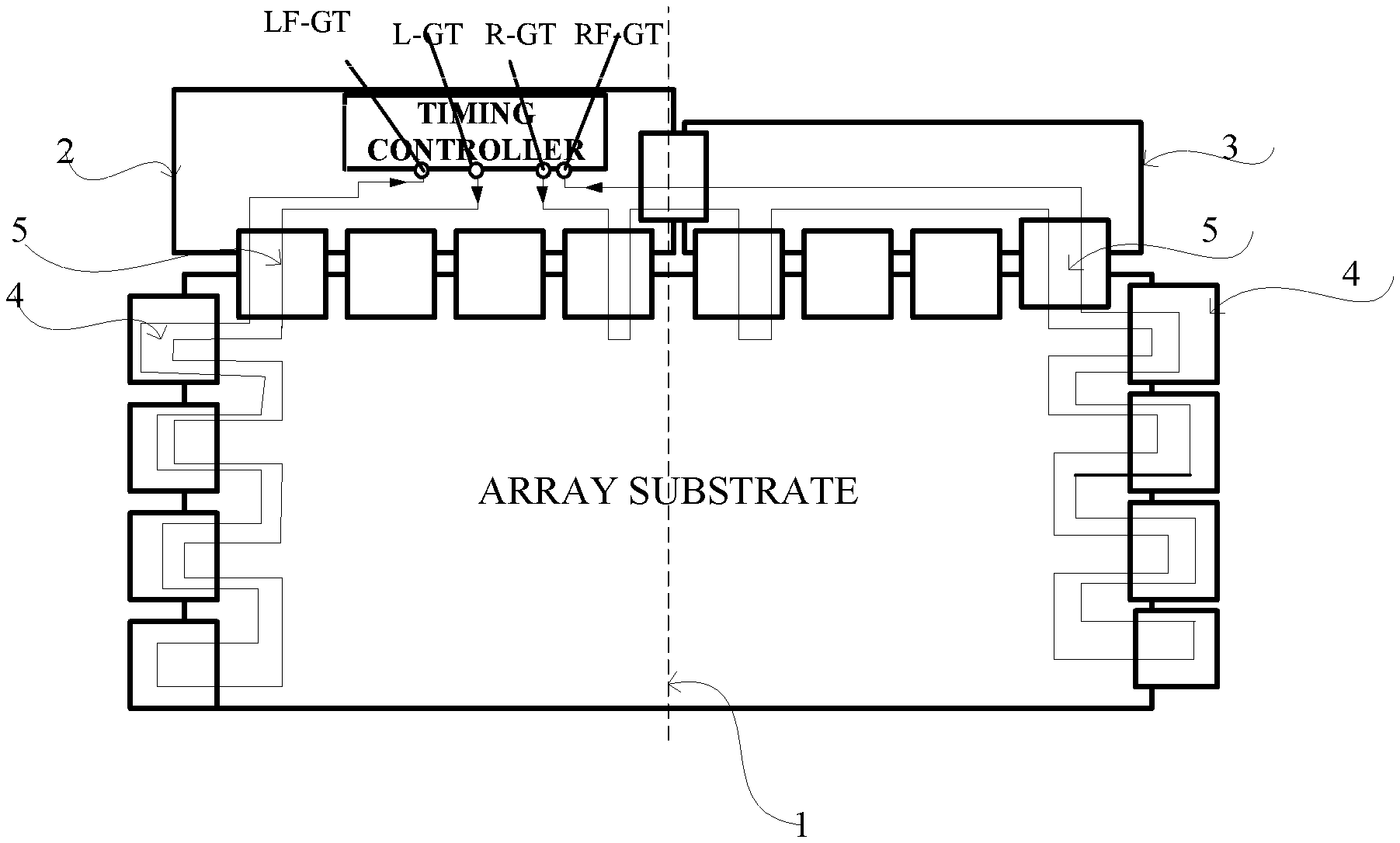

A timing controller includes a synchronization module for controlling at least one of a sending time point of a first drive control signal and a sending time point of a second drive control signal, such that the first drive control signal reaches a first driving circuit at the same time point as the second drive control signal reaches a second driving circuit. By controlling the sending time points at which the first drive control signal and the second drive control signal are sent, the two drive control signals are enabled to simultaneously reach the two driving circuits, to achieve the synchronous control of such two driving circuits.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G09G Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 25, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 25, 2032 |
