Automated scan planning for follow-up magnetic resonance imaging
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jan 15, 2016
filing date -
Jan 30, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

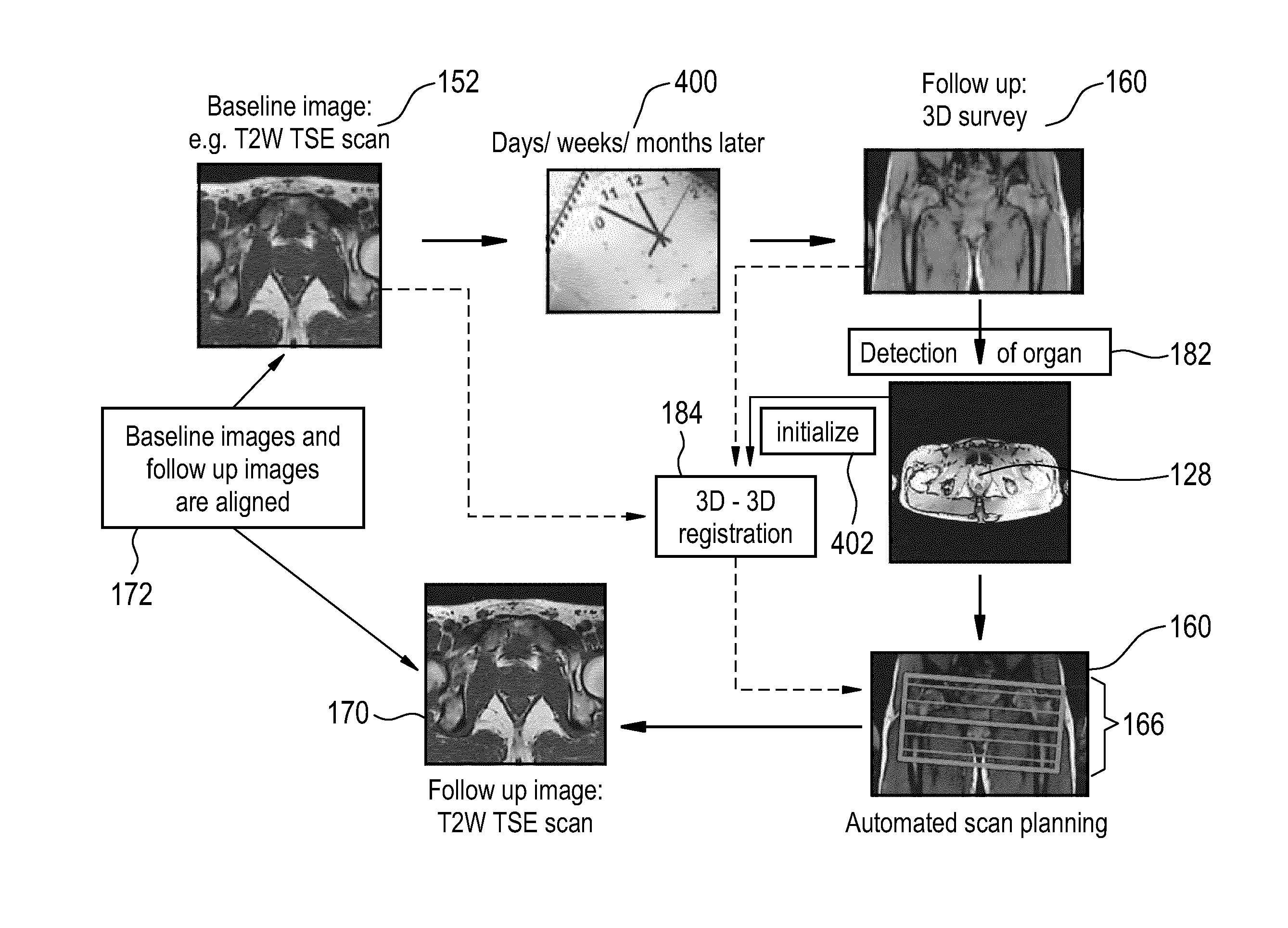

An MRI system (100) acquires magnetic resonance data (158, 168) from a subject. The execution of machine-executable instructions (180, 182, 184, 186, 188) causes a processor (144) to: receive (300) a baseline medical image (152) data descriptive of one or more internal structures (126) of the subject; receive (302) a baseline scan geometry (154); acquire (304) survey magnetic resonance data (158) from the subject by controlling the magnetic resonance imaging system with survey pulse sequence data, wherein the survey pulse sequence data comprises instructions for controlling the magnetic resonance imaging system to acquire magnetic resonance data descriptive of a three-dimensional volume (124) of the subject; reconstruct (306) the survey magnetic resonance data into a three-dimensional survey image (160); calculate (308) location data by processing the three dimensional survey image with an organ detection algorithm (182), wherein the location data is descriptive of a target region (128); assign (310) a predefined region of interest (130) to the three dimensional survey image using the location data; calculate (312) registration data (164) by registering the baseline medical image to the three dimensional survey image.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- G06T Class
- 11416 Applications Filed
- 7909 Patents Issued To-Date
- 69.28 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- G06T Class
- 22.86 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 24, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 24, 2030 |
