Scheduling independent and dependent operations for processing
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 2, 2019
Grant Date -
Jan 25, 2018
app pub date -
Jul 19, 2016
filing date -
Jul 19, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

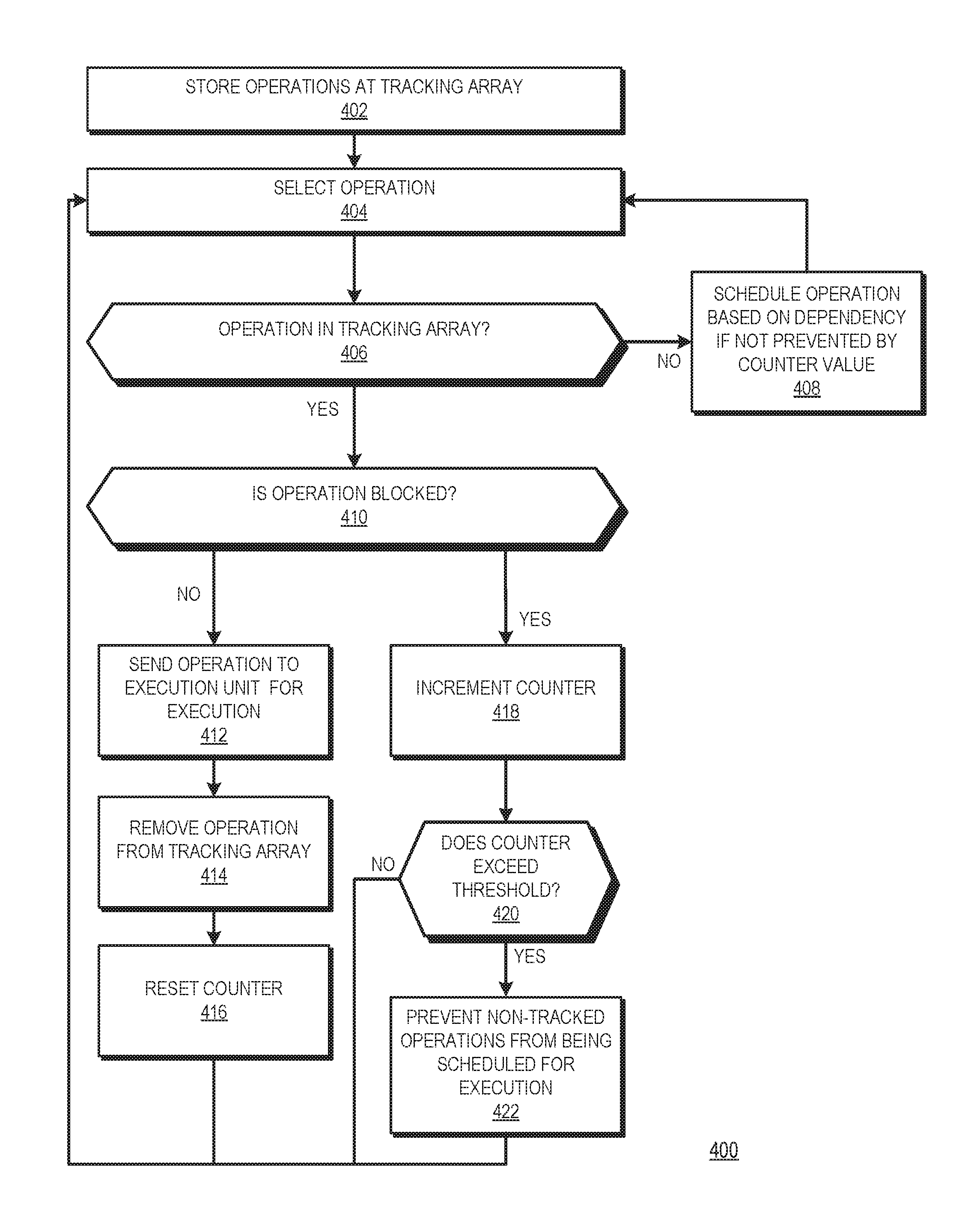

A processor includes an operations scheduler to schedule execution of operations at, for example, a set of execution units or a cache of the processor. The operations scheduler periodically adds sets of operations to a tracking array, and further identifies when an operation in the tracked set is blocked from execution scheduling in response to, for example, identifying that the operation is dependent on another operation that has not completed execution. The processor further includes a counter that is adjusted each time an operation in the tracking array is blocked from execution, and is reset each time an operation in the tracking array is executed. When the value of the counter exceeds a threshold, the operations scheduler prioritizes the remaining tracked operations for execution scheduling.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- G06F Class
- 60255 Applications Filed
- 46180 Patents Issued To-Date
- 76.65 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G06F Class
- 0 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 2, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 2, 2031 |
