Array substrate, manufacturing method thereof, repairing method thereof, display panel and display device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 5, 2019
Grant Date -
Jan 25, 2018
app pub date -
Jul 17, 2017
filing date -
Jul 25, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

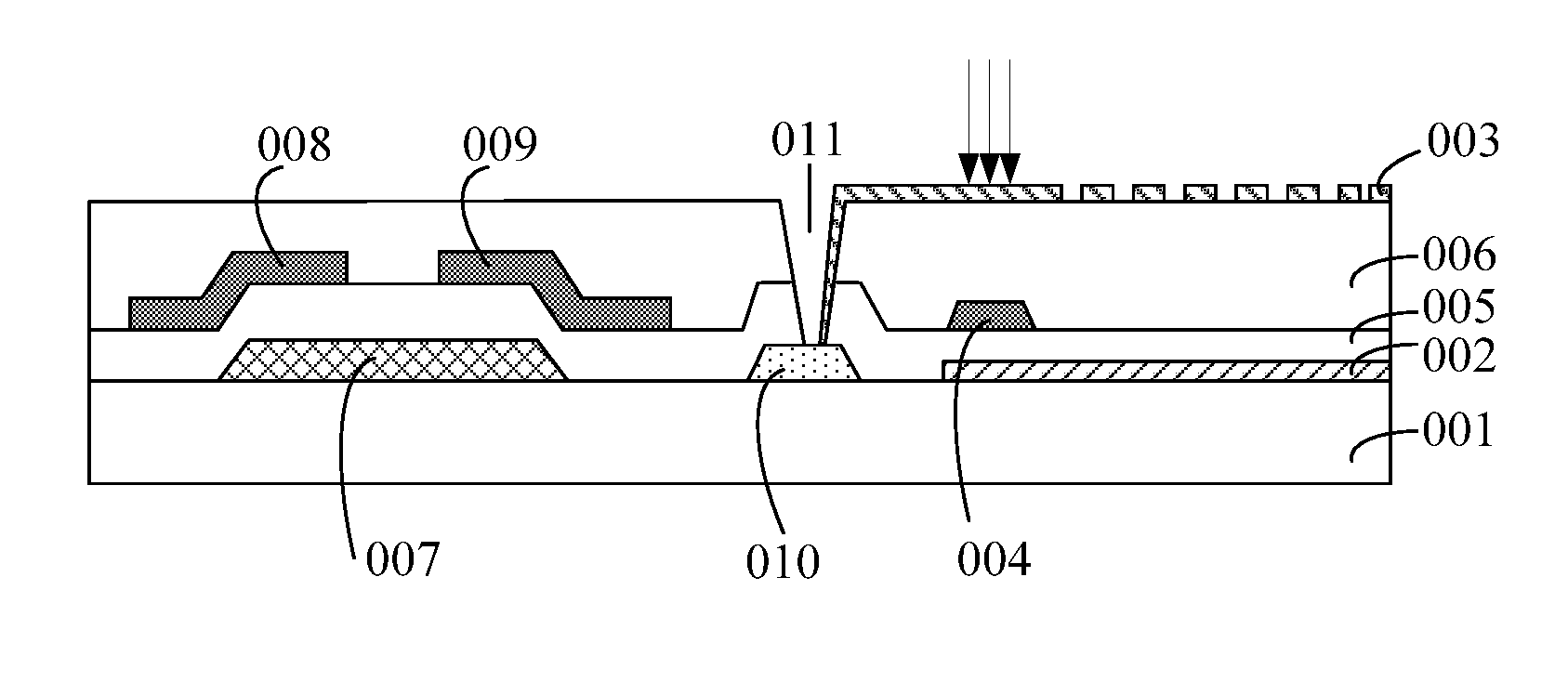

The present disclosure provides an array substrate, a manufacturing method thereof, a repairing method thereof, a display panel and a display device. The array substrate includes a base substrate, and a pixel electrode and a common electrode superimposed one on another on the base substrate. An electrically conductive layer is arranged at a region where the pixel electrode and the common electrode overlap each other. The electrically conductive layer is at least insulated from one of the pixel electrode and the common electrode.
