Systems and methods for non-flammable indication of incendivity
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 4, 2018
Grant Date -
Jan 25, 2018
app pub date -
Jul 19, 2016
filing date -
Jul 19, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

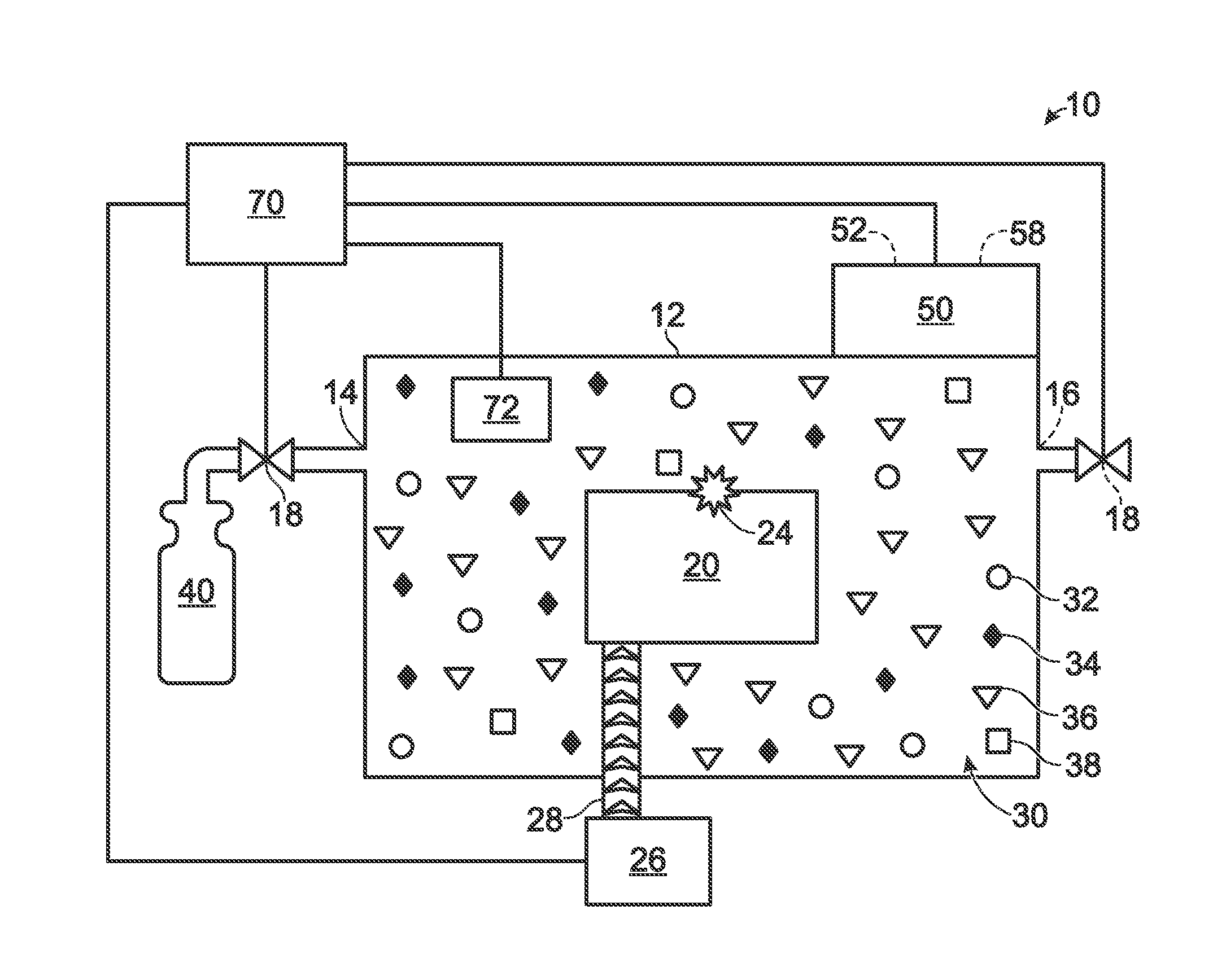

Incendivity test systems and methods are disclosed. Incendivity test systems include a non-flammable gas mixture and a test article in a test chamber. The non-flammable gas mixture includes a thermally reactive reagent that is formulated to thermally react to produce a reaction product. Incendivity test systems also include an energy source configured to apply an energy discharge such as a simulated lightning strike to the test article. Incendivity test systems also include a detection device configured to measure an indicator species in the non-flammable gas mixture (e.g., the thermally reactive reagent and/or the reaction product). Incendivity test methods include contacting the test article with the non-flammable gas mixture, applying the energy discharge to the test article, and then measuring the amount of the indicator species and determining the incendivity of the test article in response to the energy discharge based upon the amount of the indicator species.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- G01N Class
- 12375 Applications Filed
- 8515 Patents Issued To-Date
- 68.81 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G01N Class
- 40.30 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 4, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 4, 2030 |
