METHODS AND APPARATUS FOR INFRARED AND MID-INFRARED SENSING
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Feb 6, 2017
filing date -
Jan 26, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

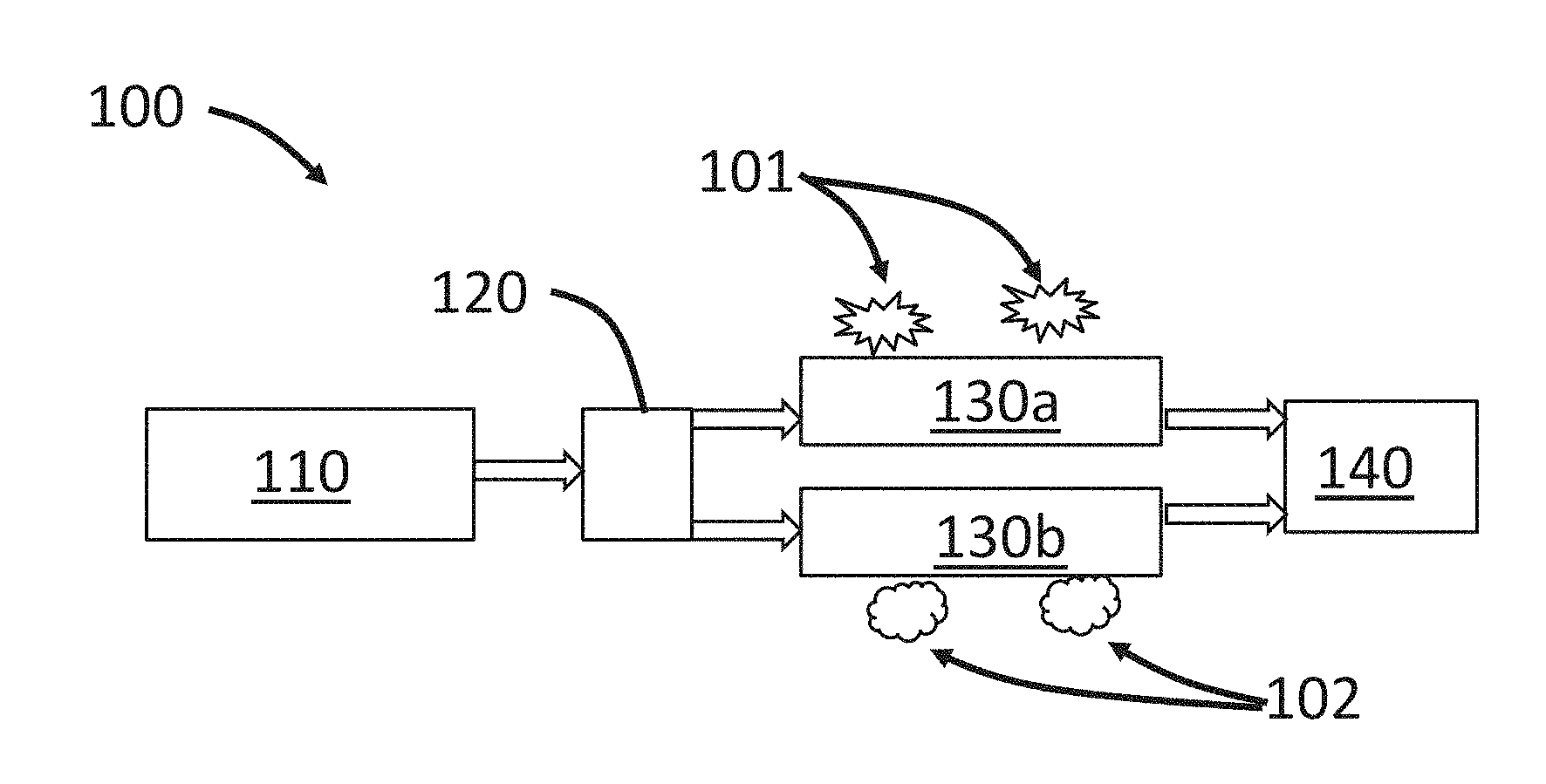

A sensing apparatus includes a light source to transmit a light beam, an input switch, a first sensing element, a second sensing element, and a detector. The input switch receives the light beam and includes a phase change material having a first state and a second state. The first sensing element receives the light beam from the input switch when the phase change material is in the first state and produces a first change in the light beam in response to a presence of a first analyte. The second sensing element receives the light beam from the input switch when the phase change material is in the second state and produces a second change in the light beam in response to a presence of a second analyte. The detector detects the first change and/or the second change in the light beam.
