Wheel localization from reference magnetic field and angular rotation information in TPMS application
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 7, 2019
Grant Date -
Jan 25, 2018
app pub date -
Jul 22, 2016
filing date -
Jul 22, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

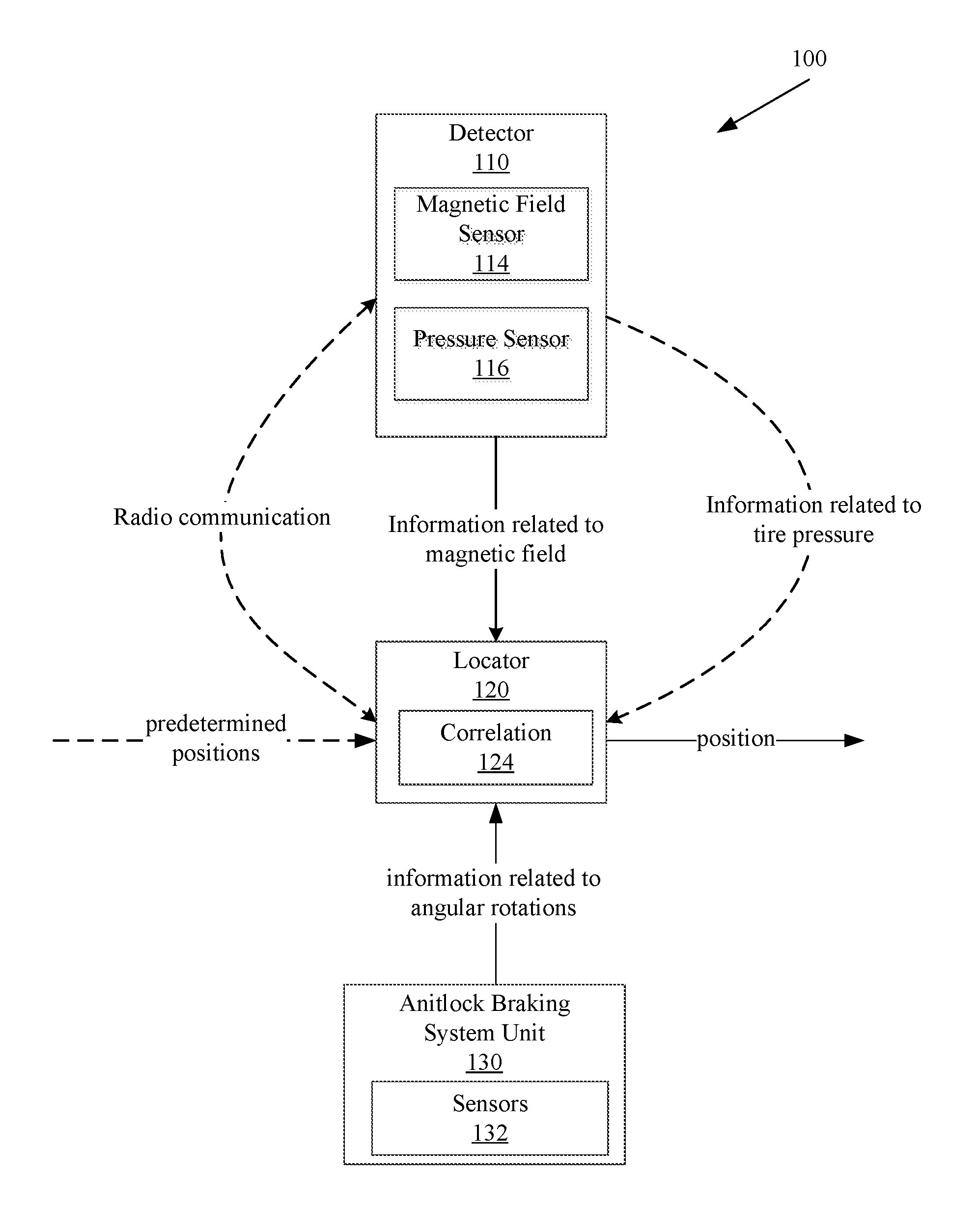

Embodiments may provide a system, a wheel localizer, a wheel localization device, or methods for locating a position of at least one wheel out of a plurality of wheels of a vehicle. In one embodiment, a system comprises a detector that obtains information related to a reference magnetic field in which the at least one wheel rotates, an antilock braking system (ABS) unit that obtains information related to angular rotations of the plurality of wheels, and a locator that determines the position of the at least one wheel based, at least in part, on the information related to the reference magnetic field and the information related to the angular rotations of plurality of wheels, where the position comprises a wheel location from among the plurality of wheels. The reference magnetic field may be the earth's magnetic field.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2016 Application Filing Year
- B60T Class
- 1075 Applications Filed
- 884 Patents Issued To-Date
- 82.24 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60T Class
- 0 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 7, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 7, 2030 |
