Heating and cooling cup holder
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 23, 2019
Grant Date -
Jan 25, 2018
app pub date -
Nov 14, 2016
filing date -
Jul 21, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

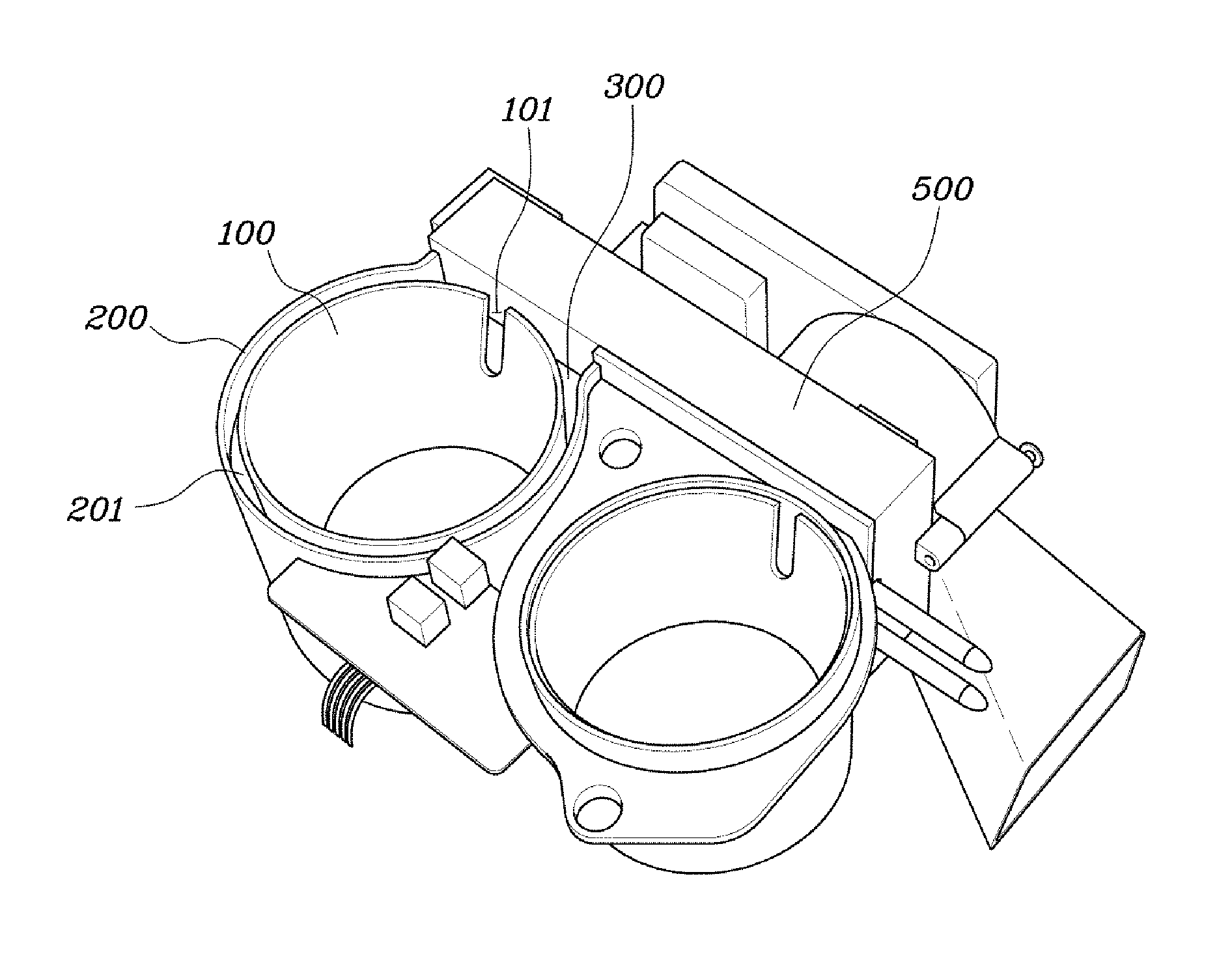

A cooling and heating cup holder may include an inner body accommodating a drink container, a heat exchanger including an inlet formed therein while discharging air introduced by the inlet into the inner body through a blower hole, heat exchanging pins provided in the heat exchanger, a thermoelectric element having a first side entirely adhered to a rear surface of the heat exchanger, a heat radiator coupled to a second side of the thermoelectric element, an outer body forming a circulating space between the inner body and the outer body, and a blower fan transferring air to the inlet of the heat exchanger.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- F25B Class
- 1355 Applications Filed
- 932 Patents Issued To-Date
- 68.79 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F25B Class
- 45.48 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 23, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 23, 2030 |
