Indoor unit and air-conditioning apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 28, 2019
Grant Date -
Jan 25, 2018
app pub date -
May 20, 2015
filing date -
May 20, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

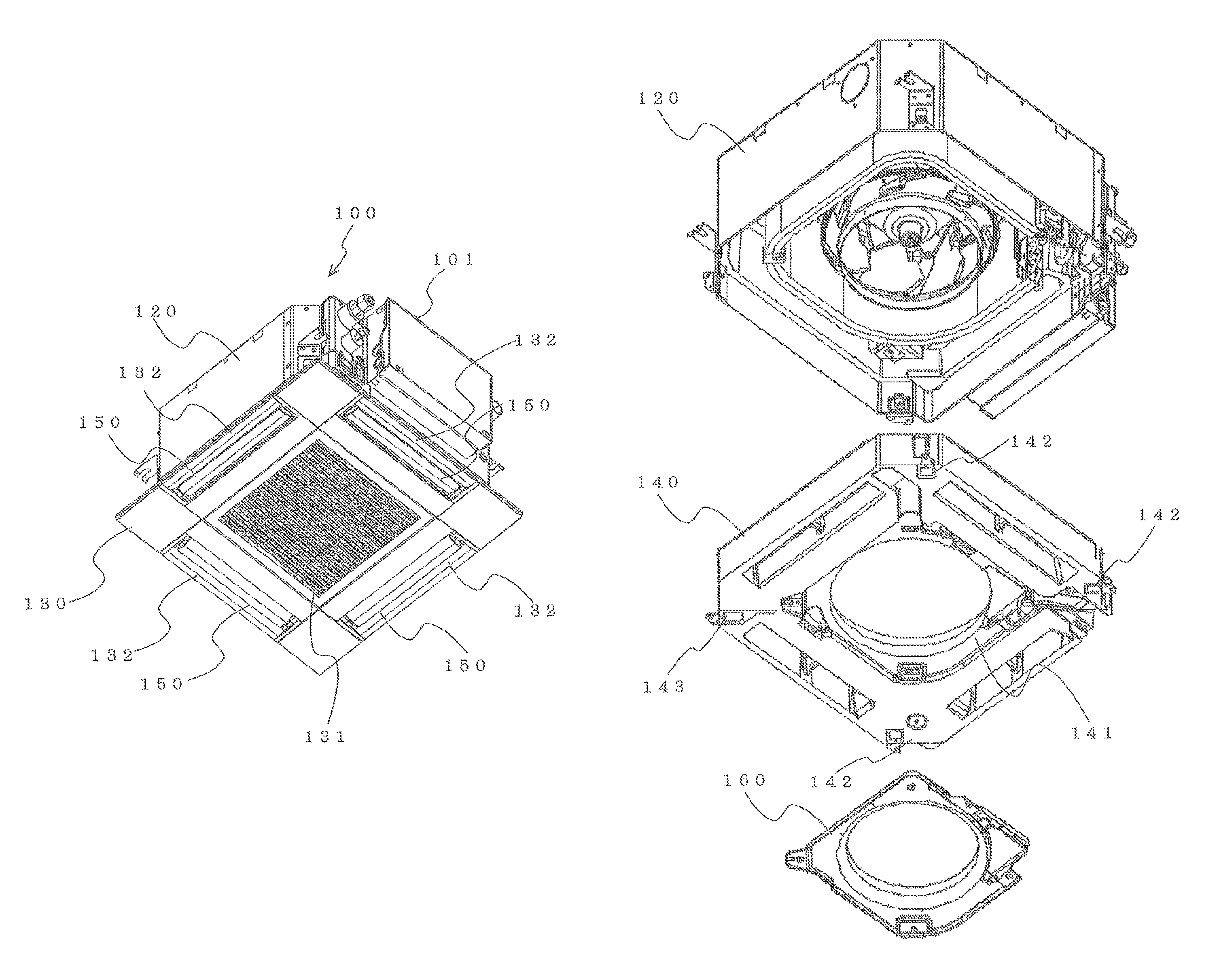

An indoor unit includes: a casing including a top plate and lateral plates; a motor mounted to a central part on an inner surface side of the top plate; a turbofan fixed to a rotary shaft of the motor and configured to rotate through drive of the motor; a drain pan received in the casing and mounted to the lateral plates of the casing; and a bellmouth mounted to the drain pan and configured to rectify a fluid flowing into the casing. The drain pan includes a positioning fitting having: a casing-fixing threaded hole for allowing the drain pan to be fixed to the casing with a screw; and a bellmouth-fixing threaded hole for allowing the bellmouth to be fixed to the drain pan with a screw.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- F24F Class
- 1293 Applications Filed
- 947 Patents Issued To-Date
- 73.25 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F24F Class
- 0 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 28, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 28, 2030 |
