Connector and shielding body
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 25, 2020
Grant Date -
Jan 25, 2018
app pub date -
Jan 6, 2016
filing date -
Jan 30, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

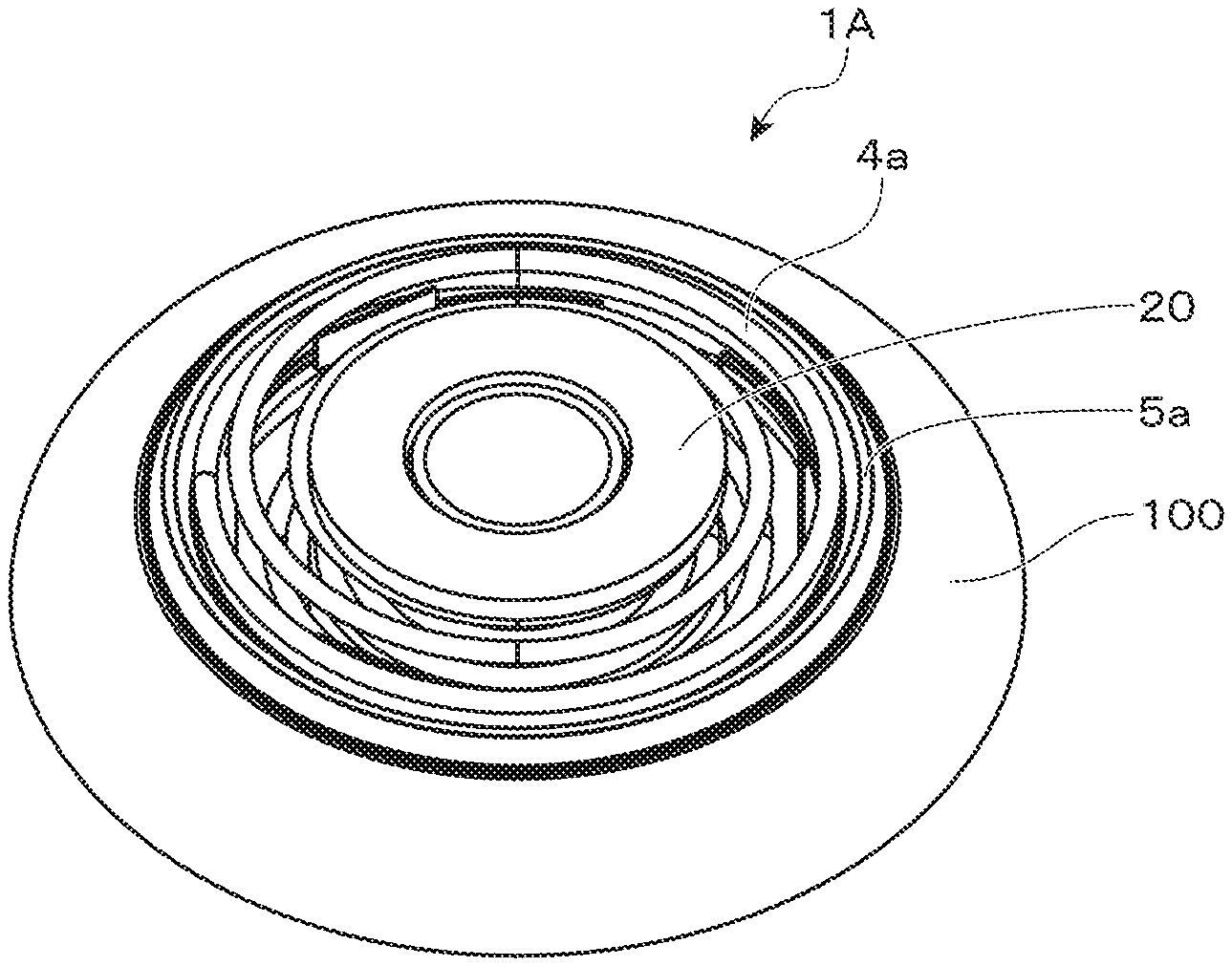

A connector (1) that comprises first and second surfaces (20a) and (30a) disposed opposingly with an interval therebetween, said interval allowing the shielding body 100 to be inserted therein; a pressing member (4) having a through hole (40) and formed so as to be capable of extending and contracting by winding a prescribed wire material spirally around the through hole (40) as center such that a curvature thereof varies continuously around the through hole; and a holding part (31) that is inserted into a hole (103) formed in the shielding body and the through hole (40) and maintains a specific distance between the first and second surfaces (20a, 30a); wherein the pressing member (4a) and (4b) comprises: a first pressing member (4a) disposed between the first surface (20a) and the shielding body (100) such that a small-curvature side thereof in the extension and contraction direction faces the shielding body (100); and a second pressing member (4b) disposed between the second surface (30a) and the shielding body (100) such that a small-curvature side thereof in the extension and contraction direction faces the shielding body (100). Due to such a configuration, vibration from the vibrating body (10) is absorbed and transmission of the vibration to the shielding body (100) can be suppressed.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- F01N Class
- 1356 Applications Filed
- 1069 Patents Issued To-Date
- 78.84 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F01N Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 25, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 25, 2032 |
