Vehicle controlling device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 9, 2019
Grant Date -
Jan 25, 2018
app pub date -
Dec 16, 2015
filing date -
Jan 30, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

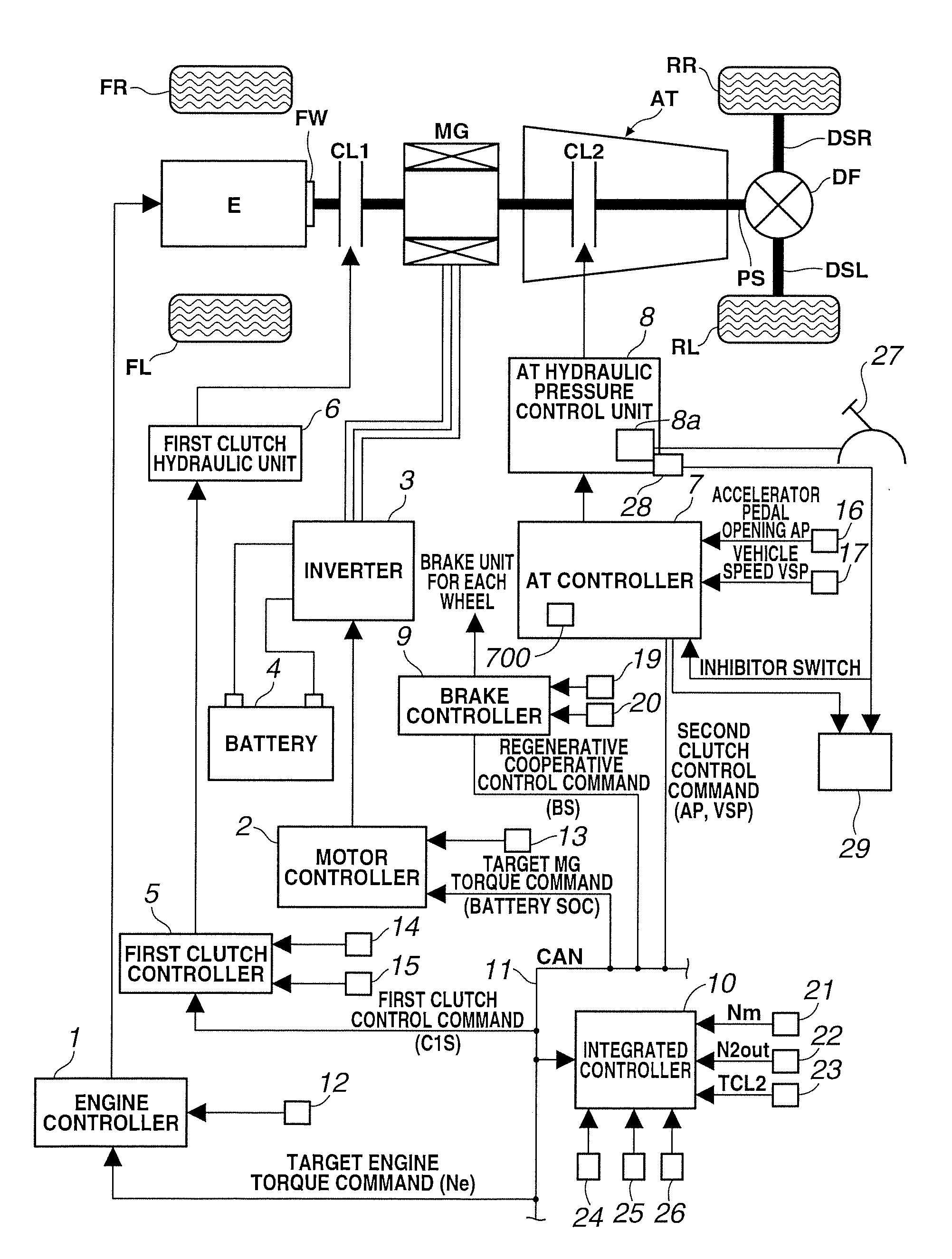

A vehicle controlling device has a frictional engagement element provided between a drive motor and a driving wheel; a shifting unit capable of selecting a travel range or a non-travel range; first obtaining unit configured to, during selection of the travel range, obtain a first parameter including at least a first motor torque value that is a torque value of the drive motor; second obtaining unit configured to, during selection of the non-travel range, obtain a second parameter including at least a second motor torque value that is a torque value of the drive motor; and operating unit configured to, on the basis of the first and second parameters, calculate a zero point hydraulic pressure command value at which the frictional engagement element starts to generate a torque capacity. It is therefore possible to detect a zero point of a clutch between the drive motor and the driving wheel.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60K Class
- 0 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 9, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 9, 2031 |
