Multi-ply heat shield assembly with integral band clamp for a gas turbine engine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 6, 2019
Grant Date -
Jan 25, 2018
app pub date -
Jul 20, 2016
filing date -
Jul 20, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Calculated Rating
|
US Family Size
|
Non-US Coverage
|
Abstract

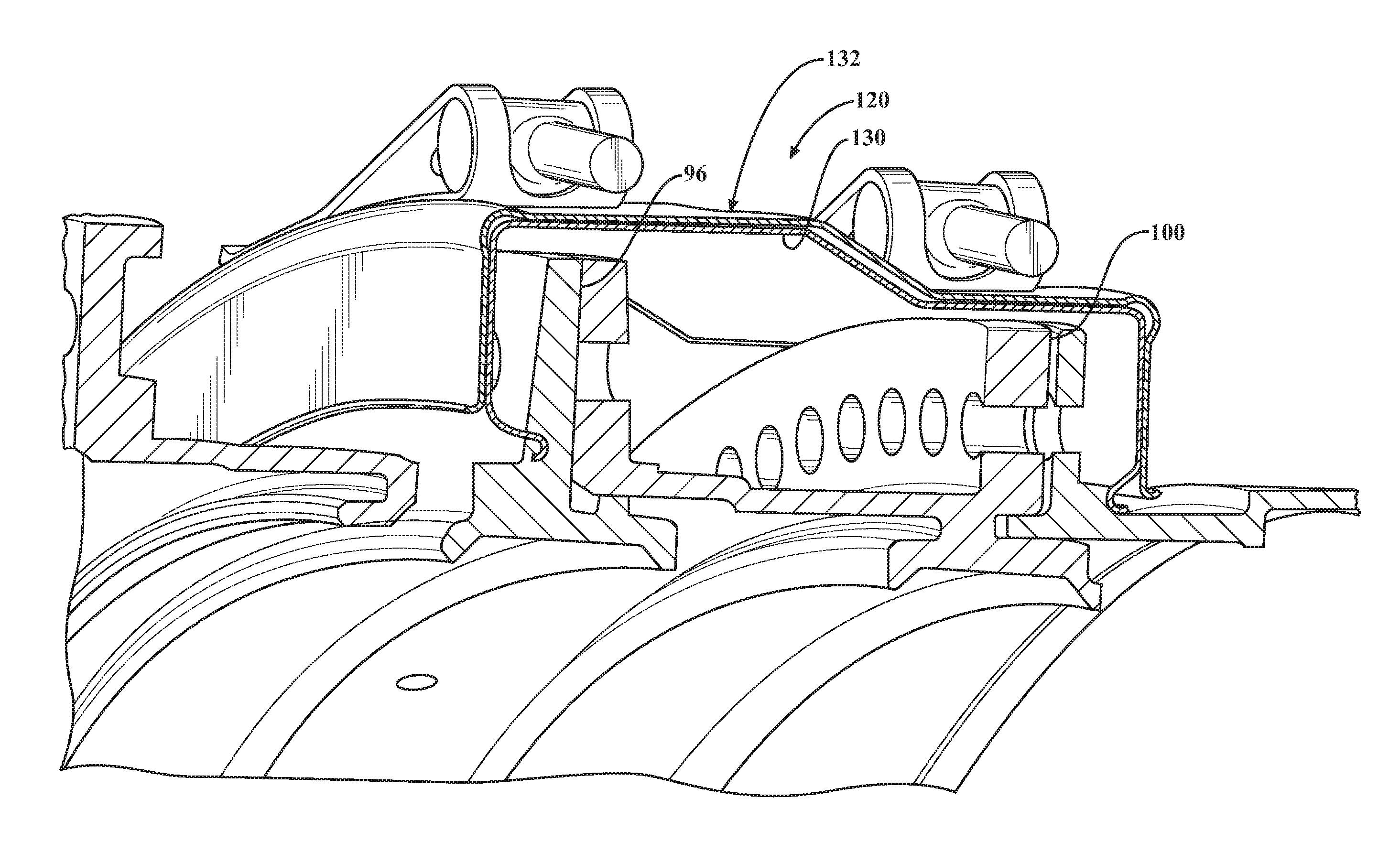

A heat shield assembly for a gas turbine engine includes a first heat shield ply assembly defined about an axis; a second heat shield ply assembly defined about the axis, the second heat shield ply assembly receivable at least partially over the first heat shield assembly and a band clamp mounted to the second heat shield assembly to circumferentially retain the first heat shield ply assembly and the second heat shield ply assembly.
