BLADE WITH PARALLEL CORRUGATED SURFACES ON INNER AND OUTER SURFACES
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jul 22, 2016
filing date -
Jul 22, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

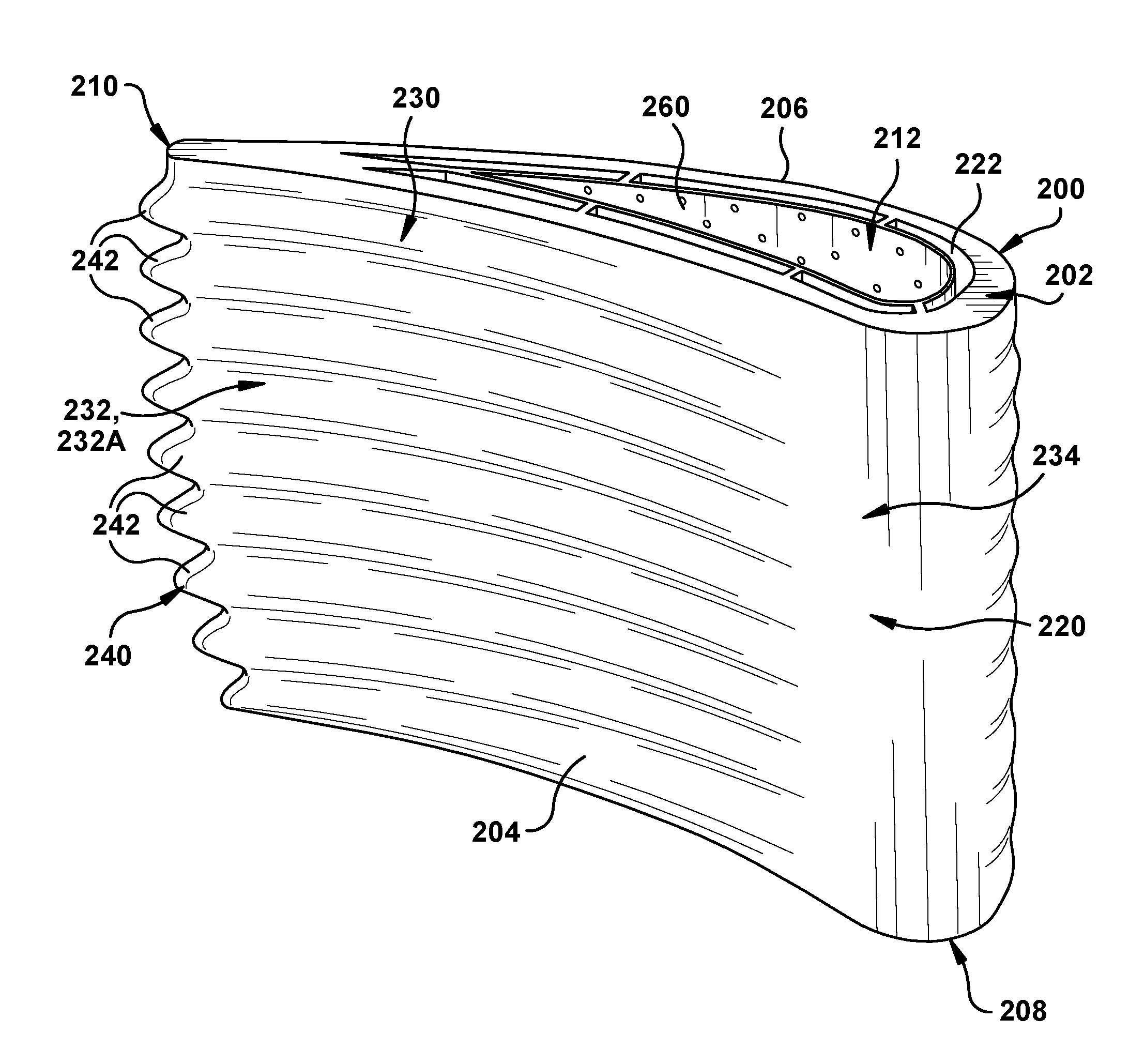

A blade includes an airfoil body defined by a concave pressure side outer wall and a convex suction side outer wall that connect along leading and trailing edges and, therebetween, form a radially extending chamber for receiving the flow of a coolant. The airfoil body has an inner surface facing the radially extending chamber and an outer surface, a first corrugated surface on a portion of the outer surface, and a second corrugated surface on the inner surface paralleling the first corrugated surface. The corrugated surface on the outer surface of the airfoil provides wake mixing. The blade may also include an integrally formed impingement cooling structure having a third corrugated surface parallel to the second corrugated surface, which is made possible through additive manufacturing. The impingement cooling structure so formed provides improved cooling of the blade.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 10 Citation Count
- F01D Class
- 31.14 % this patent is cited more than
- 7 Age
