Selective rotationally aligning indicating mechanism
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 16, 2020
Grant Date -
Jan 25, 2018
app pub date -
Aug 17, 2017
filing date -
Sep 18, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

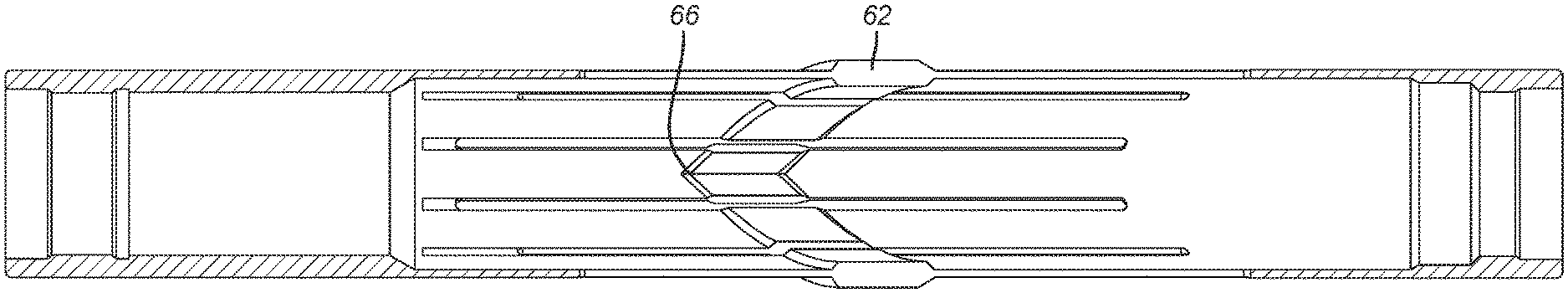

A multi-function tool is connected to an inner string to selectively align a port or ports in the inner string with ports in the outer string at various locations. The tool is locked from functioning at some locations where a locating collet will not selectively engage with an unlocking profile. In this more the tool will pass through the location unhindered. If an unlock profile is engaged the tool is enabled to be unlocked so that manipulation allows a support mandrel to align with collets that have an external V-shaped profile. Setting down weight allows the supported V-shaped profile on the collets engage a similar profile on the outer tubular to rotate, if needed, and to find support on a V-shaped profile on the surrounding tubular for performance of the borehole operation. Thereafter the locating collet engages a locking profile to disable the tool again.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- E21B Class
- 3899 Applications Filed
- 2959 Patents Issued To-Date
- 75.90 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E21B Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 16, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 16, 2031 |
