METHOD FOR CONTROLLING FLOW RATE OF HYDRAULIC PUMP OF CONSTRUCTION MACHINE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jan 8, 2015
filing date -
Jan 8, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

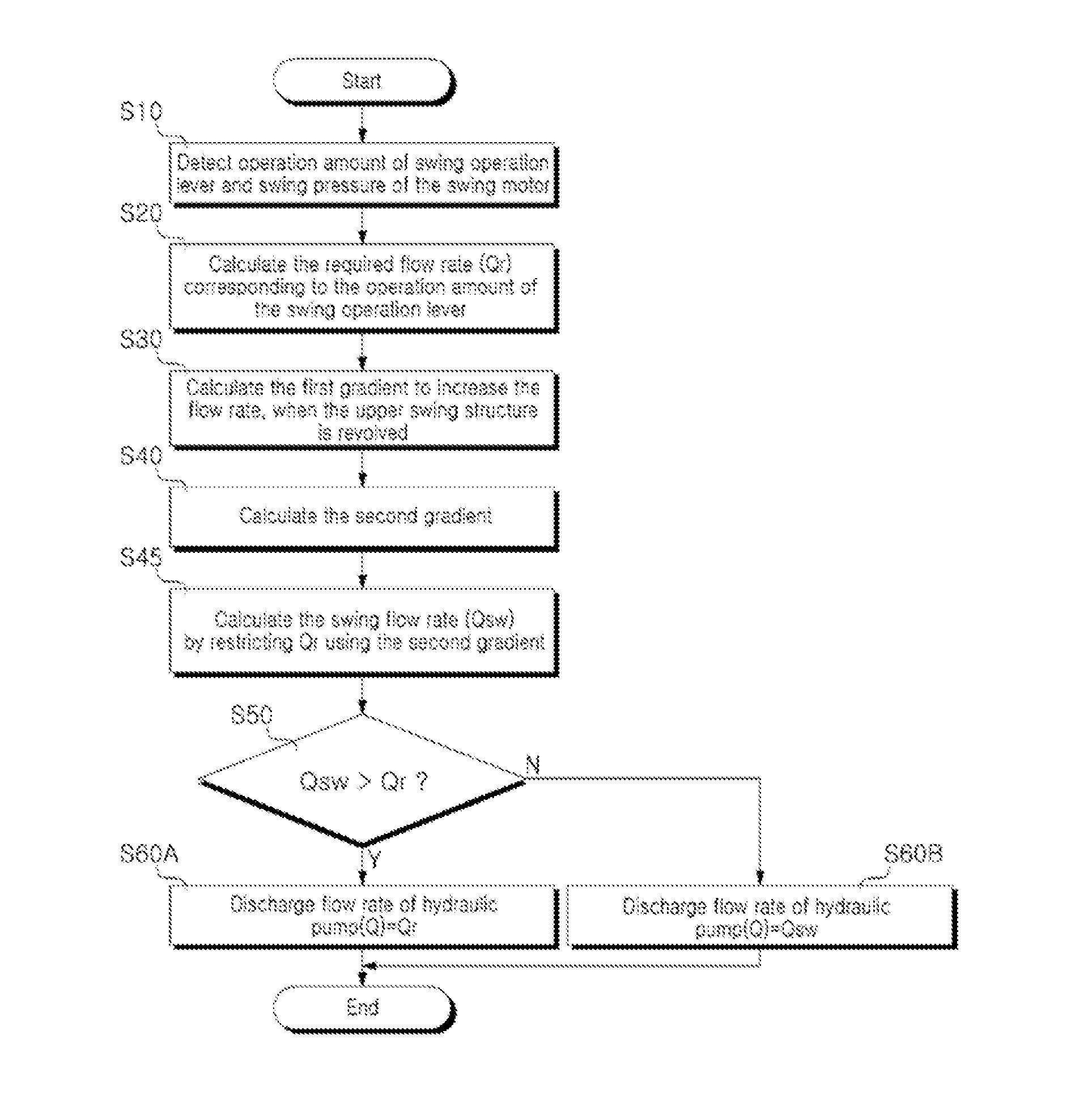

A method is provided for controlling the flow rate of a hydraulic pump of a construction machine, including: a step of detecting the operation amount of a rotation operation lever, and the rotation pressure generated in a swing motor; a step of calculating the flow rate required for rotating, the flow rate corresponding to the operation amount of the rotation operation lever; a step of calculating a rotation acceleration first inclination value for increasing the discharge flow rate of the hydraulic pump to a certain inclination value from a rotation initiation time when the upper rotating body rotates; a step of calculating a second inclination value compensating for the first inclination value by a difference value between the detected rotation pressure value of the swing motor and the reference pressure corresponding to the set pressure of the relief valve of the swing motor; and to step of restricting the discharge flow rate of the hydraulic pump such that the increased amount of the flow rate required for rotating is restricted to the flow rate of the second inclination value.
First Claim
Other Claims data not available
