Inkjet head and inkjet printer
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 11, 2018
Grant Date -
Jan 25, 2018
app pub date -
Mar 22, 2016
filing date -
Mar 27, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

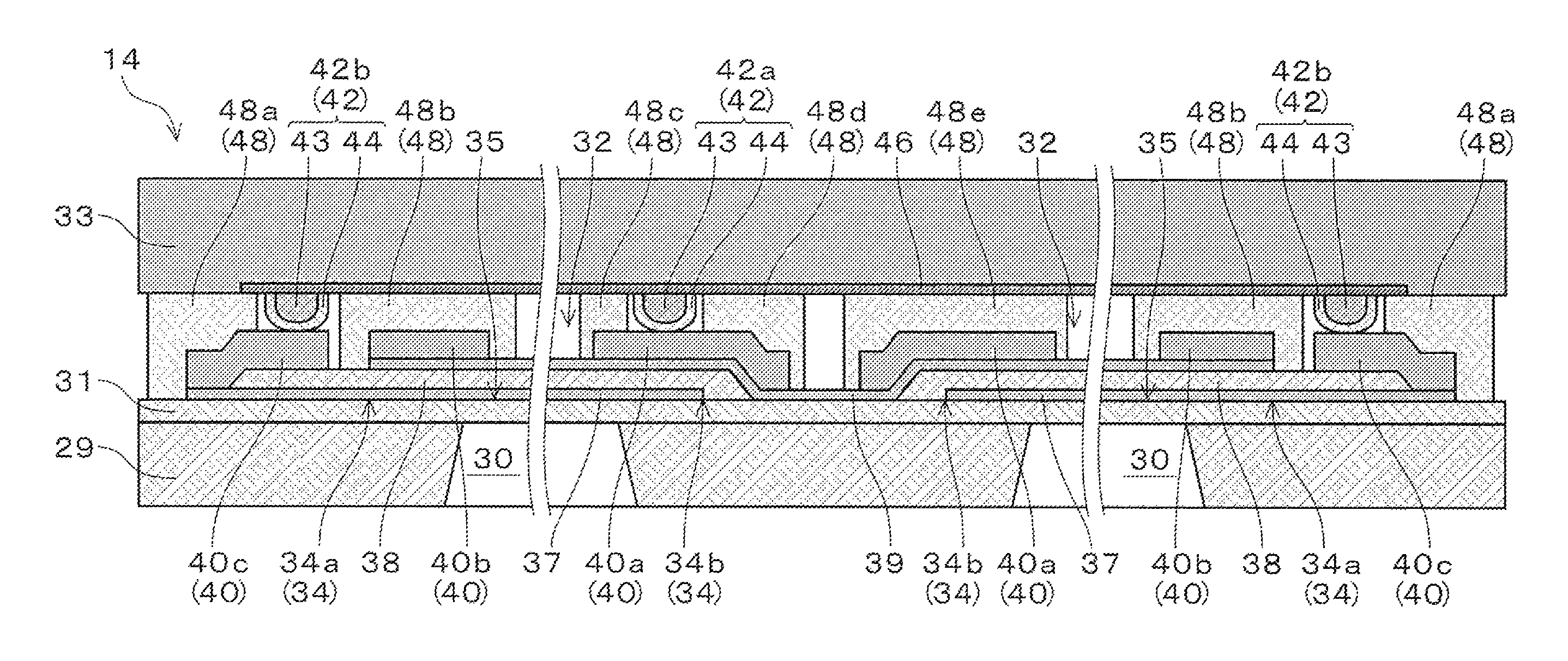

An inkjet head includes: a pressure chamber-forming plate in which a plurality of pressure chambers each communicating with a nozzle are formed in a first direction; a vibration plate that defines one surface of each pressure chamber and allows for deformation of a defining region thereof; a piezoelectric element formed by stacking a first electrode layer, a piezoelectric layer, and a second electrode layer in a region corresponding to the pressure chamber in an order from a surface of the vibration plate, which is opposite to the pressure chamber; a circuit board that is arranged at an interval from the vibration plate, with a plurality of bump electrodes interposed therebetween, and outputs a signal for driving the piezoelectric element; and an adhesive agent that bonds the pressure chamber-forming plate and the circuit board, wherein an element end on at least one side of the piezoelectric element is formed outside of the defining region and covered by the adhesive agent in a second direction orthogonal to the first direction.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B41J Class
- 28.29 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 11, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 11, 2030 |
