Method of manufacturing display device

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 10919211
APP PUB NO 20180022013A1
SERIAL NO

15649124

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

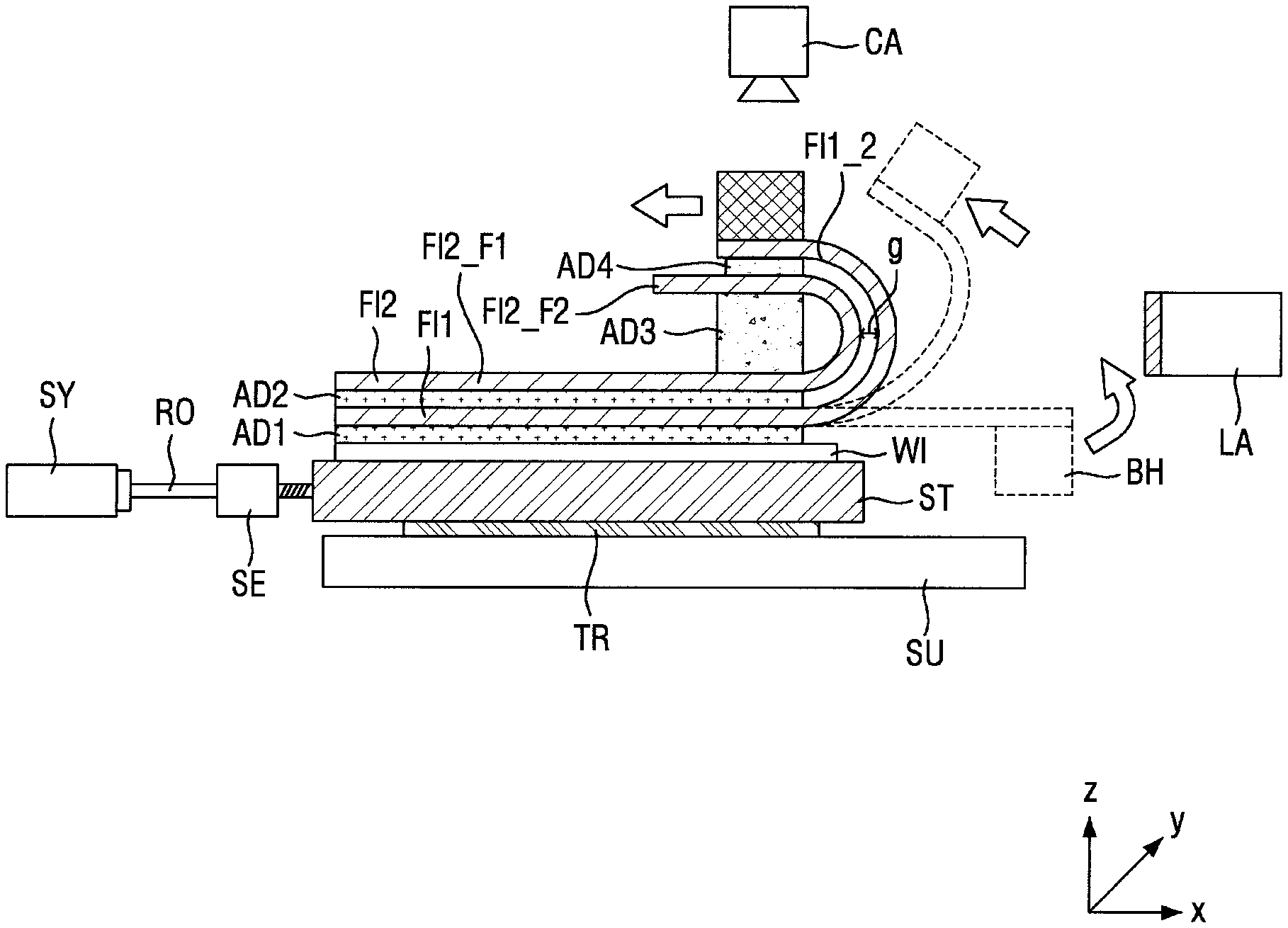

A method of manufacturing a display device includes bending a first film member of a processing object such that a part of one side of the first film member surrounds a part of an outer side of a bending area of a second film member of the processing object while the first film member is laminated on the second film member.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
SAMSUNG DISPLAY CO LTD1 SAMSUNG-RO GIHEUNG-GU YONGIN-SI GYEONGGI-DO 17113

International Classification(s)

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Choi, Myung Gil Yongin-si, KR 13 12
Jang, Sae Sam Cheonan-si, KR 2 10
Lee, Jung Min Suwon-si, KR 172 722
Lee, Sang Moo Anyang-si, KR 38 77

Cited Art Landscape

Load Citation

Patent Citation Ranking

  • 0 Citation Count
  • B29C Class
  • 0 % this patent is cited more than
  • 4 Age
