Ultrasonic sensor and control method therefor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Oct 2, 2017
filing date -
Apr 13, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

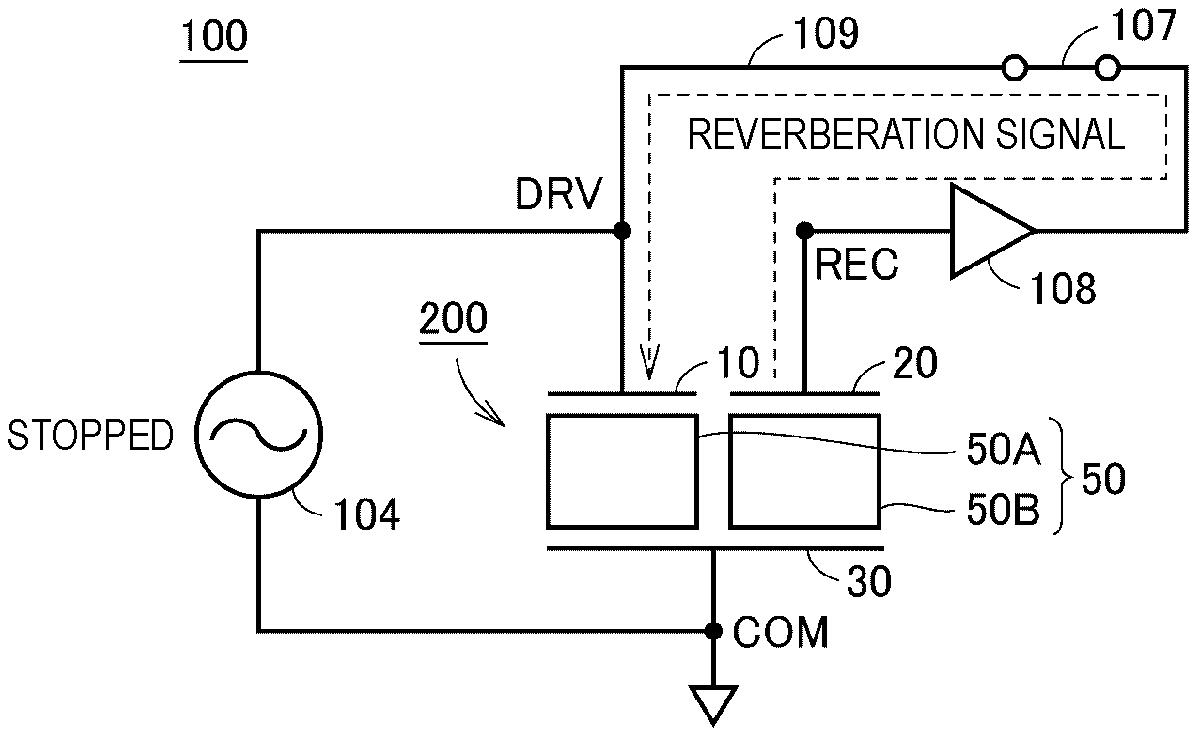

An ultrasonic sensor includes a piezoelectric body including a transmission region for an ultrasonic wave and a reception region for a reflected wave of the ultrasonic wave, a common electrode in the transmission region and the reception region, a transmission electrode in the transmission region, a reception electrode in the reception region; and a semiconductor element that is electrically connected to the transmission electrode and the reception electrode and switches an electrical path between a conductive state and a non-conductive state. The semiconductor element puts the path into the conductive state after application of the alternating-current voltage is stopped. Thus, a reverberation signal, output from the reception region in accordance with a reverberant vibration of the ultrasonic wave, is fed back to the transmission electrode.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| KR | B1 | KR102000608 | Jan 27, 2016 |
| EP | B1 | EP3285086 | Jan 27, 2016 |
| WO | A1 | WO2016167003 | Jan 27, 2016 |
| CN | B | CN107533129 | Jan 27, 2016 |
| JP | B2 | JP6249111 | Jan 27, 2016 |
International Classification(s)
- 2017 Application Filing Year
- G01H Class
- 333 Applications Filed
- 241 Patents Issued To-Date
- 72.38 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01H Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 5, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 5, 2031 |
