Fake head assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 27, 2020
Grant Date -
Jan 25, 2018
app pub date -
Jul 12, 2017
filing date -
Jul 22, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

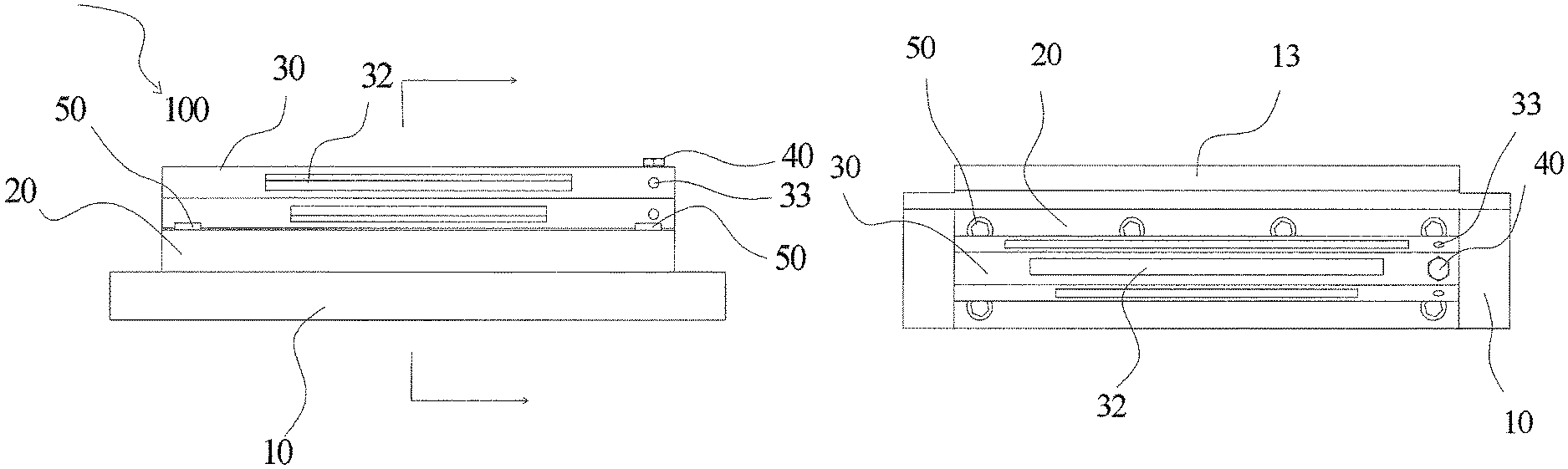

The present disclosure relates a fake head assembly including a fake head body having an engage face, a first vacuum suction hole configured to be connected to an evacuating device to perform an evacuation, an adsorption portion having an adsorption surface, a plurality of first vacuum holes inside the fake head body, each first vacuum hole including a first end on the adsorption surface and a second end on the engage face, the plurality of first vacuum holes being arranged in order in a first direction of the fake head assembly; a shunt device detachably connected to the fake head body, the shunt device having a plurality of evacuating slots which extend in the first direction and have different extension lengths; the first vacuum suction hole being closable by the shunt device and selectively communicated with one evacuating slot, so as to be communicated the second end of at least some of the first vacuum holes via the one evacuating slot; and a connecting device for connecting the shunt device to the engage surface of the fake head body.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B01D Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 27, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 27, 2032 |
