Filtration apparatus for flowable material
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 15, 2020
Grant Date -
Jan 25, 2018
app pub date -
Jul 22, 2016
filing date -
Jul 22, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

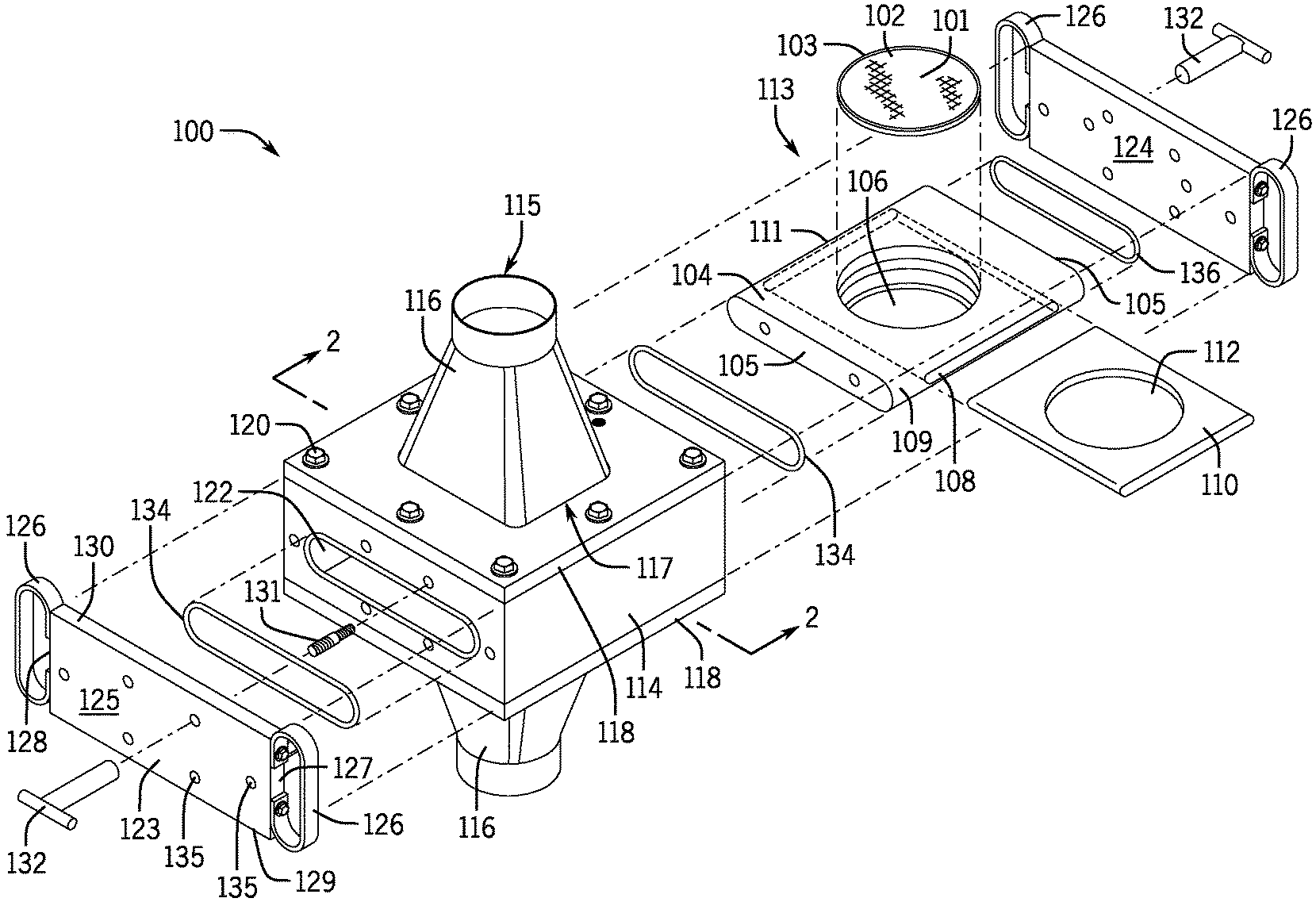

A filtration apparatus includes a screen assembly with a screen having a plurality of through holes, a slidable support to support the screen, and a retainer plate to slidably engage the support for securing the screen between the support and the plate. The support and the plate each define an opening aligned with the plurality of through holes such that a flowable material, such as butter, can pass through the screen. A housing of the filtration apparatus includes a screen assembly receiving portion configured to slidably receive the screen assembly, and a throughput portion for receiving a flowable material that extends through the housing in a direction transverse to the screen assembly receiving portion. A transition couples the housing to a supply line and is for delivering the flowable material to the housing.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2016 Application Filing Year
- A01J Class
- 108 Applications Filed
- 90 Patents Issued To-Date
- 83.34 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- A01J Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 15, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 15, 2032 |
