LOW PROFILE INTRODUCER APPARATUS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Sep 29, 2017
filing date -
May 27, 2005
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

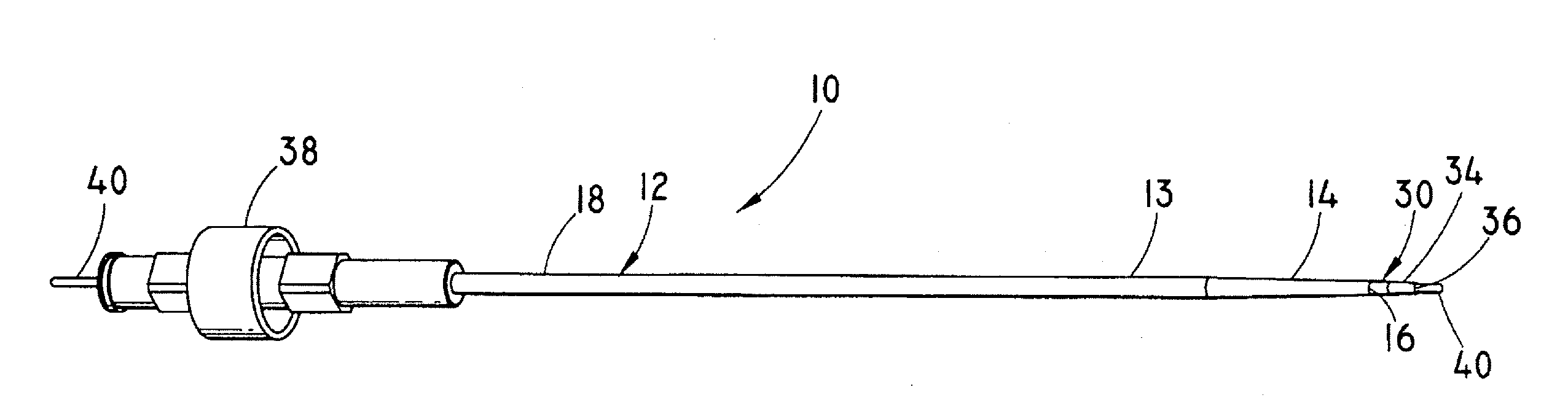

An introducer apparatus includes an outer sleeve and an inner cannula received within the lumen of the outer sleeve. The outer sleeve has a profile such that at least a portion of the distal end of the outer sleeve tapers in the distal direction at an angle not exceeding about 2° relative to a longitudinal axis of the apparatus. The distal open end of the outer sleeve has a wall thickness not exceeding about 0.003 inch. The inner cannula includes a tapered distal end portion. The tapered distal portion of the inner cannula extends distal to the distal open end of the outer sleeve, such that a generally smooth diametrical transition is provided between the outer sleeve tapered portion and the open distal end of the inner cannula.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- A61B Class
- 0 % this patent is cited more than
- 7 Age
